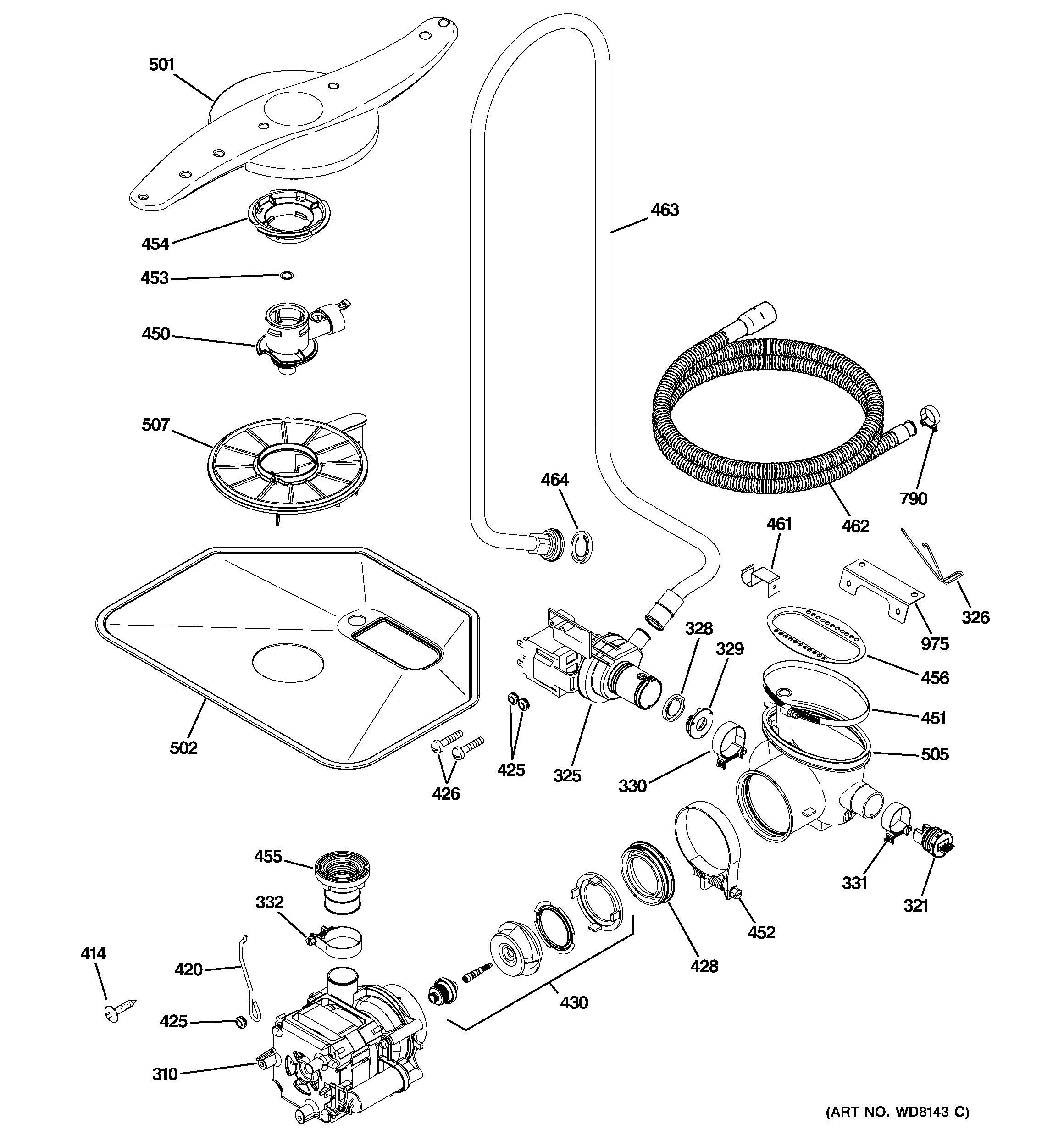

PDW8500J00CC MOTOR-PUMP MECHANISM

PDW8500J00CC MOTOR-PUMP MECHANISM

Written by

in

PDW8500J00CC MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10015 GE Dishwasher Mechanism Assembly
321GEN WD21X10118
325WD26X10016 GE Dishwasher Drain Pump
326GEN WD01X10225
329GEN WD01X10176
330WD01X10103 GE Dishwasher Clamp
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10105 GE Dishwasher Clamp
414WD2X444 GE Dishwasher Mechanical Screw
420WD01X10211 GE Dishwasher Mechanical Hanger Assembly
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
428WD12X10060 GE Dishwasher Suction Ring
430KIT IMPELLER ASM
450GEN WD18X10025
451WD01X10210 GE Dishwasher Sump Clamp
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
456WD01X10219 GE Dishwasher Sump Plate
461GEN WD01X10222
462WD24X10014 GE Dishwasher Drain Hose
463GEN WD24X10025
464GEN WD01X10177
501ARM SPRAY LOW ASM
502FILTER COARSE
505WD18X10026 GE Dishwasher Sump Inlet Assembly
507WD12X10109 GE Dishwasher Fine Filter Assembly
790WD01X10065 GE Dishwasher Hose Clamp
790WH1X2036 GE UNIX Clamp
975GEN WD01X10224
