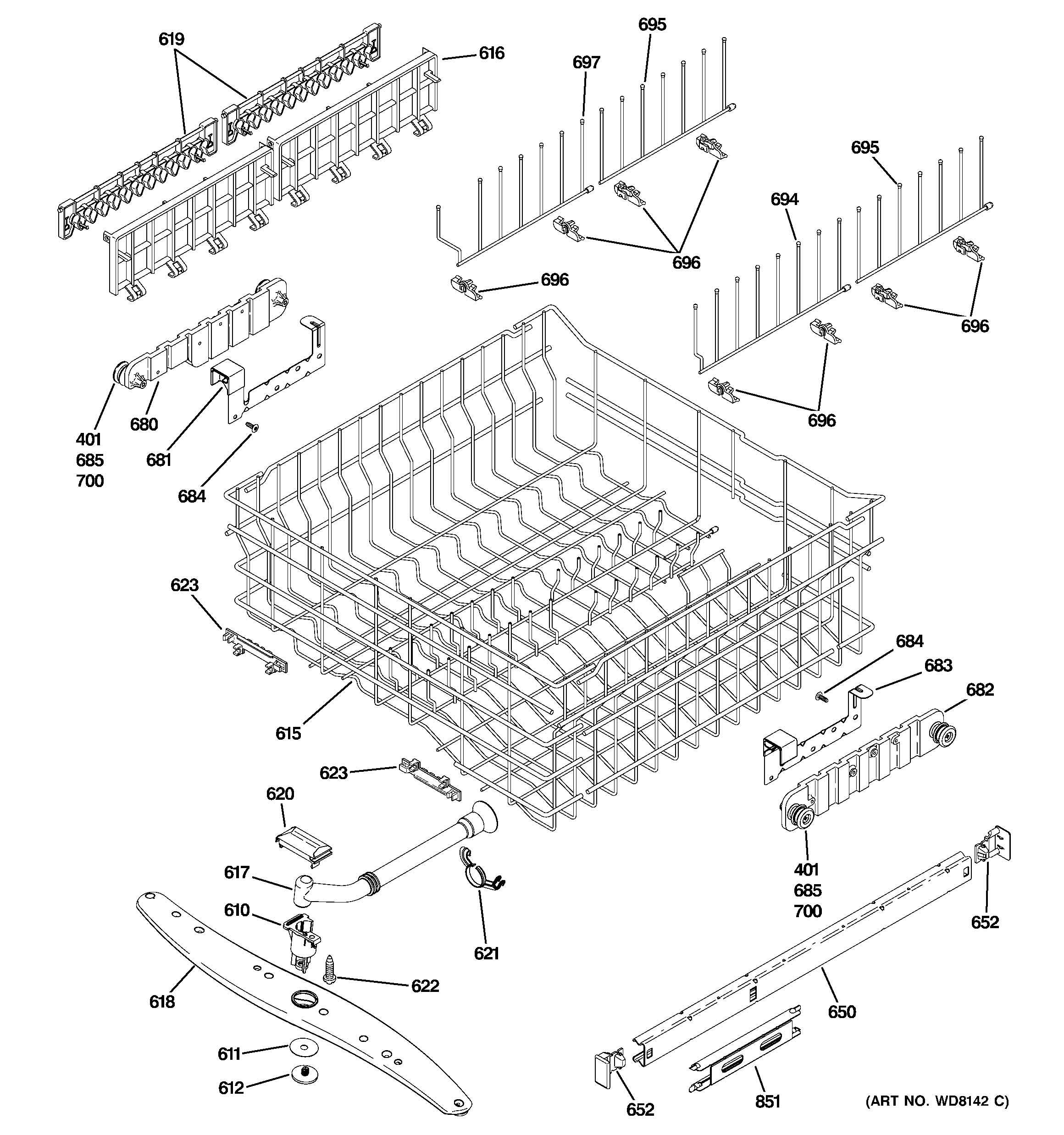

PDW8500J00CC UPPER RACK ASSEMBLY

PDW8500J00CC UPPER RACK ASSEMBLY

Written by

in

PDW8500J00CC UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610GEN WD12X10115
611GEN WD01X10108
612GEN WD01X10208
615WD28X10410 GE Dishwasher Upper Dishrack Assembly
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
617WD12X10145 GE Dishwasher Mid Spray Conduit
618GEN WD22X10036
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623WD12X10137 GE Dishwasher Finger Indexer Right Hand
623WD12X10120 GE Dishwasher Finger Indexer Left Hand
650GEN WD30X10021
652SLIDE END CAP
681GEN WD01X10228
683GEN WD01X10227
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
685GEN WD02X10112
694GEN WD28X10118
695GEN WD28X10119
696WD12X10116 GE Dishwasher Retainer Comb
696WD12X10118 GE Dishwasher Retainer Comb
697GEN WD28X10135
700GEN WD12X10138
851CAGE ROLLER BEARING ASSMBLY
