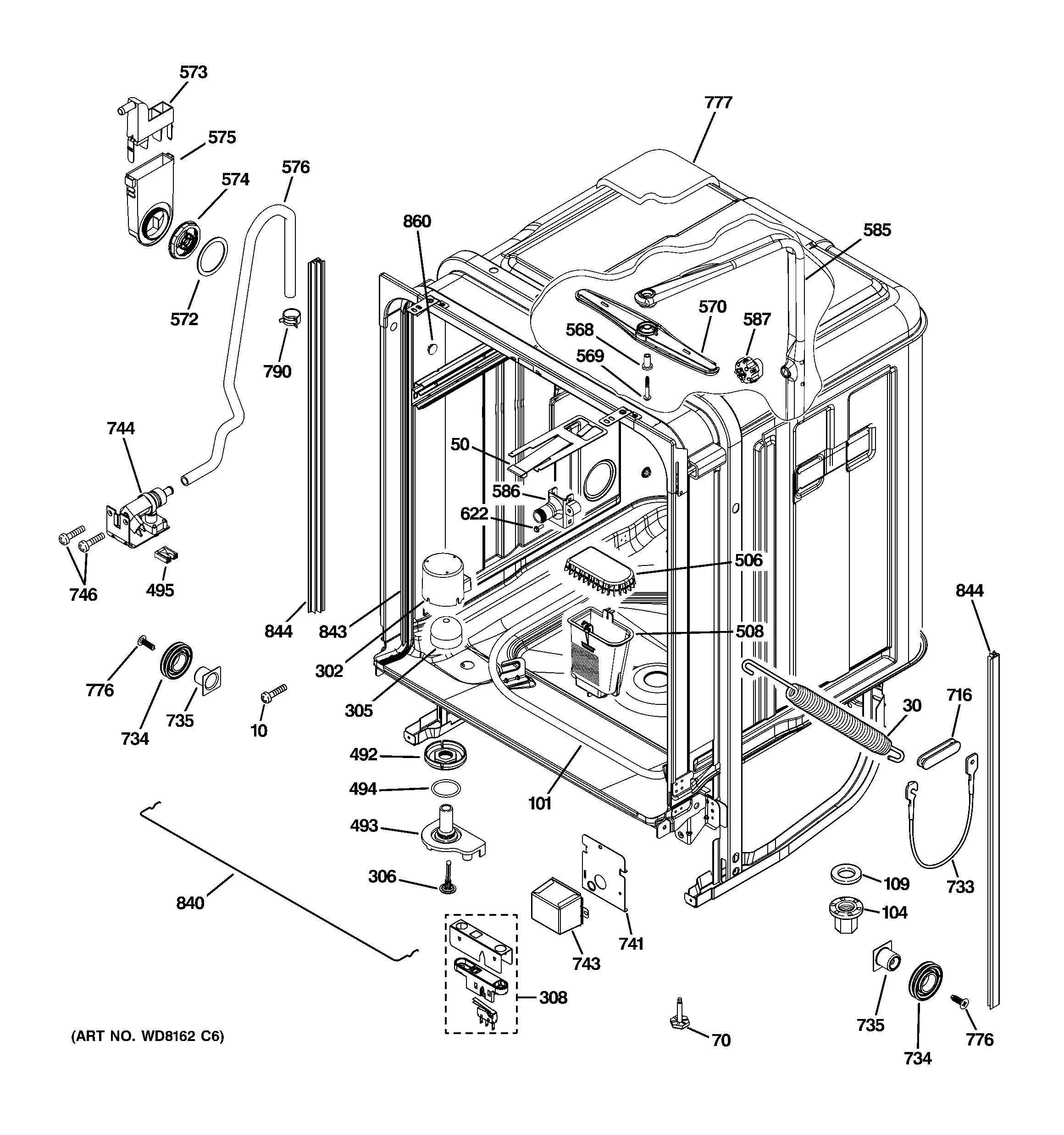

PDW8500J03CC BODY PARTS

PDW8500J03CC BODY PARTS

Written by

in

PDW8500J03CC BODY PARTS

Products

PositionProduct
10WR01X10065 GE Screw
30SPRING DOOR
50WD13X10018 GE Dishwasher Latch Keeper Assembly
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10005
104WD01X10214 GE Dishwasher Nut Tower Heater Assembly
109GEN WD01X10094
302WD12X10119 GE Dishwasher Dome Float
305WD12X10047 GE Dishwasher Float
306WD12X10048 GE Dishwasher Float Stem Assembly
308GEN WD21X10168
492GEN WD12X10135
493GEN WD12X10183
494WD01X10264 GE Flood Switch Seal
495WD21X10356 GE Dishwasher Housing SPECIAL-Drain Solen
506WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
568WD01X10410 GE Dishwasher Spray Arm Bearing Assembly
569WD02X10109 GE Dishwasher 8-32 HXW Stainless Steel Screw
570GEN WD22X10037
572GEN WD08X10044
573WD12X10129 GE Dishwasher Water Inlet Cover
574GEN WD01X10220
575WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10024 GE Dishwasher Hose
585GEN WD12X10113
586CONE DOCKING
587GEN WD12X10134
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
716WD14X10009 GE Dishwasher Hinge Link Arm
733CABLE ASM
734PULLEY HINGE
735WD01X10218 GE Dishwasher Cup Hinge
741WD12X10124 GE Bracket Junction Box
743WD12X448 GE Dishwasher Junction Box
744WD15X10004 GE Dishwasher Water Valve
746WD2X248 GE Dishwasher Screw
776GEN WZ05X0222
777GEN WD01X10234
790WD01X10065 GE Dishwasher Hose Clamp
790WH1X2036 GE UNIX Clamp
840GEN WD03X10020
843WD08X10032 GE Dishwasher Tub Seal Gasket
844WD08X10055 GE Dishwasher Trim Gasket
860GEN WD01X10223
