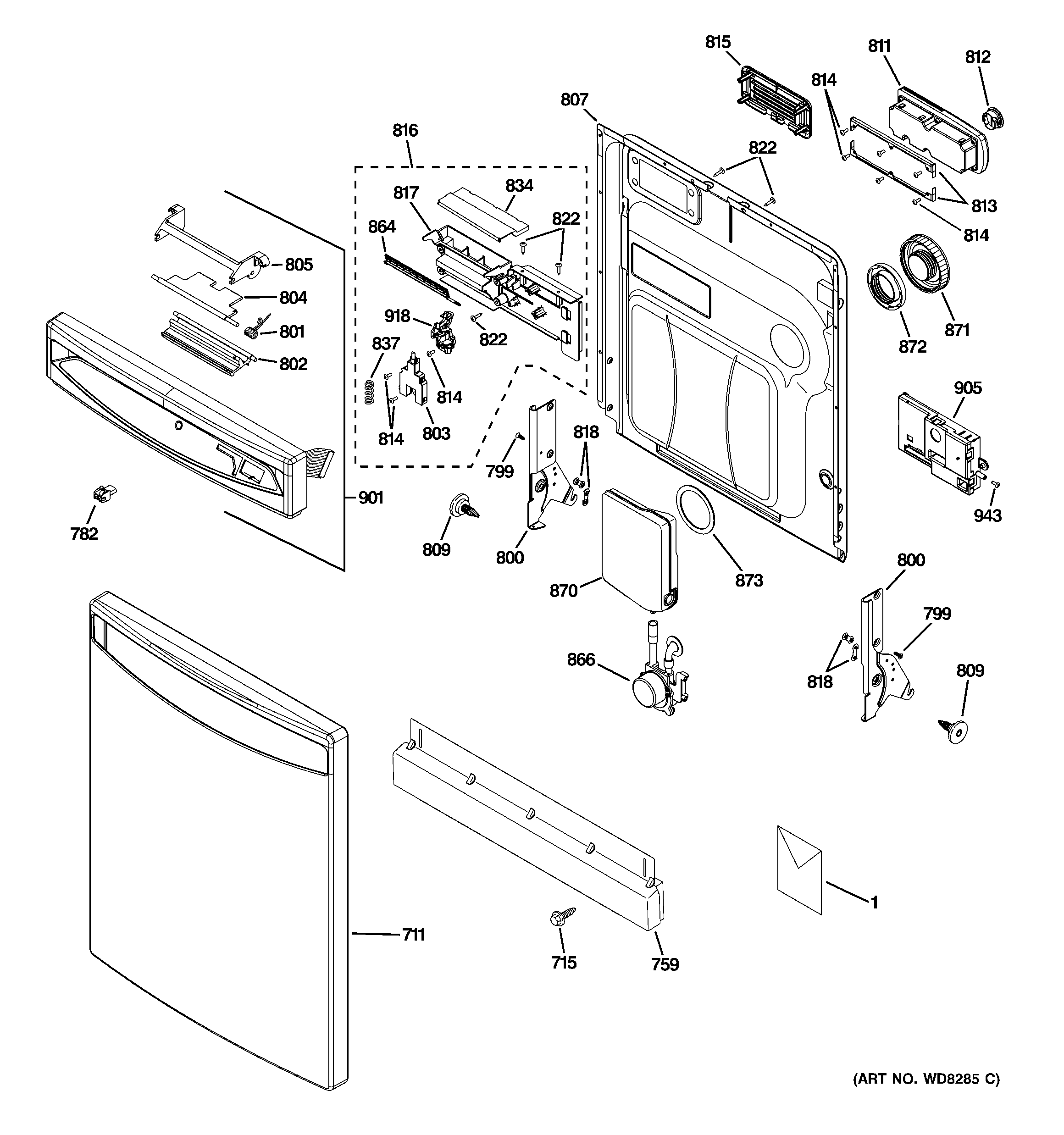

PDW8680N00SS ESCUTCHEON & DOOR ASSEMBLY

PDW8680N00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW8680N00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30233
1GEN 49-55036
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30483
711GEN WD35X10049
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759WD27X10177 GE Dishwasher Toe Kick Assembly
782WB17X5060 GE Oven Block Assembly
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
801WR02X10585 SPRING RECES
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10017
807GEN WD31X10087
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10140
817GEN WD12X10273
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
834GEN WD12X10274
837WD03X10026 GE Dishwasher Spring Plunger
864WD12X10044 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870BOTTLE DETERGENT ASM
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
901GEN WD34X11216
905GEN WD21X10253
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
