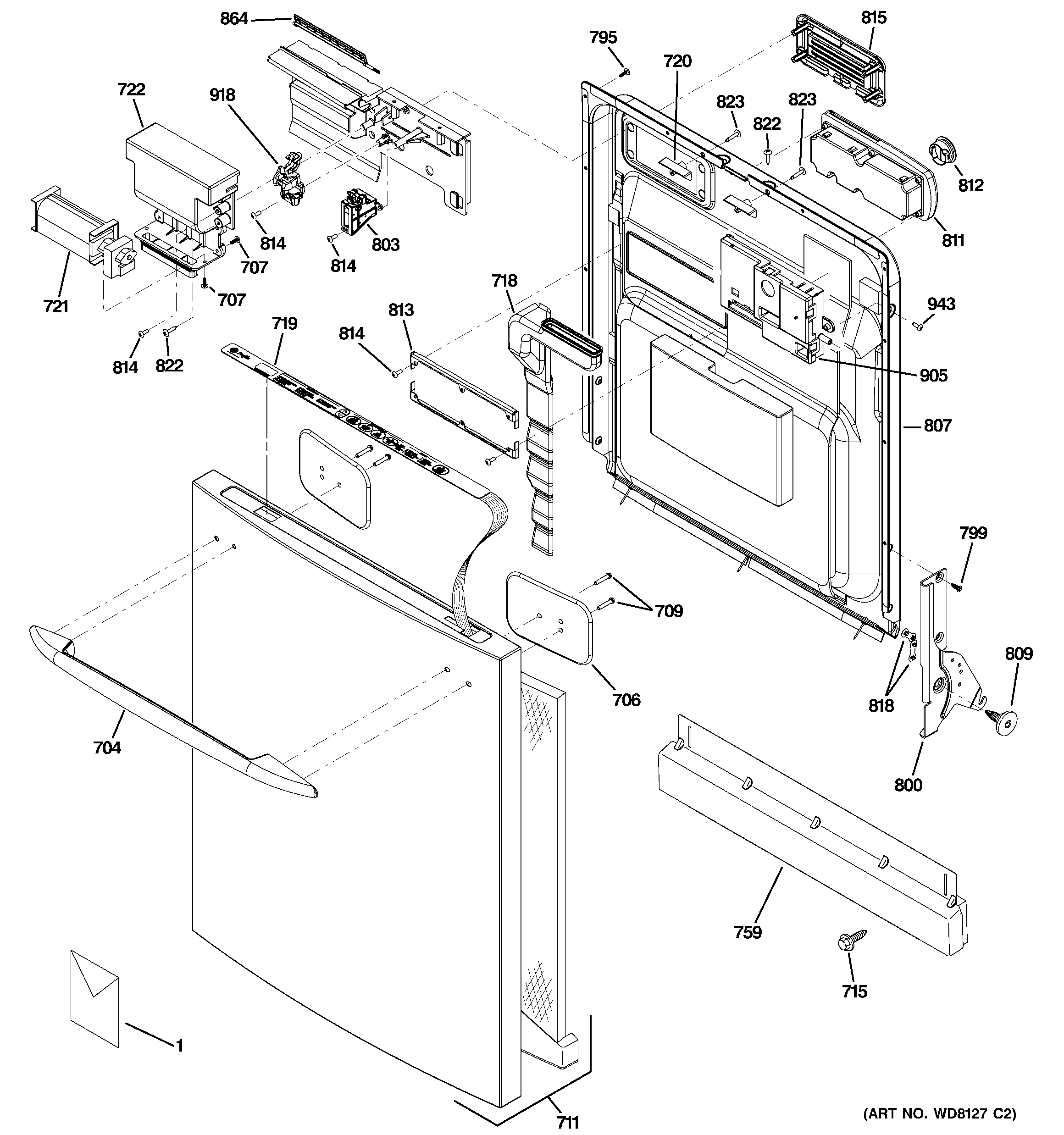

PDW9200J00CC ESCUTCHEON & DOOR ASSEMBLY

PDW9200J00CC ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW9200J00CC ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30446
1GEN 31-30561
1GEN 49-5948
704GEN WD13X10024
706GEN WD12X10156
707GEN WD02X10116
709WB01T10066 GE Oven Screw 10-16 XC02
711GEN WD34X10919
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
718GEN WD12X10157
719GEN WD34X10916
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759TOEKICK ASM CC
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10067
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
823WD2X322 GE Dishwasher Screw 8-18 x 7/8
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10187 GE Dishwasher Control Board Module Assembly
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
