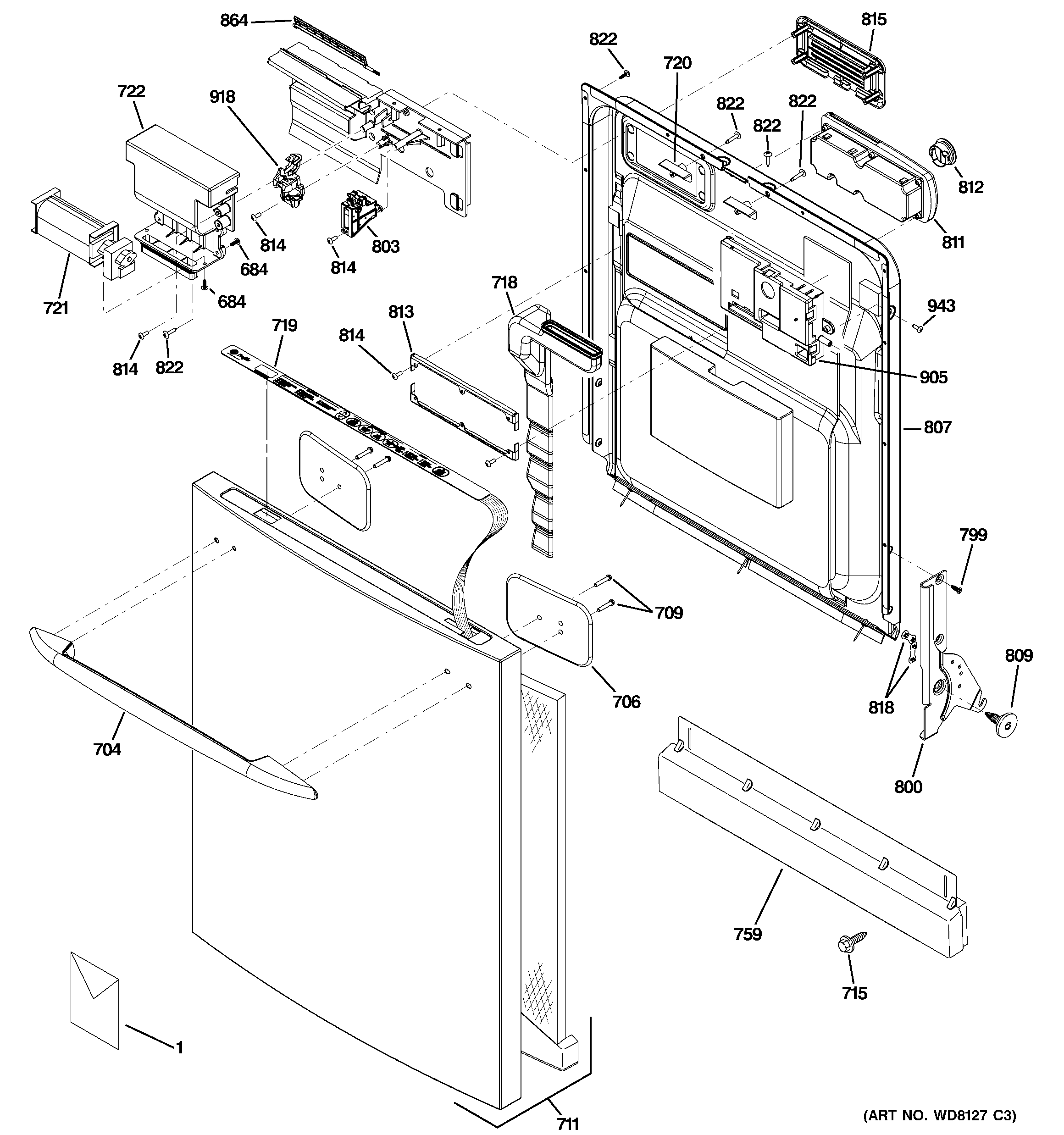

PDW9200J03BB ESCUTCHEON & DOOR ASSEMBLY

PDW9200J03BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDW9200J03BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30580
1GEN 49-5948
1GEN 31-30465
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
704GEN WD13X10023
706GEN WD12X10156
709WB01T10066 GE Oven Screw 10-16 XC02
711GEN WD34X11071
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10157
719WD34X11070 GE Dishwasher Keypad
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759WD27X10177 GE Dishwasher Toe Kick Assembly
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10067
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10216 GE Dishwasher Module Control Assembly
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
