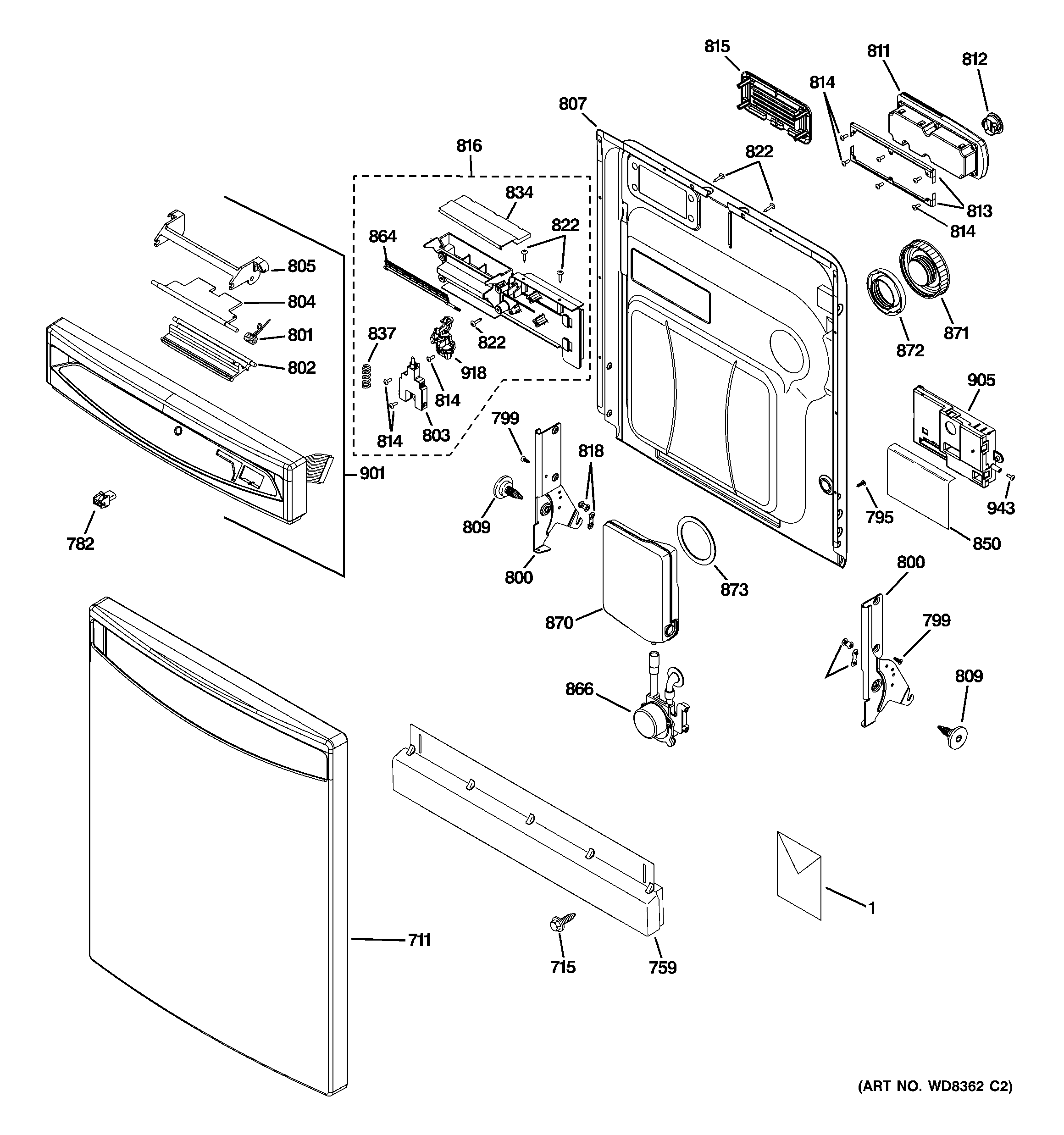

PDWF680R30SS ESCUTCHEON & DOOR ASSEMBLY

PDWF680R30SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWF680R30SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30617-2
1GEN 31-30260
1GEN 49-55065-1
711DOOR OUTER TOX ASM
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759WD27X10177 GE Dishwasher Toe Kick Assembly
782WB17X5060 GE Oven Block Assembly
795WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
801WR02X10585 SPRING RECES
802GEN WD13X10054
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10017
807GEN WD31X10137
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10140
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
834GEN WD12X10274
837WD03X10026 GE Dishwasher Spring Plunger
850WD01X10635 GE Dishwasher Control Shield
864WD12X10044 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870GEN WD35X10375
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
901GEN WD34X11618
905GEN WD21X10405
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
