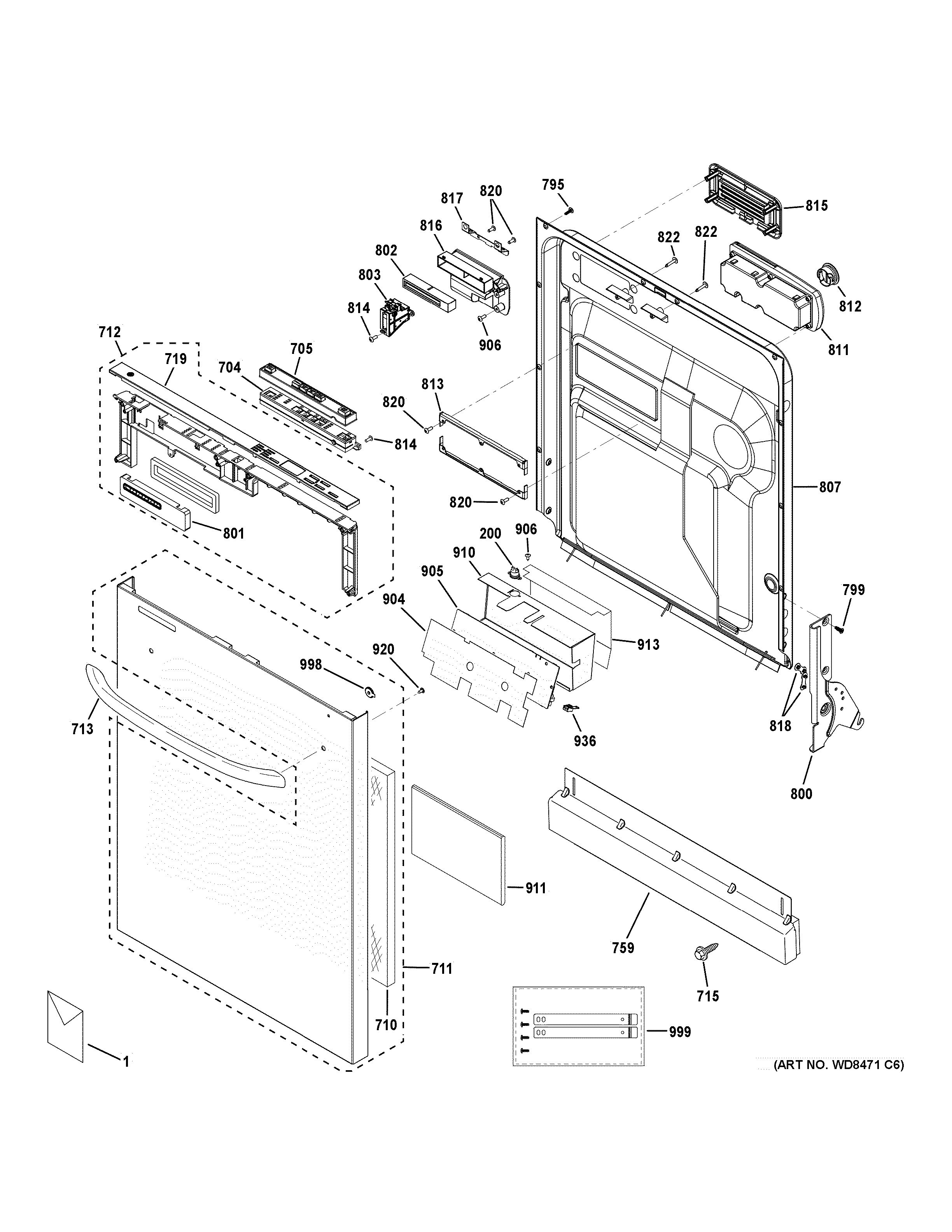

PDWT100V00BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T13:12:30+00:00PDWT100V00BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM INSTALL INSTRUCTIONS1PM MANUAL USE & CARE1PM MINI MANUAL200TCO ASSEMBLY704TACTILE ASM HOUSING705BUTTON ASM SILICON PRO710GEN WD01X10514711OUTER PANEL AND LENS ASM712CONSOLE ASM KIT713HANDLE ASM PAINTED BB715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N719WD27X10292 GE Dishwasher Console Assembly759WD27X10177 GE Dishwasher Toe Kick Assembly795SCR 8-18 AB OV .655799SCR 10-24 TAP RNP 1/2800GEN WD14X10047800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly801GEN WD01X10518802FOAM VENT803LATCH ASM - 1 SWITCH807DOOR INNER & GASKET811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser812WD12X10122 GE Dishwasher Dispenser Cap813WD01X10207 GE Dishwasher Bracket Detergent Display814GEN WD02X10104815WD12X10127 GE Dishwasher Vent Cover816VENT ASM817BRACKET SUPPORT LATCH818WD12X10313 GE Dishwasher Hinge Arm Bearing820WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL822SCR 8-18 AB OV 1.405904HEAT SHIELD905CONTROL TACTILE ASM KIT906WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw910SHIELD BOARD TOP911GEN WD01X10344913WD01X10635 GE Dishwasher Control Shield920SCR 10-24 UNC HXP 1S ZN936WD21X10464 GE Dishwasher Model Selector Plug Assembly998GEN WD01X10561999WD35X10372 GE Dishwasher Bag and Bracket Assembly
