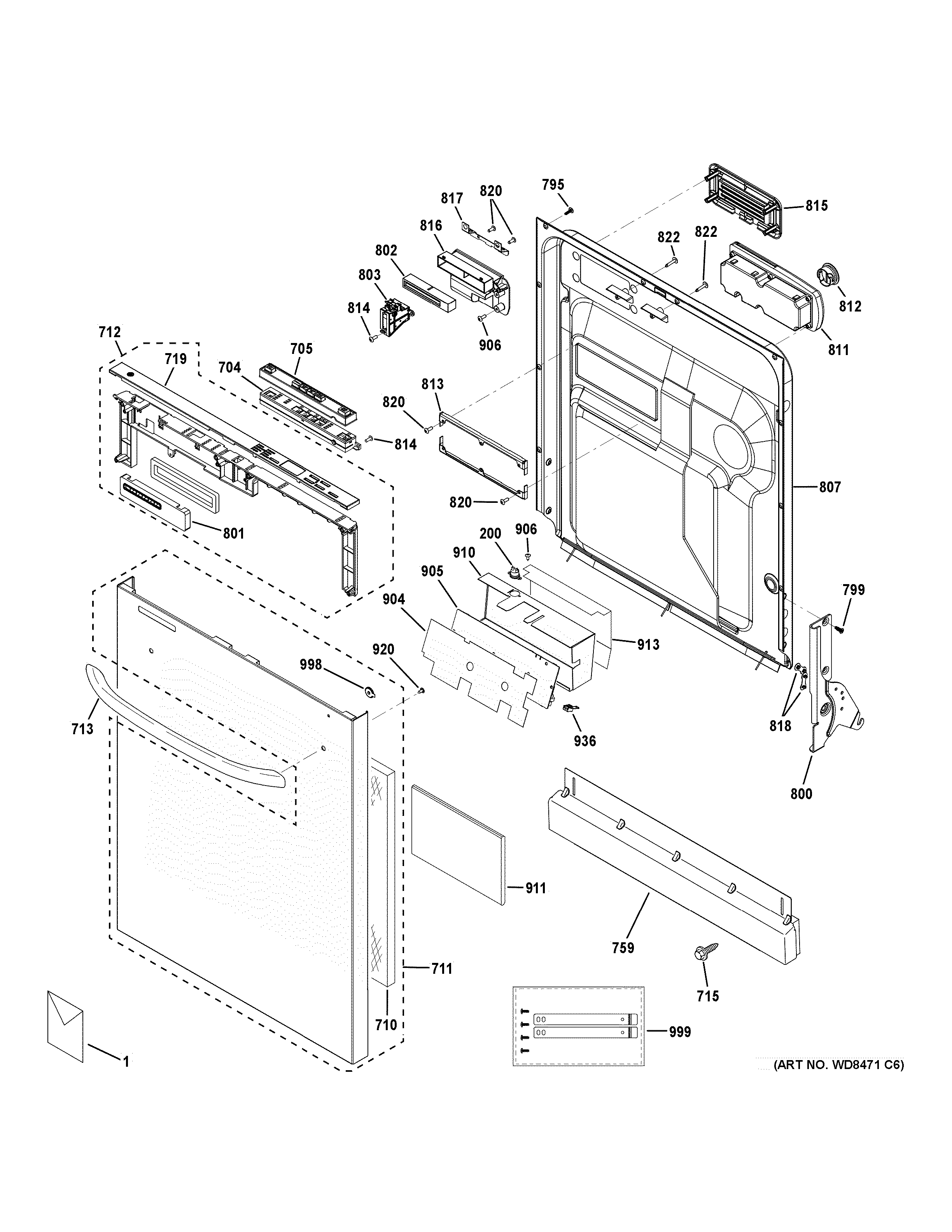

PDWT100V50BB ESCUTCHEON & DOOR ASSEMBLY

PDWT100V50BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWT100V50BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL
1PM MANUAL USE & CARE
200TCO ASSEMBLY
704TACTILE ASM HOUSING
705BUTTON ASM SILICON PRO
710GEN WD01X10514
711OUTER PANEL AND LENS ASM
712CONSOLE ASM KIT
713HANDLE ASM PAINTED BB
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719WD27X10292 GE Dishwasher Console Assembly
759WD27X10177 GE Dishwasher Toe Kick Assembly
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800GEN WD14X10040
800GEN WD14X10041
801GEN WD01X10518
802FOAM VENT
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
817BRACKET SUPPORT LATCH
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
822SCR 8-18 AB OV 1.405
904HEAT SHIELD
905CONTROL TACTILE ASM KIT
906WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
910SHIELD BOARD TOP
911GEN WD01X10344
913WD01X10635 GE Dishwasher Control Shield
920SCR 10-24 UNC HXP 1S ZN
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
998GEN WD01X10561
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
