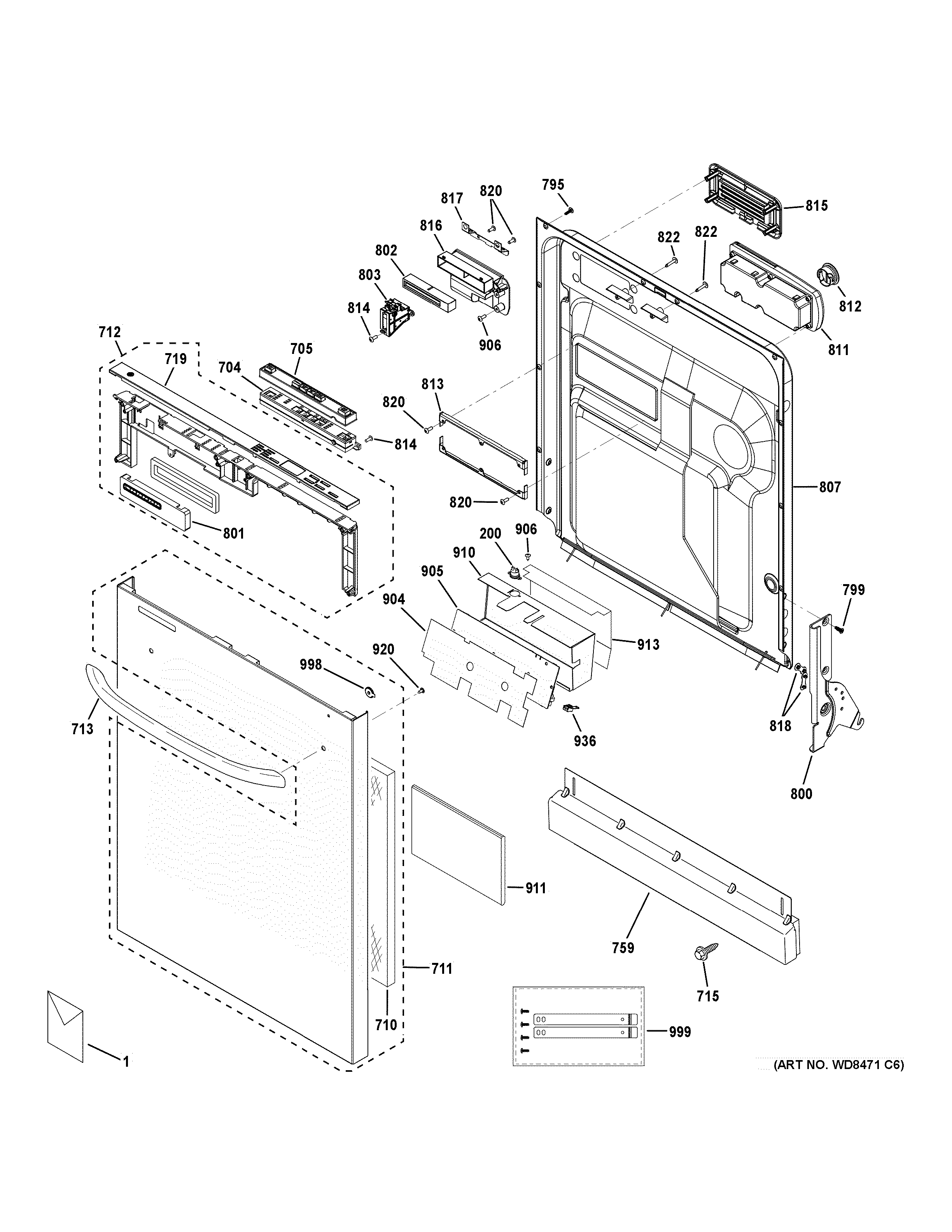

PDWT100V50WW ESCUTCHEON & DOOR ASSEMBLY

Products

Position	Product
1	PM MANUAL USE & CARE
1	PM INSTALL INSTRUCTIONS
1	PM MINI MANUAL
200	TCO ASSEMBLY
704	TACTILE ASM HOUSING
705	BUTTON ASM SILICON WW
710	GEN WD01X10514
711	PANEL FRONT FINISHED
712	CONSOLE ASM KIT
713	HANDLE ASM PAINTED
715	WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719	CONSOLE ASM WW
759	GEN WD27X10168
795	SCR 8-18 AB OV .655
799	SCR 10-24 TAP RNP 1/2
800	GEN WD14X10041
800	GEN WD14X10040
801	GEN WD01X10526
802	GEN WD01X10609
803	LATCH ASM - 1 SWITCH
807	DOOR INNER & GASKET
811	WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812	WD12X10122 GE Dishwasher Dispenser Cap
813	WD01X10207 GE Dishwasher Bracket Detergent Display
814	GEN WD02X10104
815	WD12X10127 GE Dishwasher Vent Cover
816	VENT ASM
817	BRACKET SUPPORT LATCH
818	WD12X10313 GE Dishwasher Hinge Arm Bearing
820	WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
822	SCR 8-18 AB OV 1.405
904	HEAT SHIELD
905	CONTROL TACTILE ASM KIT
906	WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
910	SHIELD BOARD TOP
911	GEN WD01X10344
913	WD01X10635 GE Dishwasher Control Shield
920	SCR 10-24 UNC HXP 1S ZN
936	WD21X10464 GE Dishwasher Model Selector Plug Assembly
998	GEN WD01X10560
999	WD35X10372 GE Dishwasher Bag and Bracket Assembly
