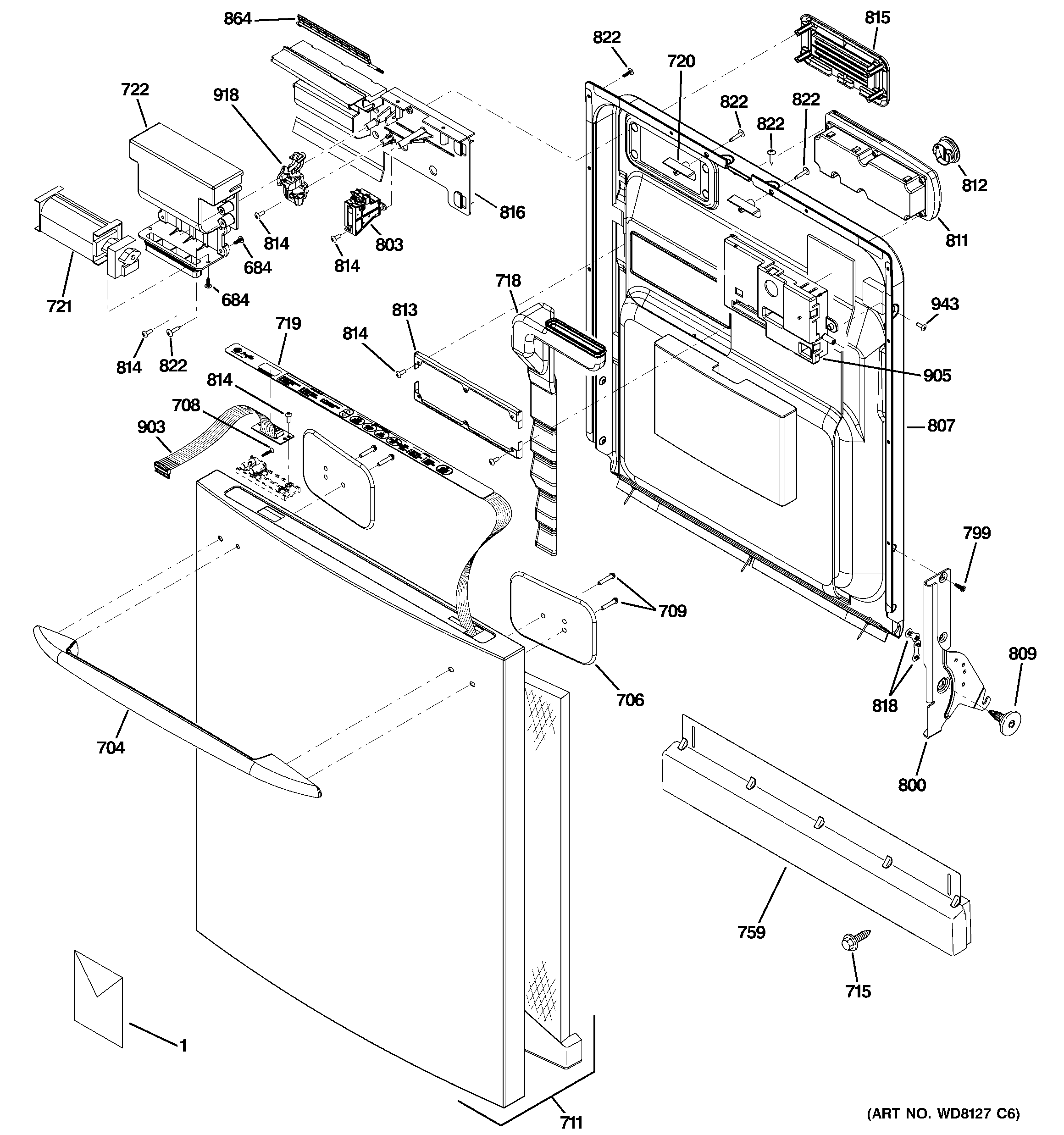

PDWT200P00BB ESCUTCHEON & DOOR ASSEMBLY

PDWT200P00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWT200P00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55047
1GEN 31-30473
1GEN 31-30245
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
704GEN WD13X10025
704GEN WD13X10023
706GEN WD12X10283
708WD02X10115 GE Screw 6-19 Flp 3/4 S
709WB01T10066 GE Oven Screw 10-16 XC02
711GEN WD34X11225
711GEN WD34X11226
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
718GEN WD12X10190
719GEN WD34X11229
719WD34X11228 GE Dishwasher Keypad
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759GEN WD27X10207
759WD27X10206 GE Dishwasher Toekick Assembly
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10067
809GEN WD02X10150
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10254
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
903GEN WD21X10255
905WD21X10367 GE Dishwasher Control Module Assembly
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
