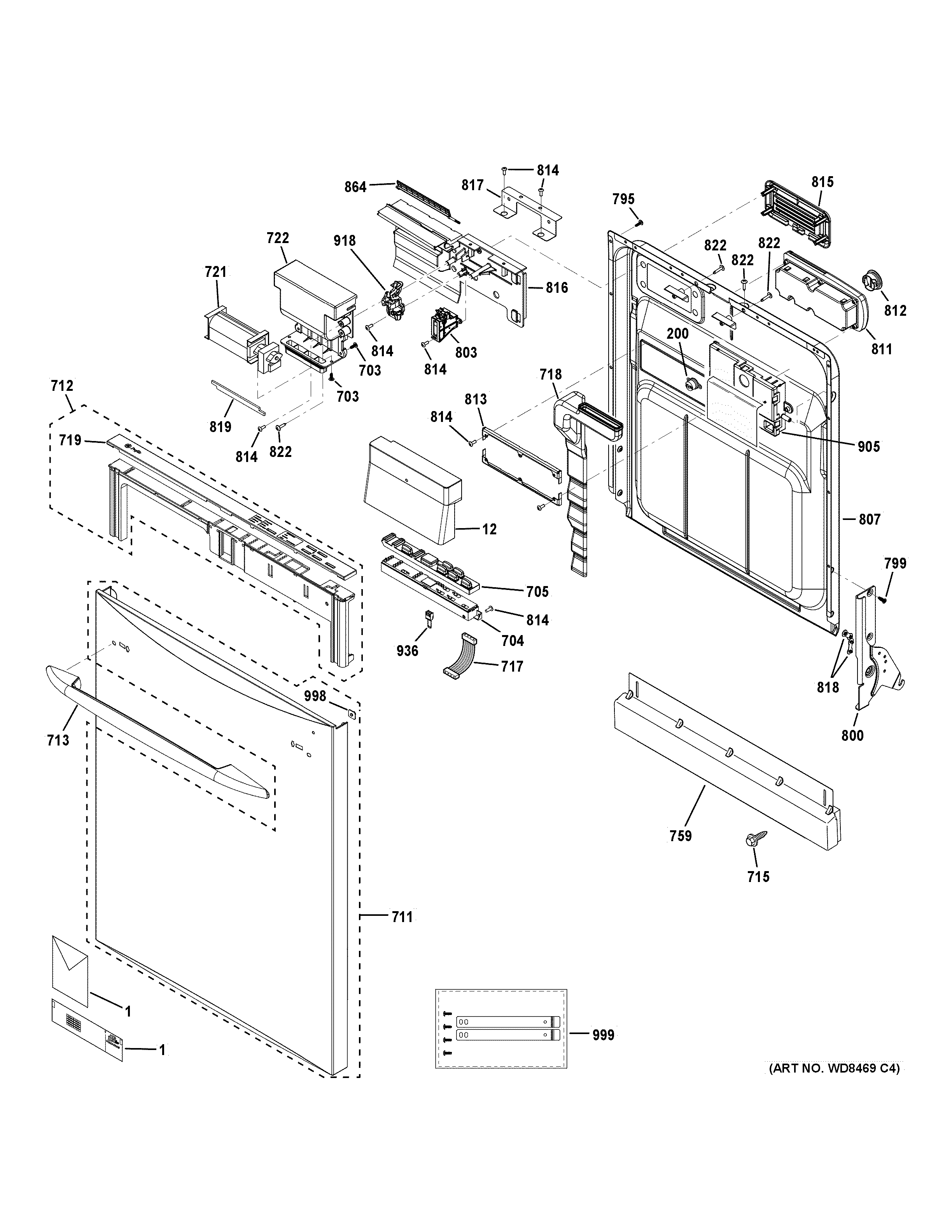

PDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

PDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM SHEET MINI MANUAL
1WD01X10295 GE Dishwasher Hardness Tester Strip
1PM MANUAL USE & CARE
1PM INSTALL INSTRUCTIONS
12BOARD CNTRL SHIELD
200WD01X10547 GE Dishwasher TCO Kit Assembly
703WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
704TACTILE ASM HOUSING
705BUTTON ASM SILICONE
711PANEL ASM OUTER
712SEVICE KIT FOR FFF-SS
713HANDLE ASM SS DOOR
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719CONSOLE COVER ASM
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759TOEKICK ASM
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
819GASKET CONDUIT
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936WD21X10485 GE Selector Plug Assembly Model
998LENS INDICATOR
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
