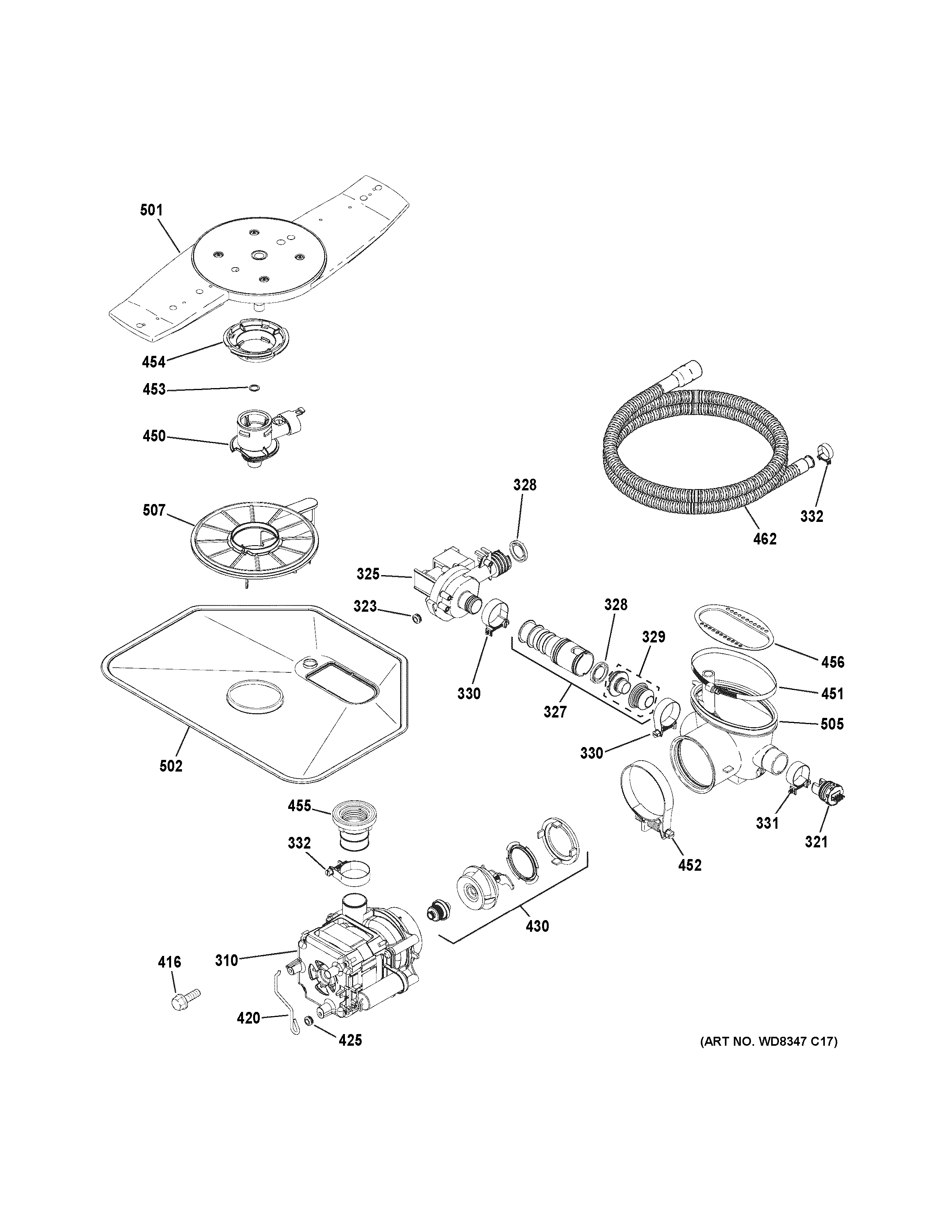

PDWT302V00II MOTOR-PUMP MECHANISMadmin2025-04-26T12:55:21+00:00PDWT302V00II MOTOR-PUMP MECHANISM ProductsPositionProduct310WD26X10053 GE Dishwasher Pump and Motor Assembly321GEN WD21X10272323WD01X10269 GE Dishwasher Grommet327PUMP DRAIN ASM328WD01X10406 GE Dishwasher Valve Flapper Dual Pump329GEN WD01X10405330WD01X10105 GE Dishwasher Clamp331WD01X10104 GE Dishwasher Hose Clamp332WD01X10103 GE Dishwasher Clamp416WD02X10208 GE Screw 10-32 TTT Hex 7/16420WD01X10211 GE Dishwasher Mechanical Hanger Assembly425WD01X10101 GE Dishwasher Pump Grommet430WD19X10038 GE Dishwasher Impeller Kit450HUB VENTURI ASM451WD01X10210 GE Dishwasher Sump Clamp452WD1X1392 GE Dishwasher Sump Clamp453GEN WD01X10107454WD12X10061 GE Arm Retainer Nut455WD18X10010 GE Dishwasher Pump Connector Assembly456WD01X10219 GE Dishwasher Sump Plate462WD24X10045 GE Dishwasher Drain Tube Assembly501WD22X10062 GE Dishwasher Arm Spray Low Assembly502FILTER COARSE505WD18X10026 GE Dishwasher Sump Inlet Assembly507WD12X10109 GE Dishwasher Fine Filter Assembly
