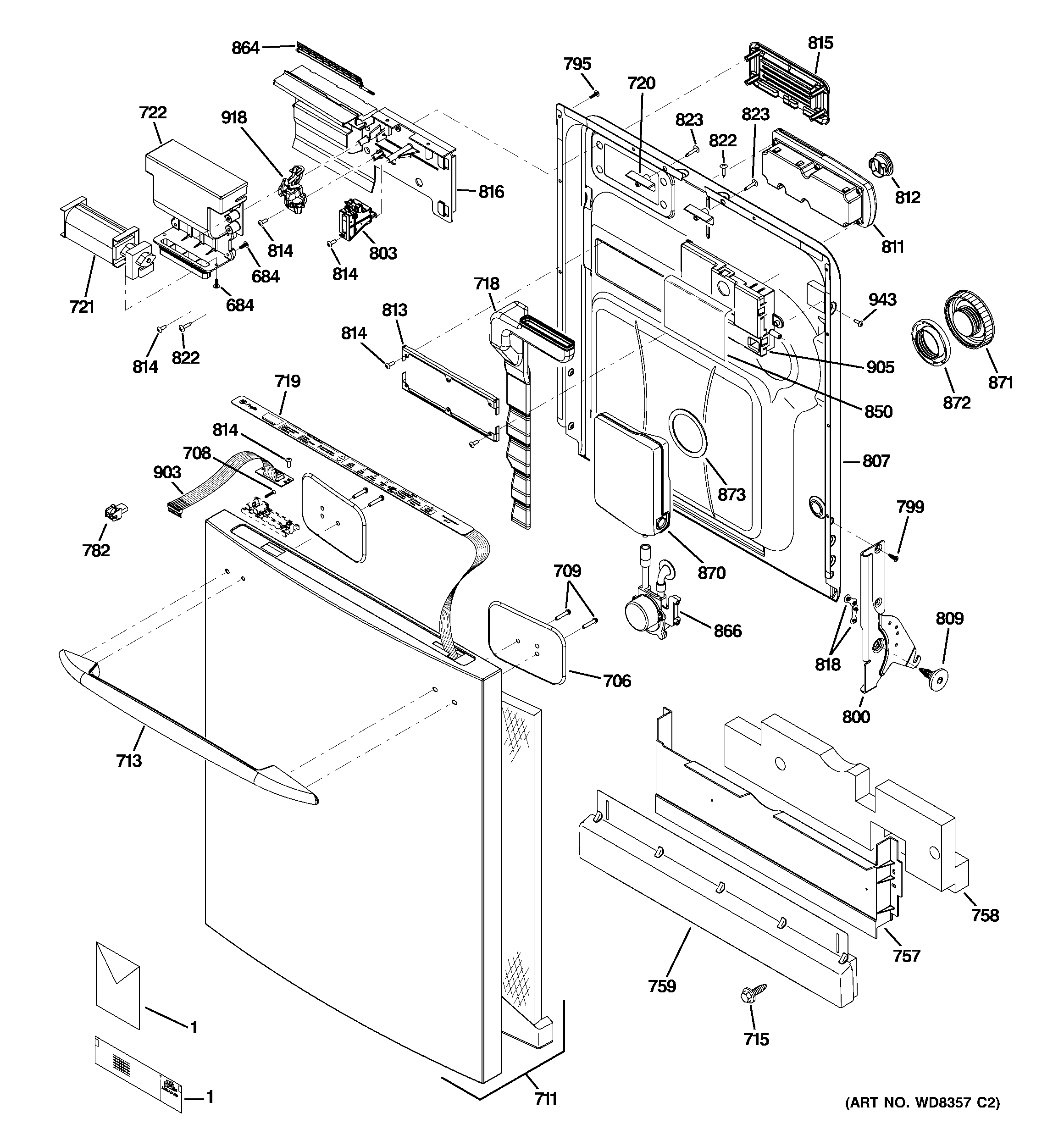

PDWT500R10BB ESCUTCHEON & DOOR ASSEMBLY

PDWT500R10BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWT500R10BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30616
1GEN 49-55065
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30260
1GEN 31-30248
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
706GEN WD12X10283
708WD02X10115 GE Screw 6-19 Flp 3/4 S
709GEN WD01X10238
709WB01T10066 GE Oven Screw 10-16 XC02
711GEN WD34X11610
711GEN WD34X11608
711GEN WD34X11579
713GEN WD13X10025
713GEN WD13X10023
713GEN WD13X10048
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
718GEN WD12X10190
719GEN WD34X11611
719GEN WD34X11609
719GEN WD34X11580
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757GEN WD27X10252
758WD01X10421 GE Dishwasher Foam Brace
759GEN WD27X10207
759WD27X10206 GE Dishwasher Toekick Assembly
759WD27X10218 GE Stainless Steel Dishwasher Toekick Assembly
782WB17X5060 GE Oven Block Assembly
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10088
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10254
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
823WD2X322 GE Dishwasher Screw 8-18 x 7/8
850WD01X10635 GE Dishwasher Control Shield
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870BOTTLE DETERGENT ASM
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
903GEN WD21X10255
905WD21X10404 GE Dishwasher Module Control Assembly
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
