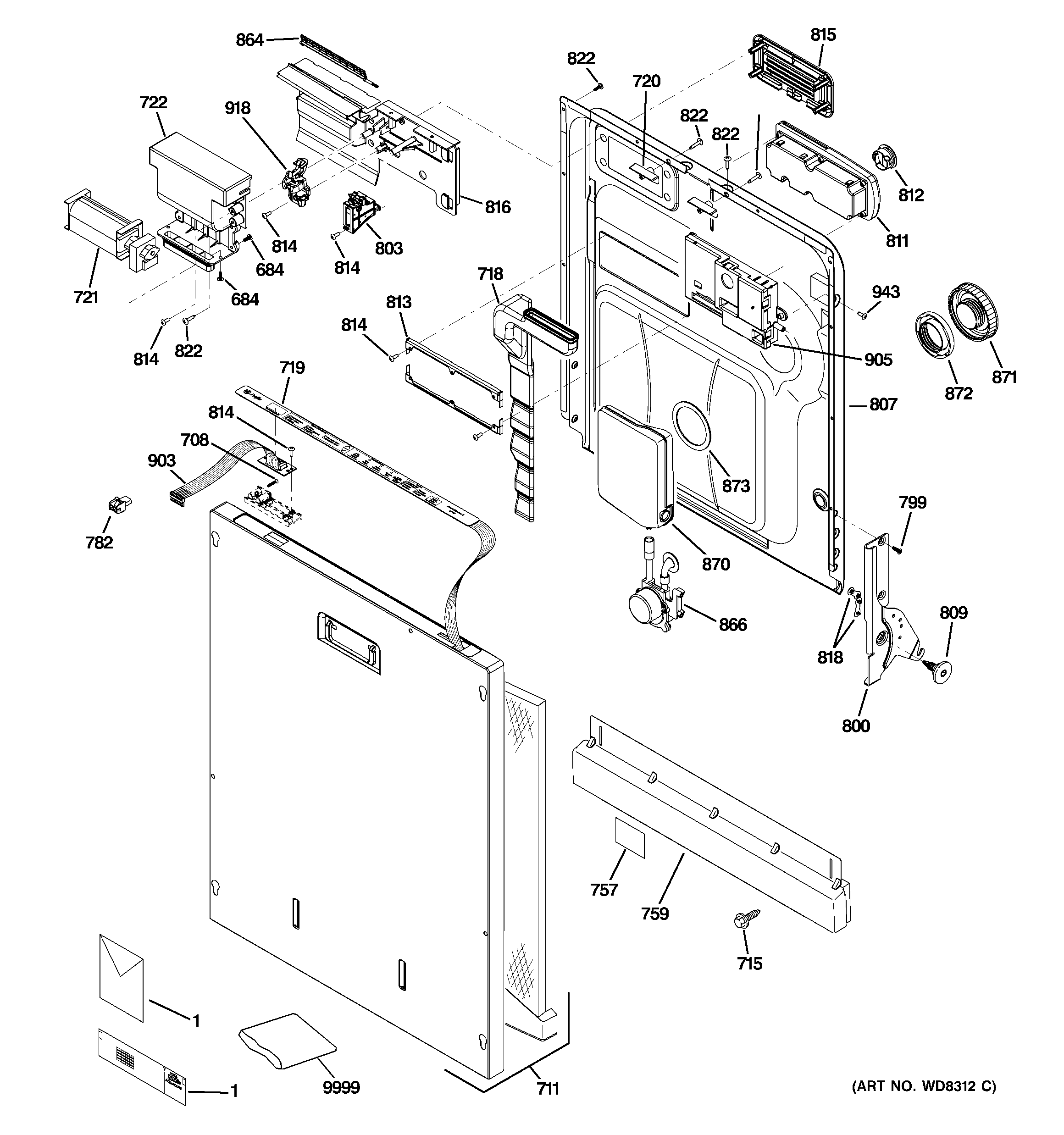

PDWT502P00II ESCUTCHEON & DOOR ASSSEMBLY

PDWT502P00II ESCUTCHEON & DOOR ASSSEMBLY

Written by

in

PDWT502P00II ESCUTCHEON & DOOR ASSSEMBLY

Products

PositionProduct
1GEN 31-30245
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 31-30600
1GEN 49-55047
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
708WD02X10115 GE Screw 6-19 Flp 3/4 S
711GEN WD34X11491
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10190
719WD34X11454 GE Dishwasher Keypad
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757GEN WD27X10217
759WD27X10206 GE Dishwasher Toekick Assembly
782WB17X5060 GE Oven Block Assembly
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10021
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10088
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10254
818GEN WD12X10025
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870BOTTLE DETERGENT ASM
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
903GEN WD21X10255
905WD21X10363 GE Dishwasher Module Control Assembly
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
9999TRIM PANEL ACCESSARY KIT
