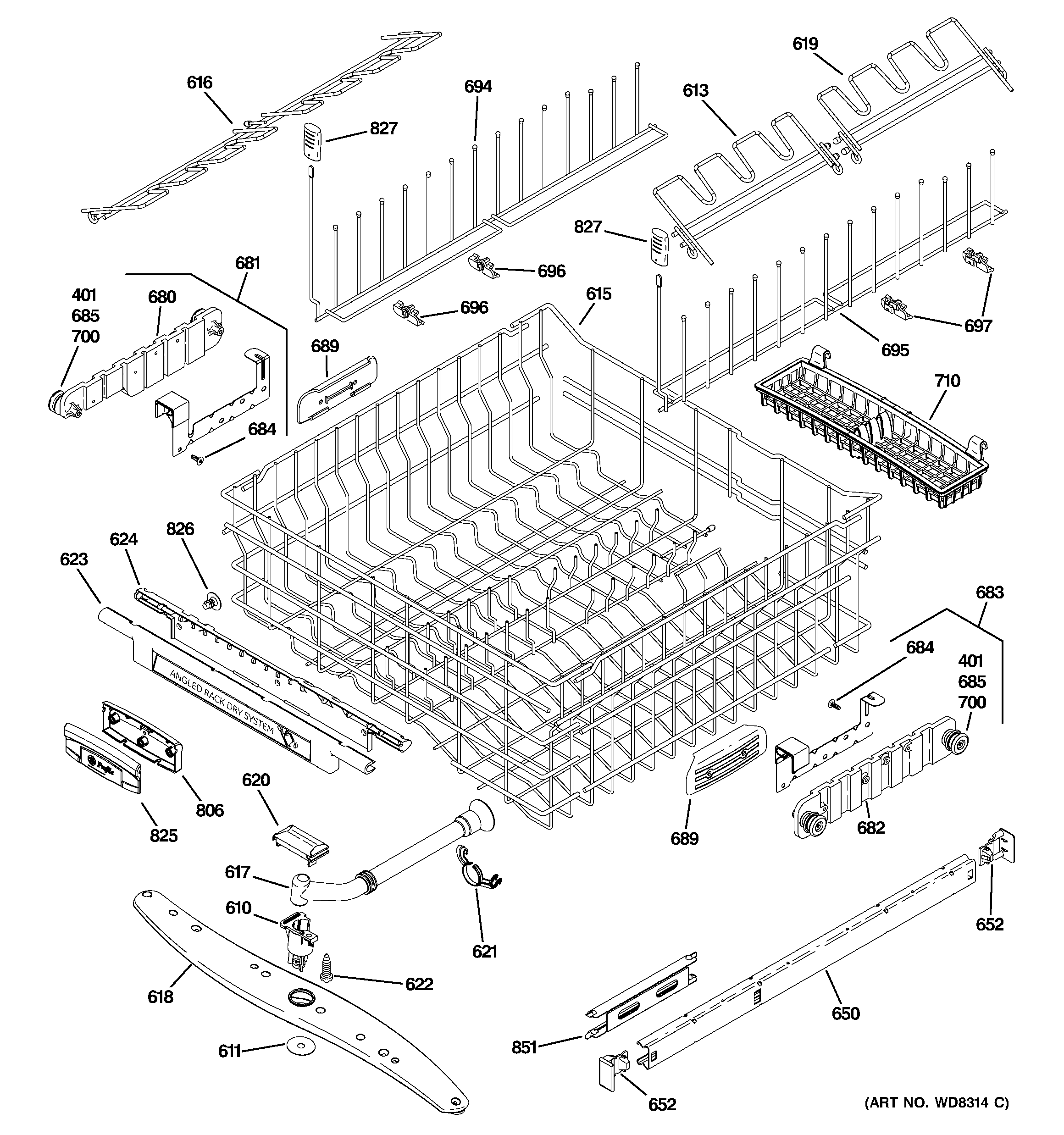

PDWT502P00II UPPER RACK ASSEMBLY

PDWT502P00II UPPER RACK ASSEMBLY

Written by

in

PDWT502P00II UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
613GEN WD28X10149
615WD28X10410 GE Dishwasher Upper Dishrack Assembly
616GEN WD28X10146
617WD12X10145 GE Dishwasher Mid Spray Conduit
618WD22X10048 GE Dishwasher Arm Spray Mid Assembly
619GEN WD28X10148
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623GEN WD12X10214
624GEN WD12X10215
650GEN WD30X10021
652SLIDE END CAP
680WD12X10143 GE Dishwasher Wheel Bracket
681GEN WD01X10399
682GEN WD12X10144
683GEN WD01X10400
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
685GEN WD02X10112
689GEN WD01X10398
694GEN WD28X10174
695GEN WD28X10173
696WD12X10116 GE Dishwasher Retainer Comb
697WD12X10118 GE Dishwasher Retainer Comb
700GEN WD12X10138
710GEN WD28X10147
806GEN WD13X10049
825GEN WD13X10050
826WD02X10130 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/4
827GEN WD28X10175
851CAGE ROLLER BEARING ASSMBLY
