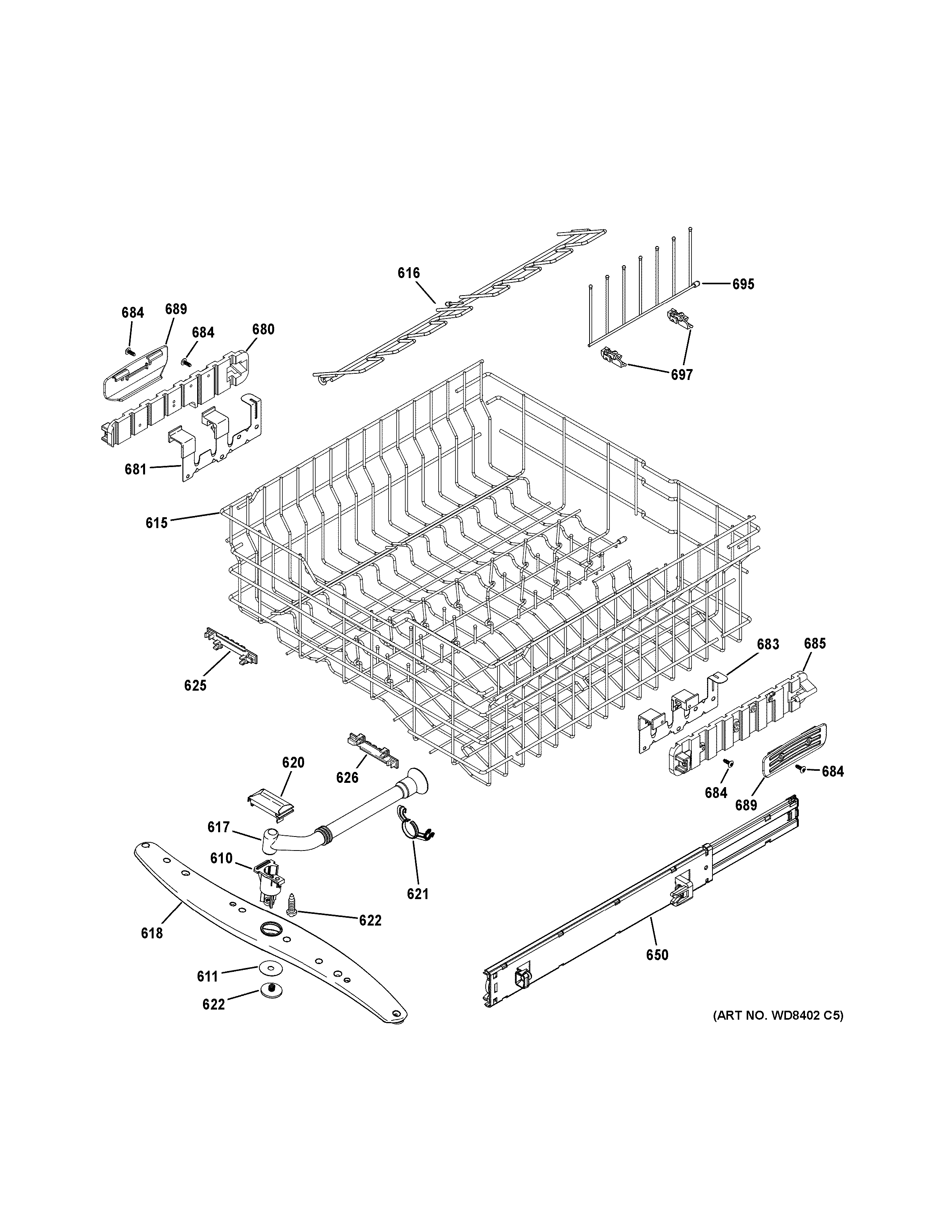

PDWT502V00II UPPER RACK ASSEMBLY

PDWT502V00II UPPER RACK ASSEMBLY

Written by

in

PDWT502V00II UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10413 GE Dishwasher Upper Rack Assembly with Spray Arm
616WD28X10263 GE Dishwasher Full Length Shelf Cup
617WD12X10145 GE Dishwasher Mid Spray Conduit
618WD22X10066 GE Dishwasher Arm Spray Mid Assembly
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
625WD12X10120 GE Dishwasher Finger Indexer Left Hand
626WD12X10137 GE Dishwasher Finger Indexer Right Hand
650INNER RAIL UPR RACK ASM
680WD01X10605 GE Dishwasher Adjustable Rack Bracket
681WD01X10395 GE Dishwasher Left Hand Rack Lever Assembly
683WD01X10396 GE Dishwasher Right Hand Rack Lever Assembly
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
685WD01X10604 GE Dishwasher Rack Adjustable Bracket
689WD01X10397 GE Dishwasher Touch Pad Stainless Steel
695GEN WD28X10260
697WD12X10118 GE Dishwasher Retainer Comb
