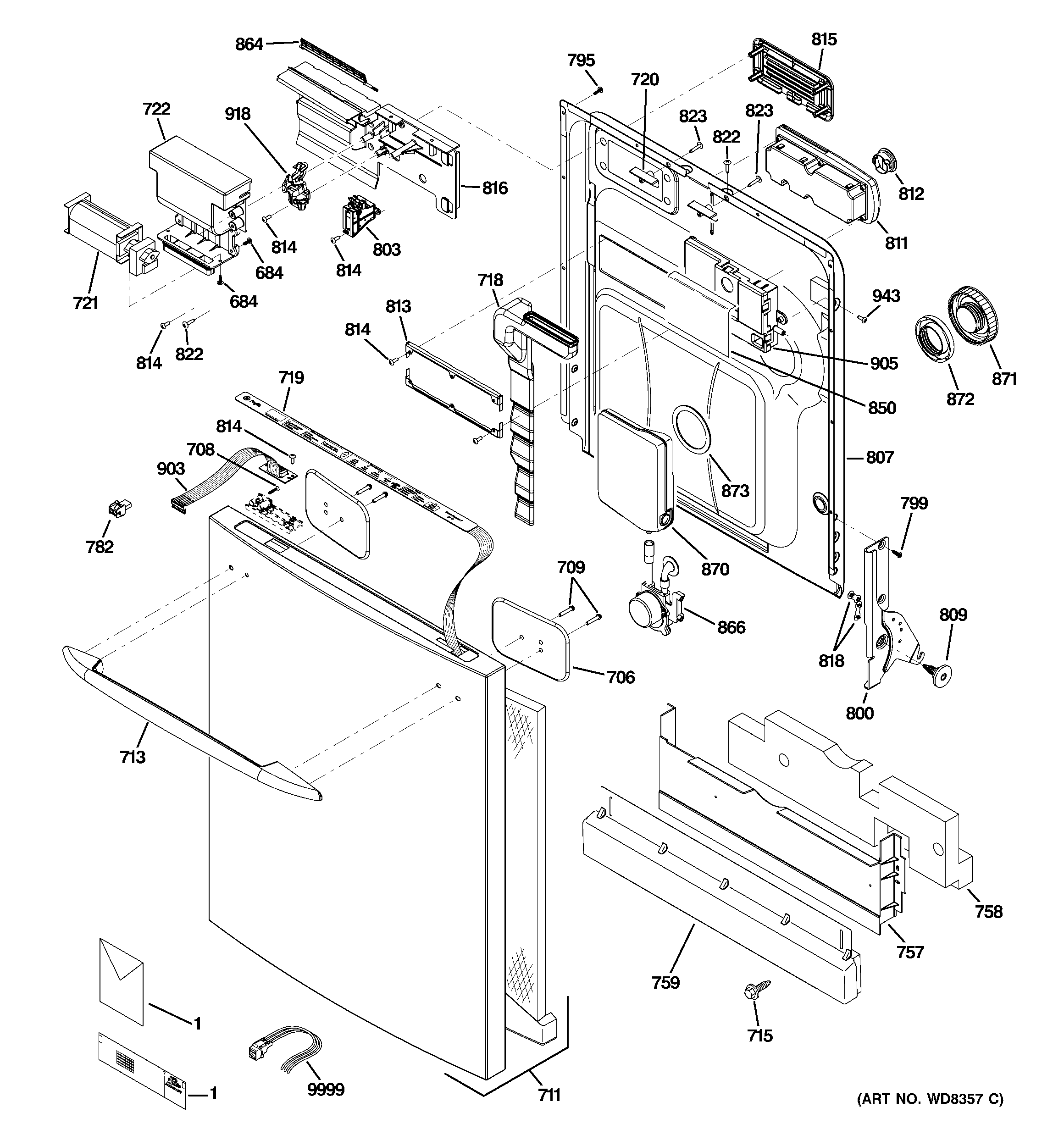

PDWT585T30SS ESCUTCHEON & DOOR ASSEMBLY

PDWT585T30SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PDWT585T30SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55065-1
1GEN 49-55025-2
1GEN 31-30616-2
684WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
706GEN WD12X10283
708WD02X10115 GE Screw 6-19 Flp 3/4 S
709GEN WD01X10238
711GEN WD34X11579
713GEN WD13X10056
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
718GEN WD12X10190
719GEN WD34X11580
720GEN WD01X10236
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
757WD27X10250 GE Dishwasher Toekick Assembly Kit
758WD01X10421 GE Dishwasher Foam Brace
759WD27X10218 GE Stainless Steel Dishwasher Toekick Assembly
795WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800GEN WD14X10021
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807GEN WD31X10088
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10349
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
823WD2X322 GE Dishwasher Screw 8-18 x 7/8
850WD01X10635 GE Dishwasher Control Shield
864WD12X10044 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870GEN WD35X10361
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
903GEN WD21X10255
905WD21X10404 GE Dishwasher Module Control Assembly
905GEN WD21X10442
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
9999GEN WD21X10375
