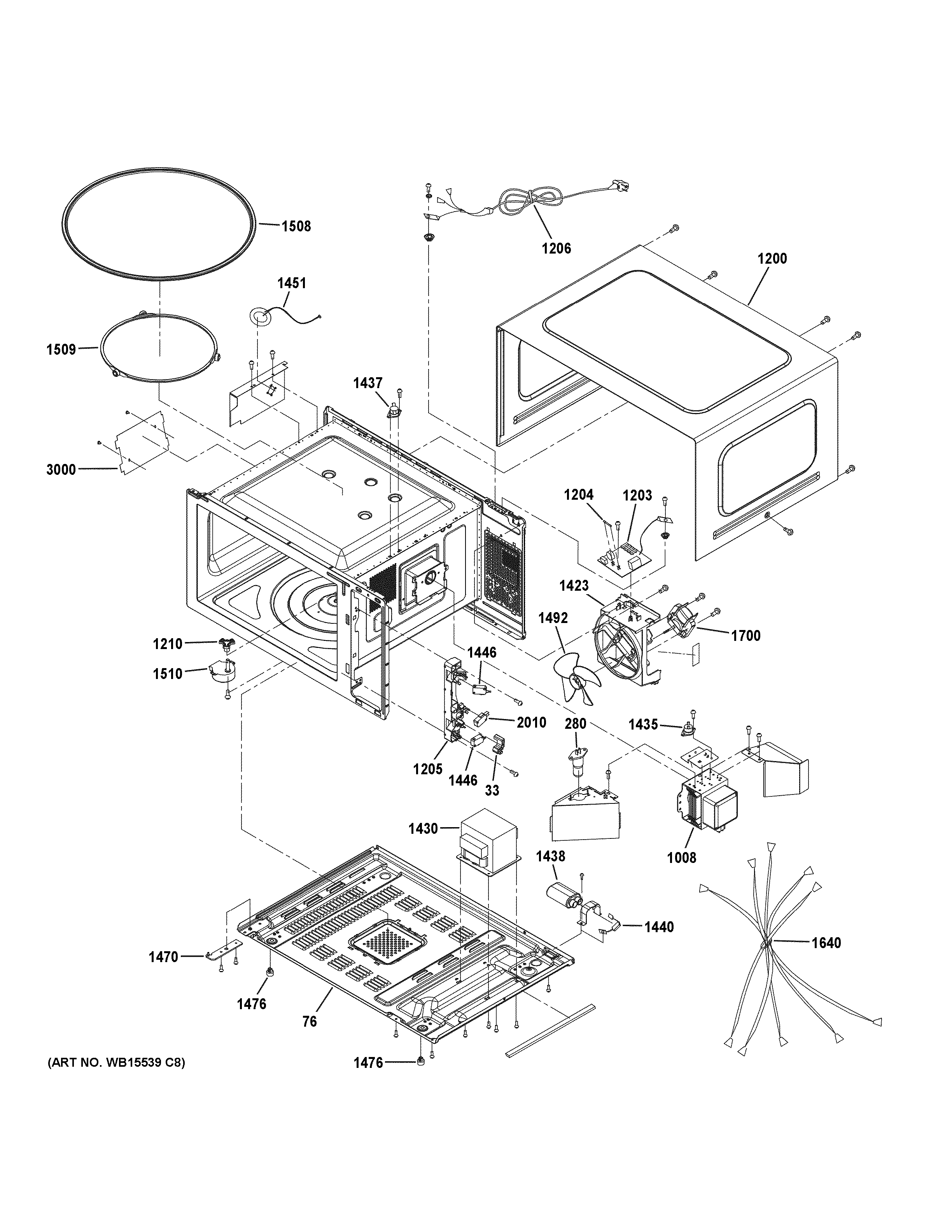

PEB7227SL1SS OVEN CAVITY PARTS

PEB7227SL1SS OVEN CAVITY PARTS

Written by

in

PEB7227SL1SS OVEN CAVITY PARTS

Products

PositionProduct
33LEVER SWITCH
76WB56X29706 GE Base Plate Assembly
280WB25X27079 GE Oven Lamp
1008WB27X41826 GE Magnetron
1200WB56X29799 GE Outer Case
1203WB27X11140 GE Noise Filter
1204WB02X30984 GE Oven Fuse
1205BOARD LATCH
1206WB18X27084 GE Oven Power Cord Assembly
1210WB02X29702 GE Oven Coupler
1423WB34X27087 GE Oven Wind Guide Cover
1430WB26X41486 GE Transformer High Voltage
1435WB27X11210 GE Oven Thermostat 160/0
1437WB24X27107 GE Oven Thermostat
1438WB27X29988 GE Oven High Voltage Capacitor
1440WB27X25616 GE Oven High Voltage Diode
1446WB24X10146 GE Oven Micro Switch
1451WB24X21307 GE Humidity Sensor Assembly
1470WB14X29707 GE Lower Hinge
1476WB01X27076 GE Range Foot
1492WB06X10860 GE Oven Fan
1508WB48X29704 GE Oven Glass Tray
1509WB31X29703 GE Oven Rotating Ring Assembly
1510TURNABLE MOTOR
1640WB18X29712 GE Oven Main Harness
1700WB26X10253 GE Fan Motor
2010MICROSWITCH MONITOR
3000WB39X10034 GE Oven Waveguide Cover
