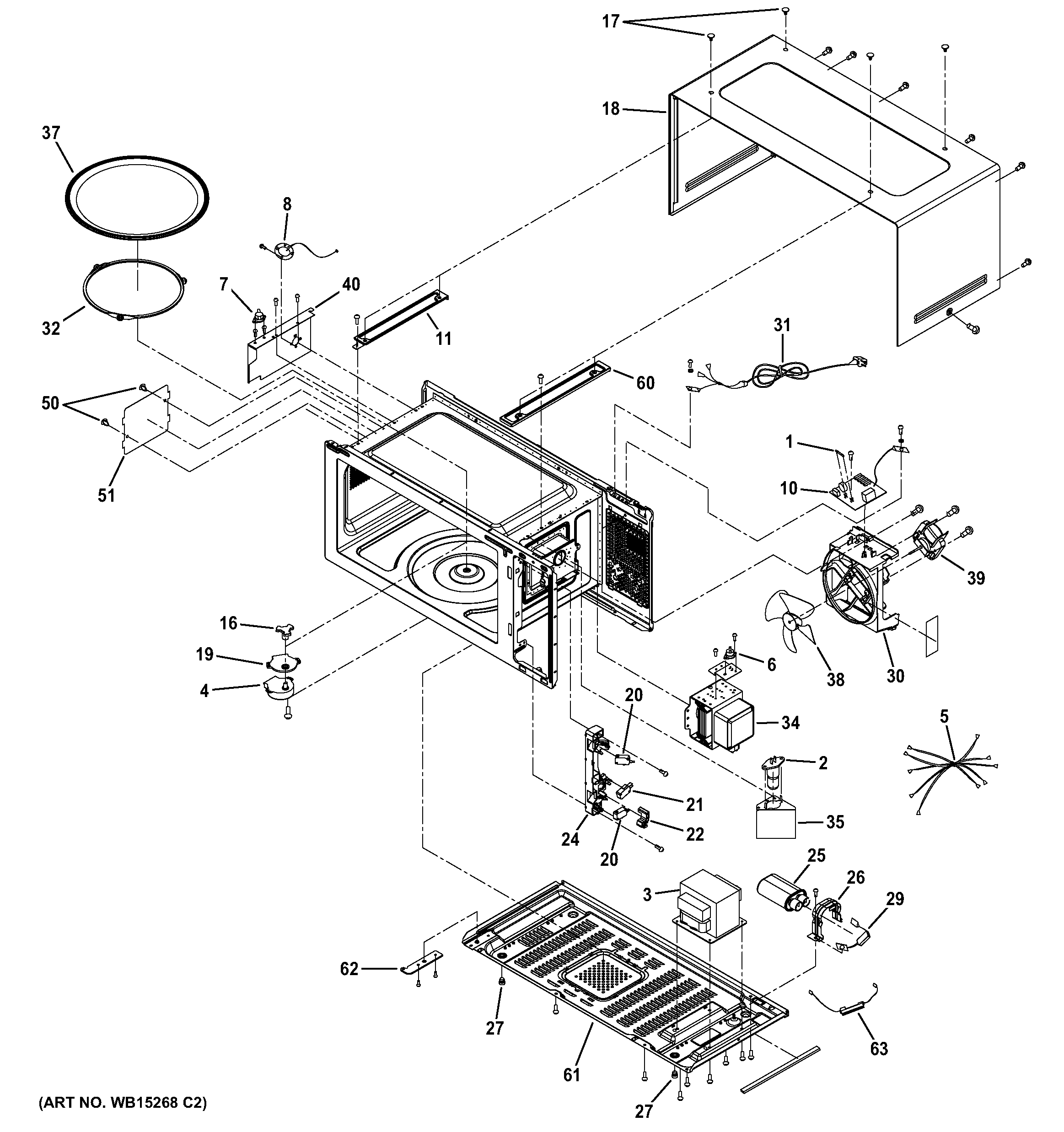

PEM31RF1SS OVEN CAVITY PARTS

Products

Position	Product
1	WB24X21303 GE Oven Fuse
2	WB25X21309 GE Oven Lamp
3	WB26X21335 GE Oven High Voltage Transformer
4	WB26X10252 GE Oven Tray Motor
5	WB18X21306 GE Harness
6	WB20X10054 GE Oven 160/95 V Thermostat
7	WB20X10056 GE Oven Thermostat 120/240 V
8	WB24X21307 GE Humidity Sensor Assembly
10	WB27X11140 GE Noise Filter
11	WB34X21316 GE Oven Left Hand Mounting Plate
16	WB02X21279 GE Oven Coupler
17	WB01X21329 GE Plastic Nail
18	OUTER CASE
19	WB35X21305 GE Oven Gasket
20	MICROSWITCH
21	WB02X21314 GE Oven Microswitch Monitor
22	WB02X21311 GE Range Lever Switch
24	BOARD LATCH
25	WB24X21272 GE High Voltage Capacitor
26	WB06X10933 GE Bracket
27	WB02X21302 GE Oven Foot
29	WB26X28935 GE Microwave Diode
30	FAN GUIDE
31	WB18X21330 GE Power Cord Assembly
32	WB02X21331 GE Oven Roller Guide
34	WB26X21312 GE Oven Magnetron
35	DUCT
37	WB48X21336 GE Oven Microwave Glass Turntable Tray
38	WB06X10860 GE Oven Fan
39	WB26X21315 GE Fan Motor
40	SIDE SHIELD
50	WB01X10418 GE Oven Plastic Nail
51	WB39X10034 GE Oven Waveguide Cover
60	WB34X21317 GE Oven Right Hand Mounting Plate
61	BASE PLATE
62	WB10X21338 GE Lower Hinge
63	WB24X21304 GE Oven High Voltage Fuse Assembly
