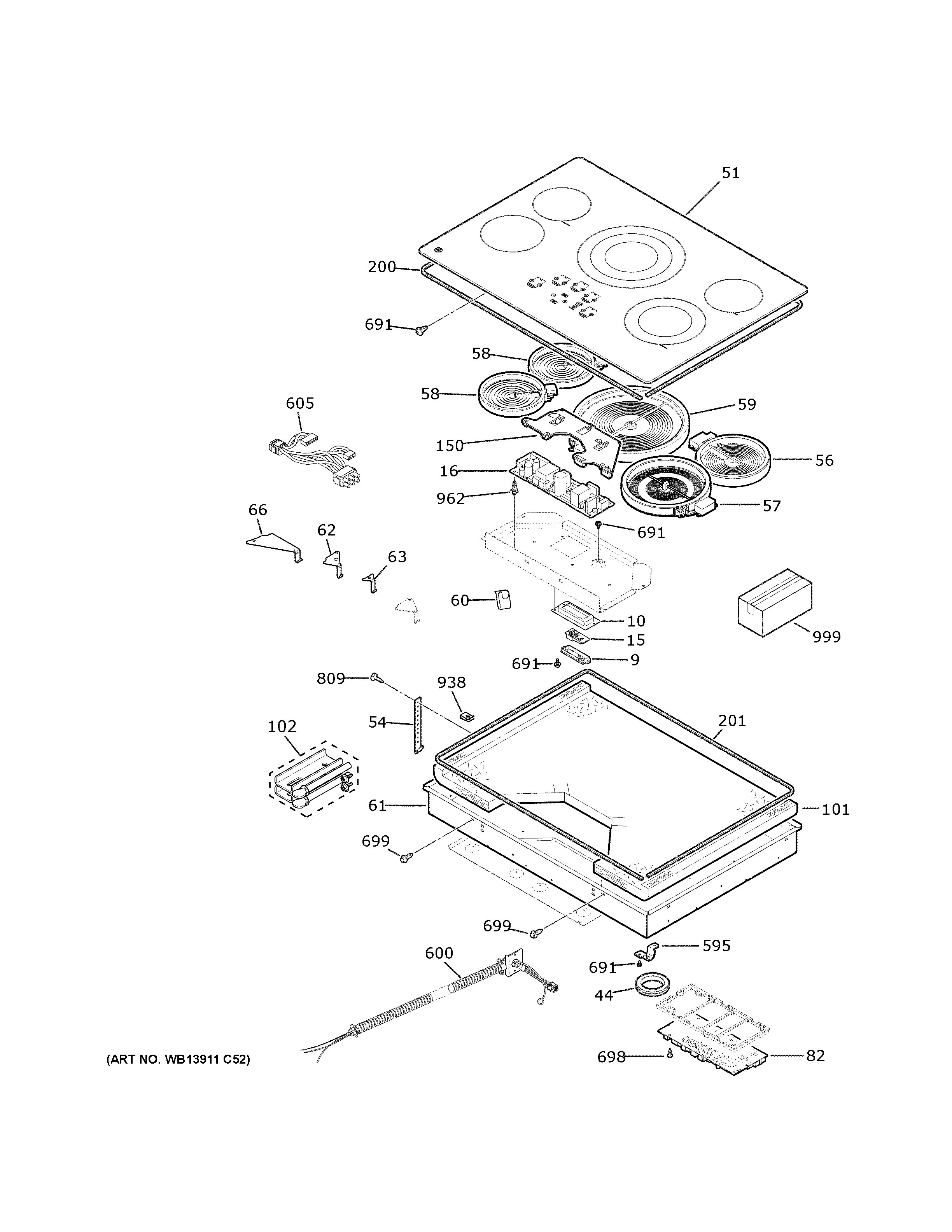

PEP7036DT1BB CONTROL PANEL & COOKTOP

Products

Position	Product
9	WB02X30390 GE Wi-Fi Board Housing
10	WIFI HOUSING BRACKET
15	WB27X45808 GE Wi-Fi Bluetooth Combo Board
16	WB27X24011 GE Oven Power Supply Board
44	WB02T10092 GE Burner Box Grommet
51	WB62X44589 GE Cooktop Glass and Frame
54	WB2K5328 GE Oven Hold Down Bracket
56	WB30T10145 GE Oven Radiant Surface Element
57	WB30T10131 GE Oven Halogen Element 8 In
58	WB30T10129 GE Oven Radiant Element 6 In
59	WB30T10126 GE Oven Triple Halogen Element
60	WB09X40389 GE Radiant Element Spring
61	BOTTOM BURN BOX
62	WB02X24199 GE Radiant Element Bracket
63	WB02X24195 GE Oven Radiant Element Bracket
66	WB02X24196 GE Radiant Element Bracket
82	WB27X44566 GE Machine Control Relay Board
101	WB35X24172 GE Insulation
102	WB01X24570 GE Oven Installation Kit
200	WB35X24125 GE Oven Insulation Foam Tape
201	WB02X26088 GE Oven Foam Tape
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32527 GE Conduit Wire Assembly
605	LOGIC WIRE HARNESS
605	WB18X32553 GE Control Wire Harness
605	WB18X32522 GE Power Wire Harness
605	HARNESS WIRE POWER
605	MAIN WIRE HARNESS RT
605	MAIN WIRE HARNESS LT
691	WB01X24092 GE Oven Screw 8-18
698	WZ4X416 GE WZ04X0408
699	WB01X24096 GE Screw 8-18X
809	WB1X1137 GE Oven Screw
938	WB1K5209 GE Oven Clip
962	WB02T10477 GE Standoff PCB
999	PM INSTALL INSTRUCTIONS
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
