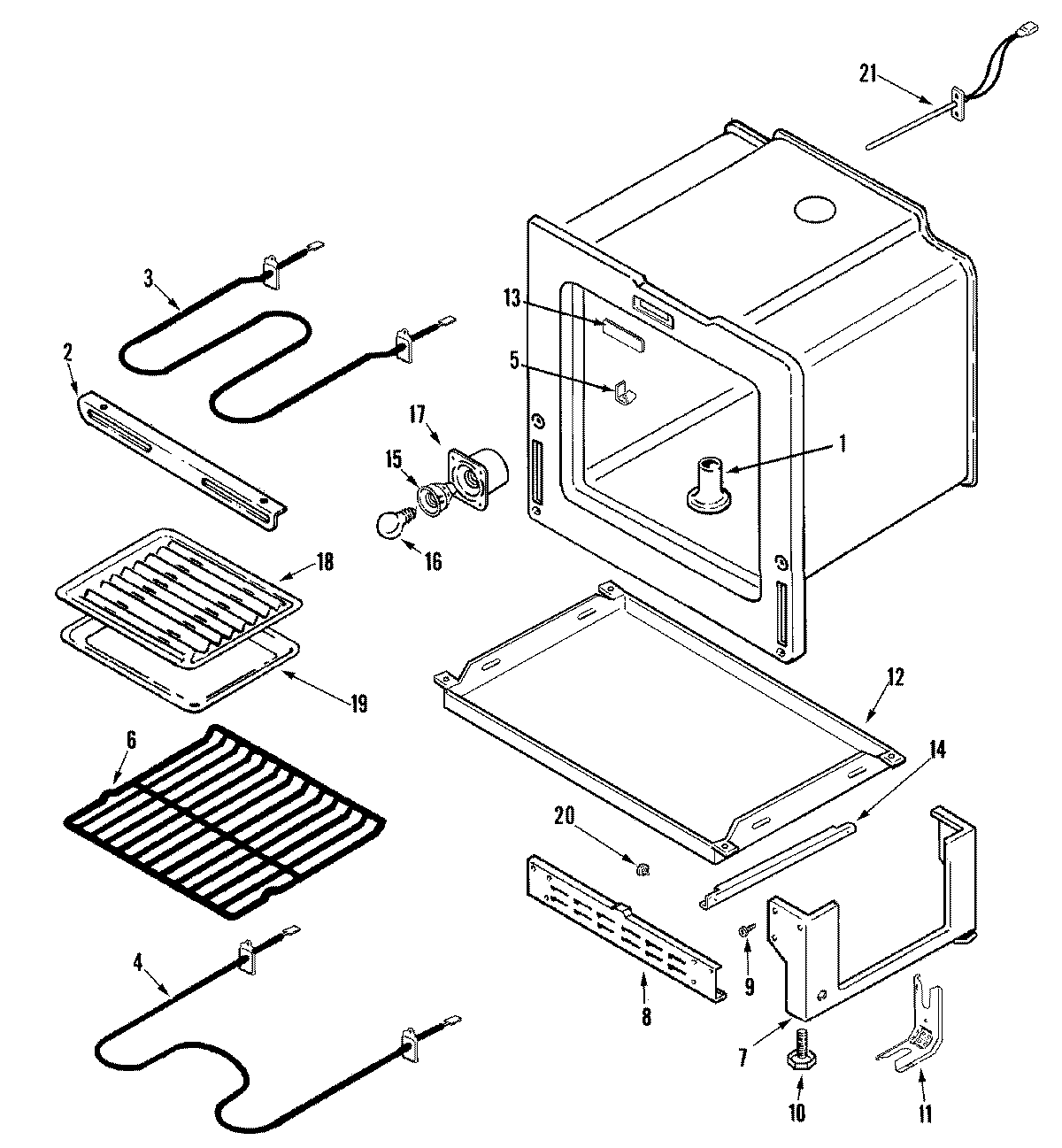

PER1125ACW 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	WP7112P004-60 Whirlpool Thermal Clip
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11	WP7101P485-60 Whirlpool Anchor Tip
12	RETAINER, INSULATION (BOTTOM)
13	PLUG, LOCK SLOT
14	RUNNER, DRAWER
15	MAY 74003387
15	SCREW
16	RANGE ONLY 40W 120V APPL BULB
17	MAY 74003388
18	MAY Y3413F01619
19	MAY Y3401F02019
20	SHAFT, STORAGE DRAWER ROLLER
20	WP74004078 Whirlpool Door Roller
21	12001656 Whirlpool Range Oven Temperature Sensor
