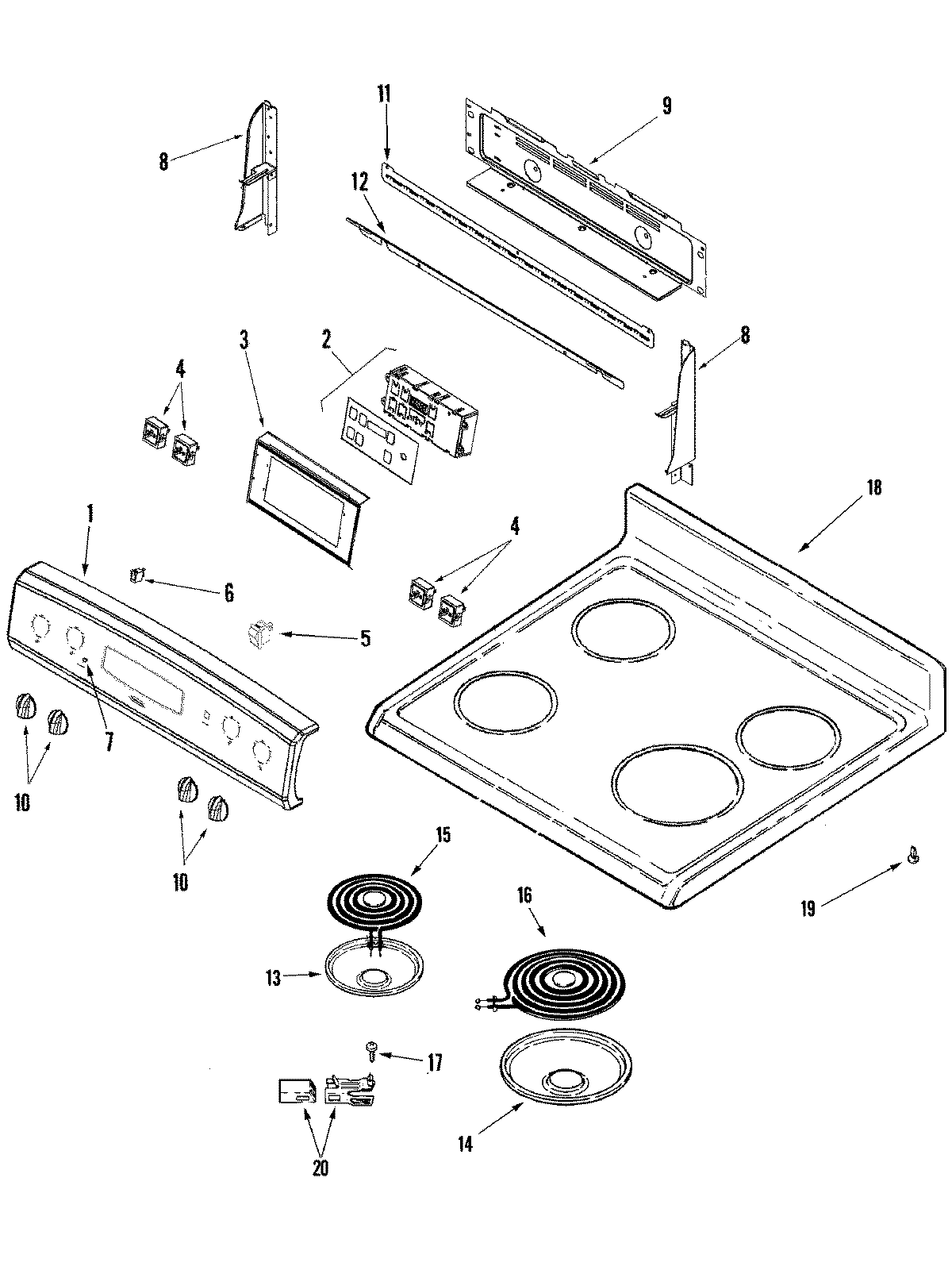

PER3524ACW 02 – CONTROL PANEL/TOP ASSEMBLY

PER3524ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER3524ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010982
2MAY 74010984
3MAY 74008716
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
574008717 Whirlpool White Rocker Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74010713
8WP98008544 Whirlpool Screw Assembly
8WP74003976 Whirlpool Screw
8MAY 74010212
9MAY 74010983
10WP74010331 Whirlpool White Knob
11MAY 74009701
11SCREW (8BX3/8-NI)
12WP90767 Whirlpool Screw
12MAY 74009978
13WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
14MAY Y04100393
15WPW10345407 Whirlpool Surface Element
16WP9761346 Whirlpool Stove Surface Burner Element
17MAY 7118P013-60
18MAY 74003428
19W11189172 Whirlpool Glide Drawer
20WP74007474 Whirlpool Dishwasher Element Receptacle
