PER3724ACB 03 – DOOR/DRAWER

PER3724ACB 03 – DOOR/DRAWER

Written by

in

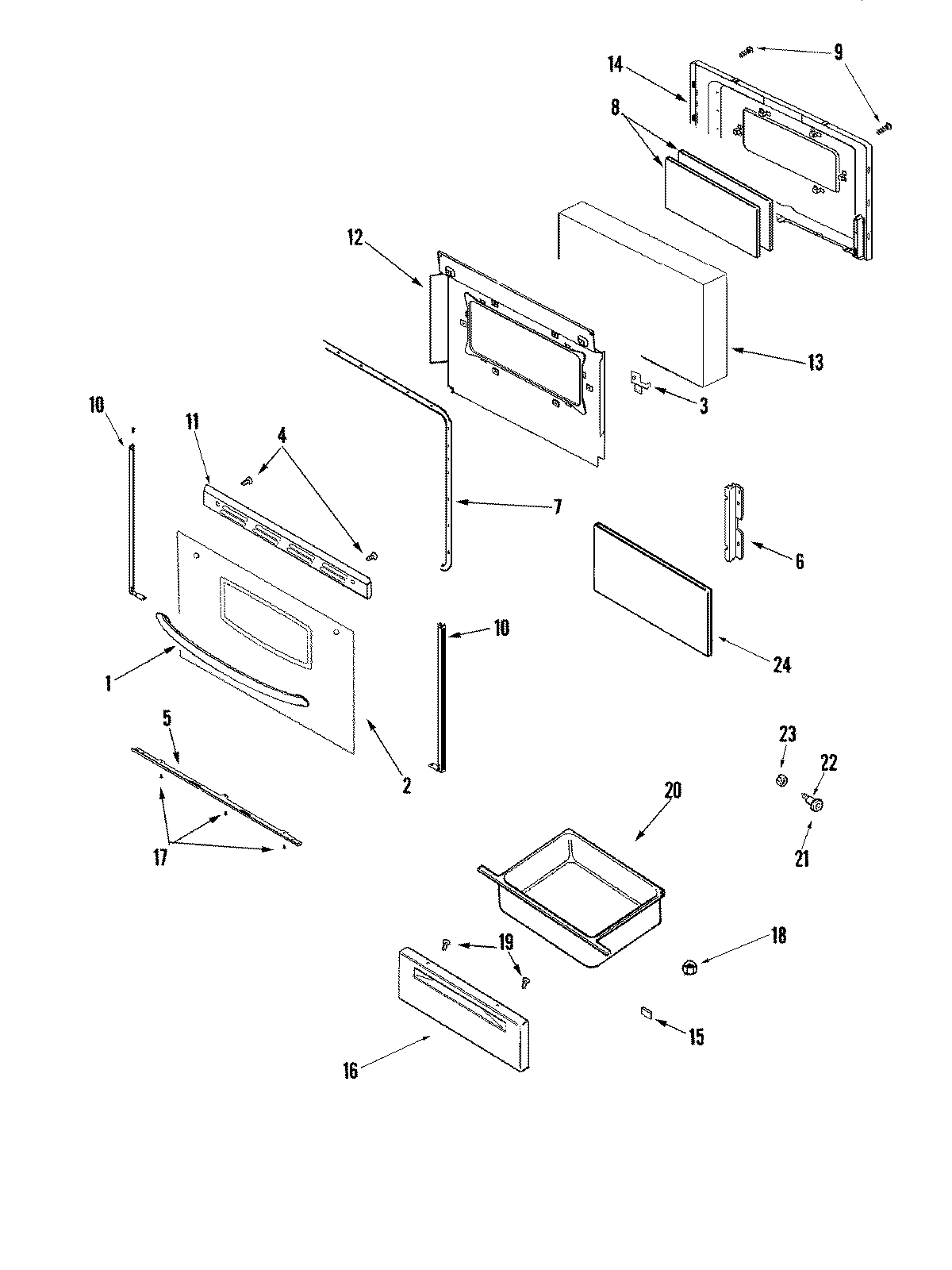

PER3724ACB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010338
2MAY 74010345
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4MAY 74006295
4MAY 74001521
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
10WP74004224 Whirlpool Tape
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
11MAY 7101P356-60
11MAY 74010239
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
15WP74005546 Whirlpool RU Spacer
16MAY 74009685
17SCREW
18WPW10131078 Whirlpool Nut Assembly
19WP98008545 Whirlpool Screw
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24MAY 74002002
