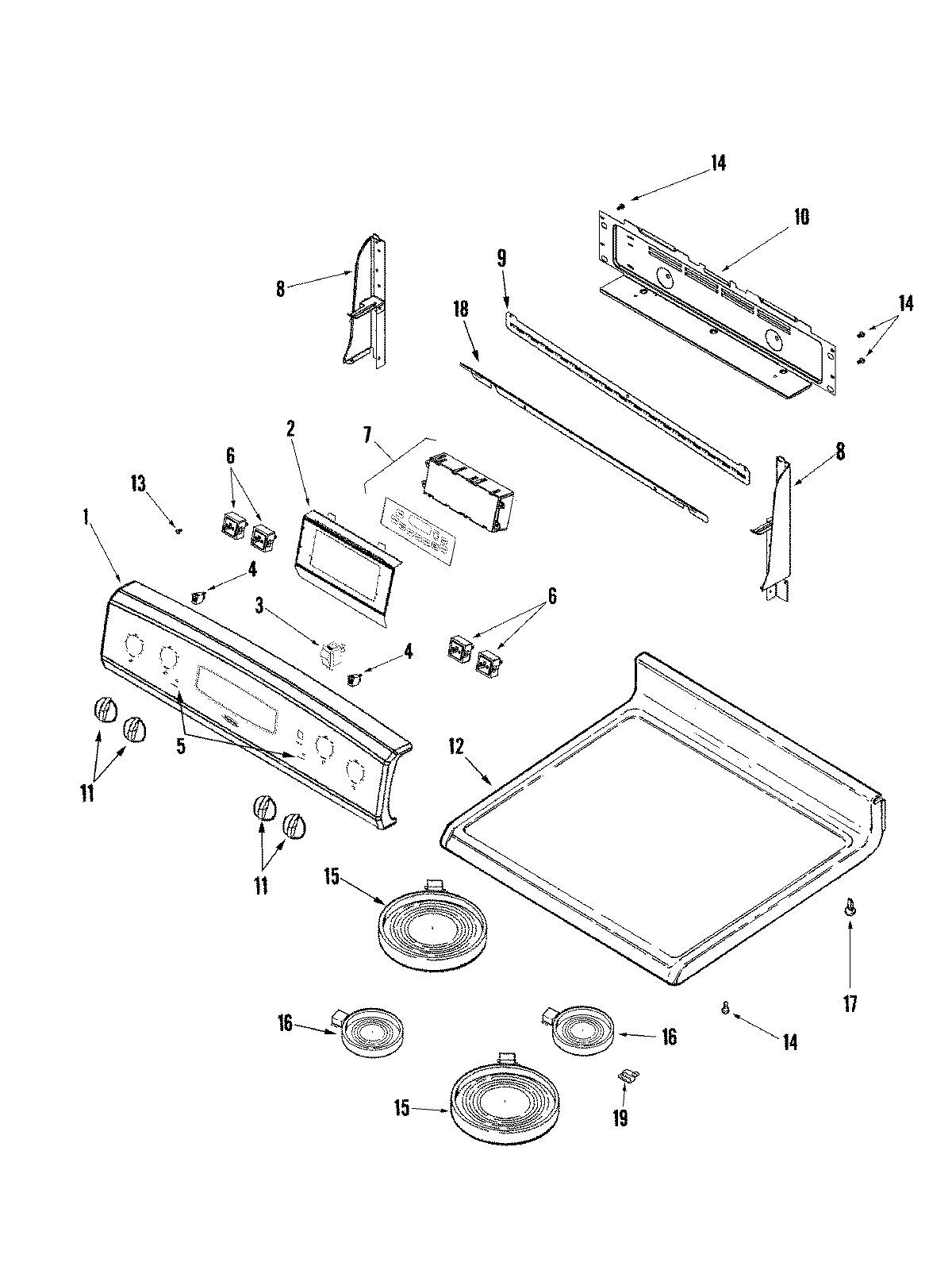

PER3724ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010950
2	MAY 74008716
3	74008717 Whirlpool White Rocker Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74010984
8	MAY 74010713
8	MAY 74010212
8	WP74003976 Whirlpool Screw
8	WP98008544 Whirlpool Screw Assembly
9	MAY 74009701
10	MAY 74009943
11	WP74010331 Whirlpool White Knob
12	MAY 74010353
13	SCREW
14	SCREW (6ABX.25-ZN)
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009978
19	8004P093-60 Whirlpool Support C
