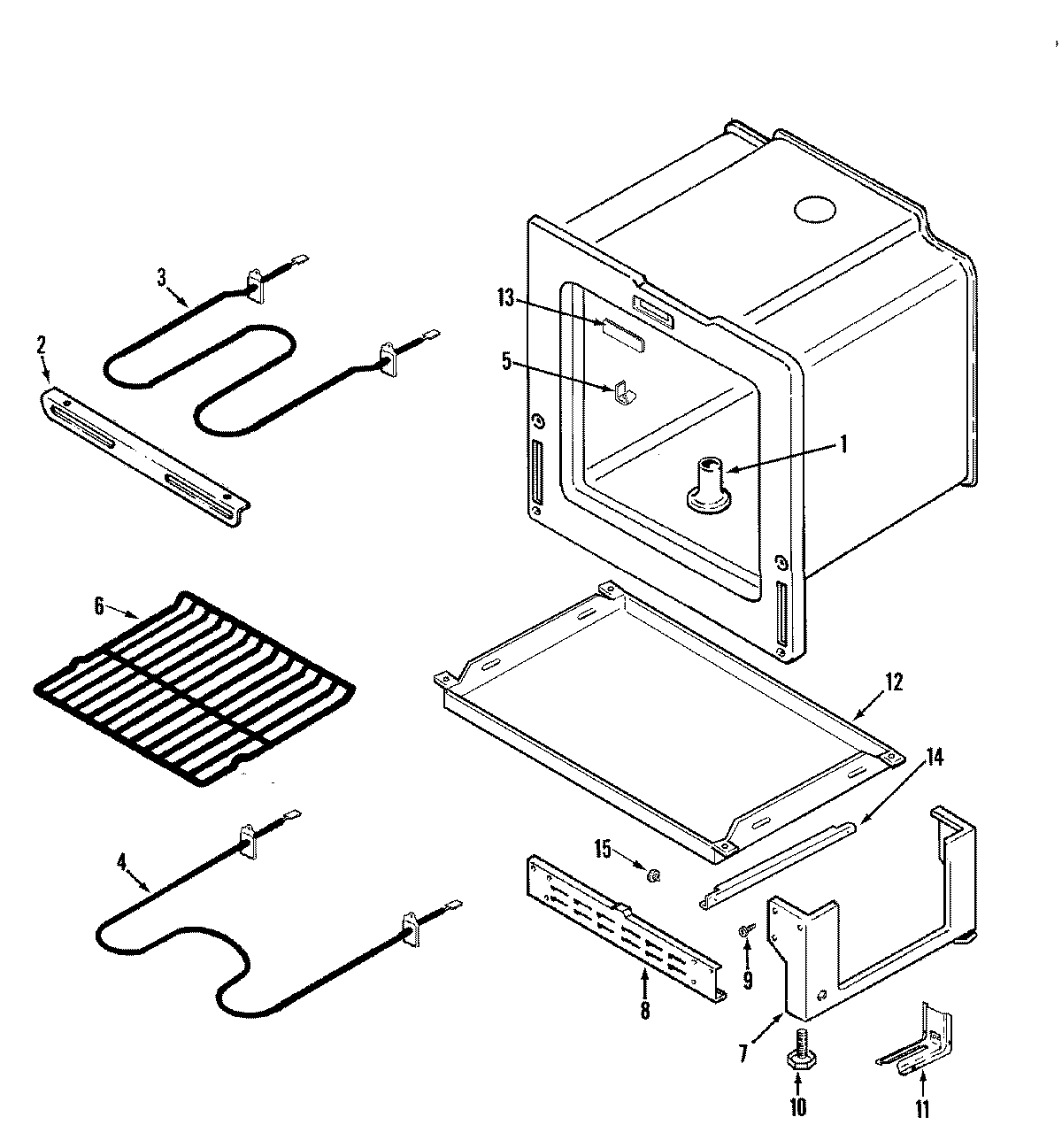

PER4102BAH 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	WP7112P004-60 Whirlpool Thermal Clip
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003393
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11	MAY 74002311
12	MAY 74003392
12	MAY 74005250
13	PLUG, LOCK SLOT
14	RUNNER, DRAWER
14	SCREW
15	SHAFT, STORAGE DRAWER ROLLER
15	MAY 74003566
15	WP488130 Whirlpool Air Conditioner Nut
