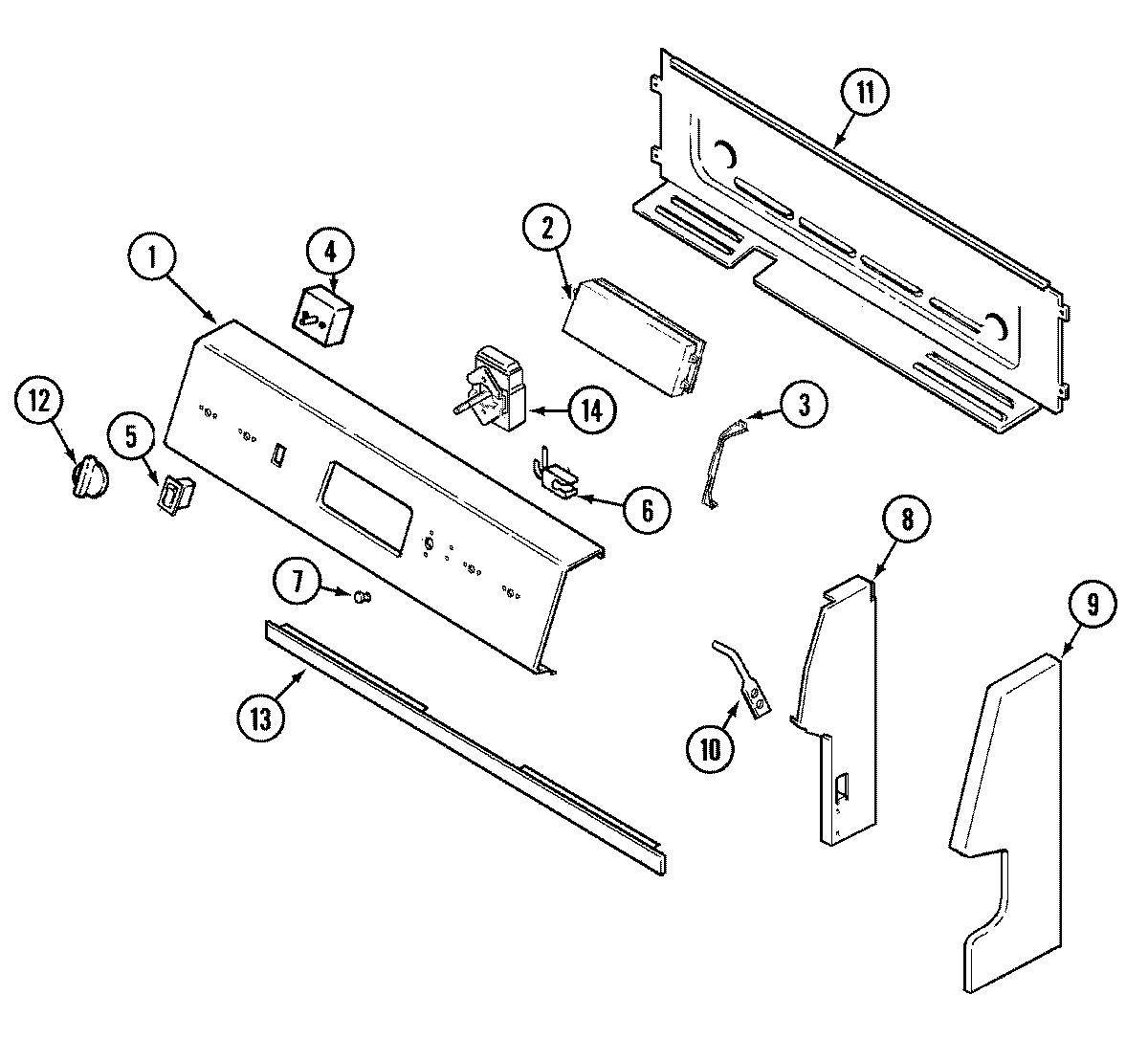

PER4305BAT 02 – CONTROL PANEL

PER4305BAT 02 – CONTROL PANEL

Written by

in

PER4305BAT 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006284
2WP59002061 Whirlpool Microwave Screw
2MAY 74006285
3MAY 74003426
3WPY706189 Whirlpool Stove Screw
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4SCREW
5MAY 74003363
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74003365
8MAY 74003366
9MAY 74003368
9SCREW (8ABX1/2“-BLK)
9MAY 74003367
10MAY 74003371
1074003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11MAY 74003372
12MAY 74003427
13MAY 74003374
13SCREW
14WP74005019 Whirlpool Oven Thermostat
14MAY 7101P280-60
15MAY 12001323
16MAY 74005904
17MAY 16010161
