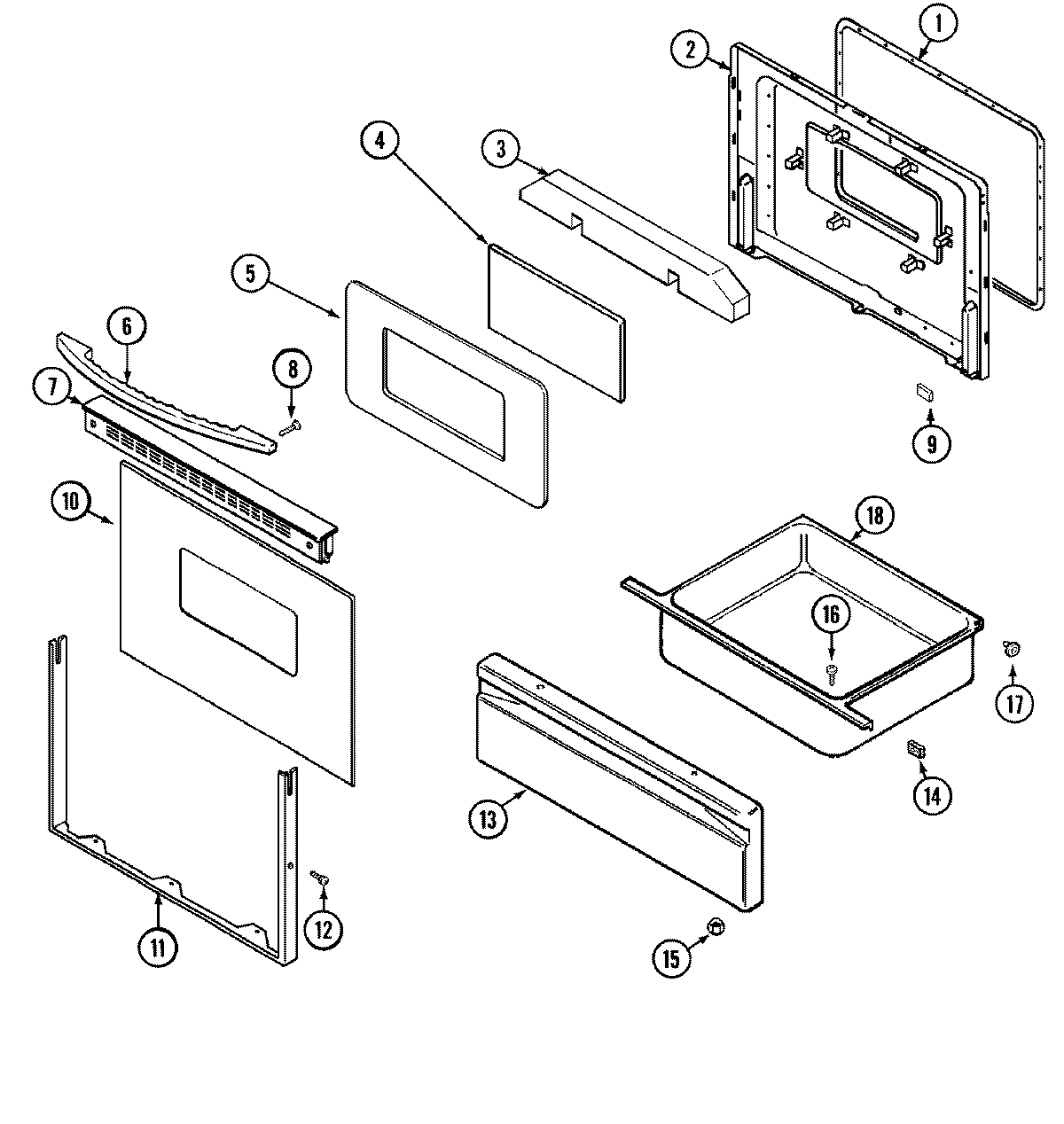

PER4305BAT 03 – DOOR/DRAWER

Products

Position	Product
1	WP7212P043-60 Whirlpool Oven Door Seal Gasket
2	NUT, SNAP (ROUND-BLK)
2	MAY 74003244
2	NUT, SNAP (ROUND-WHT)
3	MAY 74002458
4	MAY 74002459
5	MAY 7101P276-60
5	MAY 74002461
6	MAY 74006286
7	MAY 74003889
8	SCREW (8ABX1/2``-BLK)
9	WP74005546 Whirlpool RU Spacer
10	MAY 74006287
11	MAY 7706P309-60
12	WP98008545 Whirlpool Screw
13	MAY 74005055
14	WP854334 Whirlpool Air Conditioner Sealing Strip
15	WP488130 Whirlpool Air Conditioner Nut
15	WPW10131078 Whirlpool Nut Assembly
16	SCREW
17	WP74004078 Whirlpool Door Roller
17	SHAFT, STORAGE DRAWER ROLLER
18	MAY 71003042
