PER4310BAQ 04 – OVEN/BASE

PER4310BAQ 04 – OVEN/BASE

Written by

in

PER4310BAQ 04 – OVEN/BASE

Products

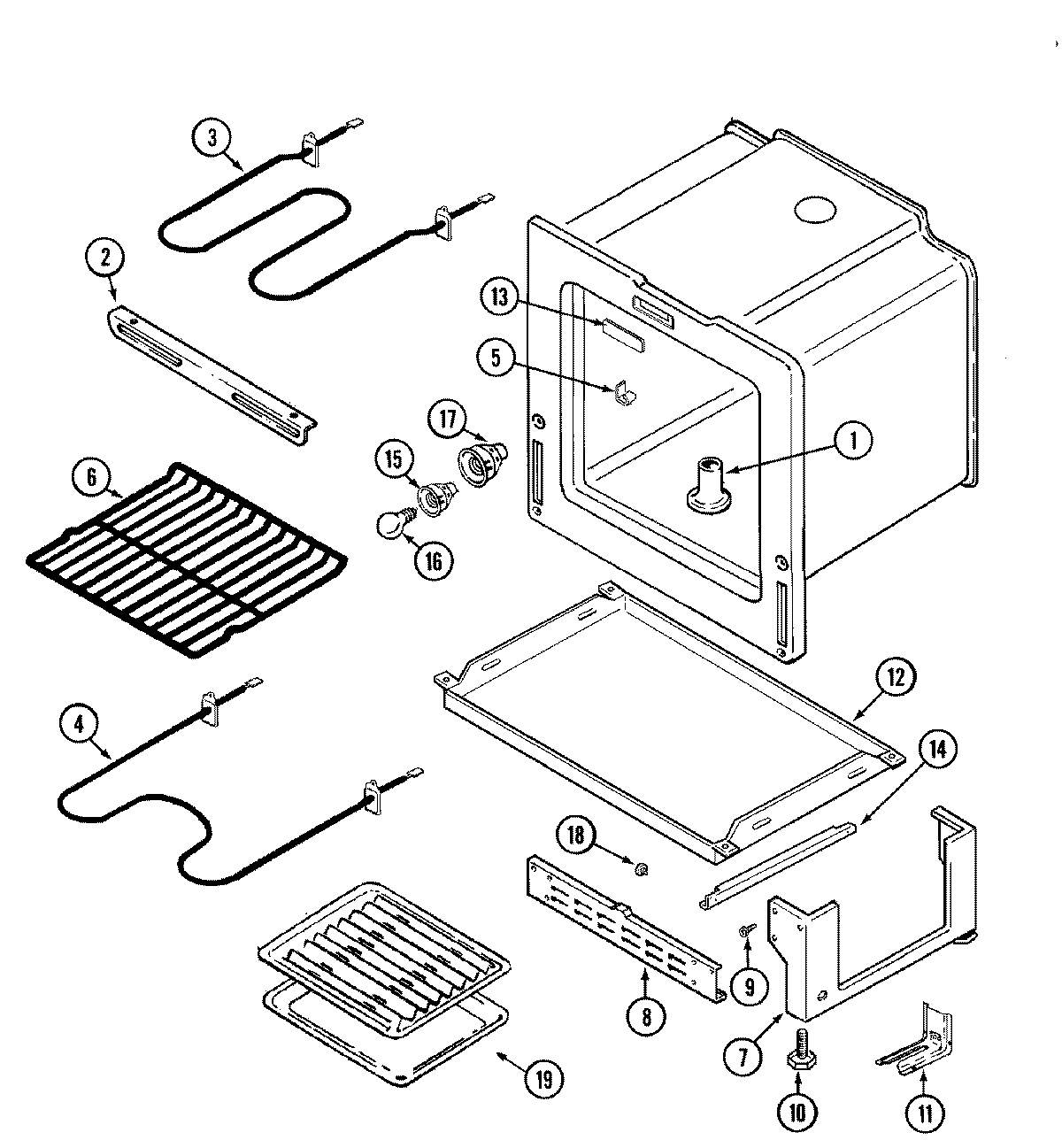

PositionProduct
1MAY 8026P019-60
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12MAY 74005250
13PLUG, LOCK SLOT
14RUNNER, DRAWER
15SCREW
15MAY 74003387
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
18WP74004078 Whirlpool Door Roller
18SHAFT, STORAGE DRAWER ROLLER
194396923 Whirlpool Broil Pan Set Gray Porcelain
