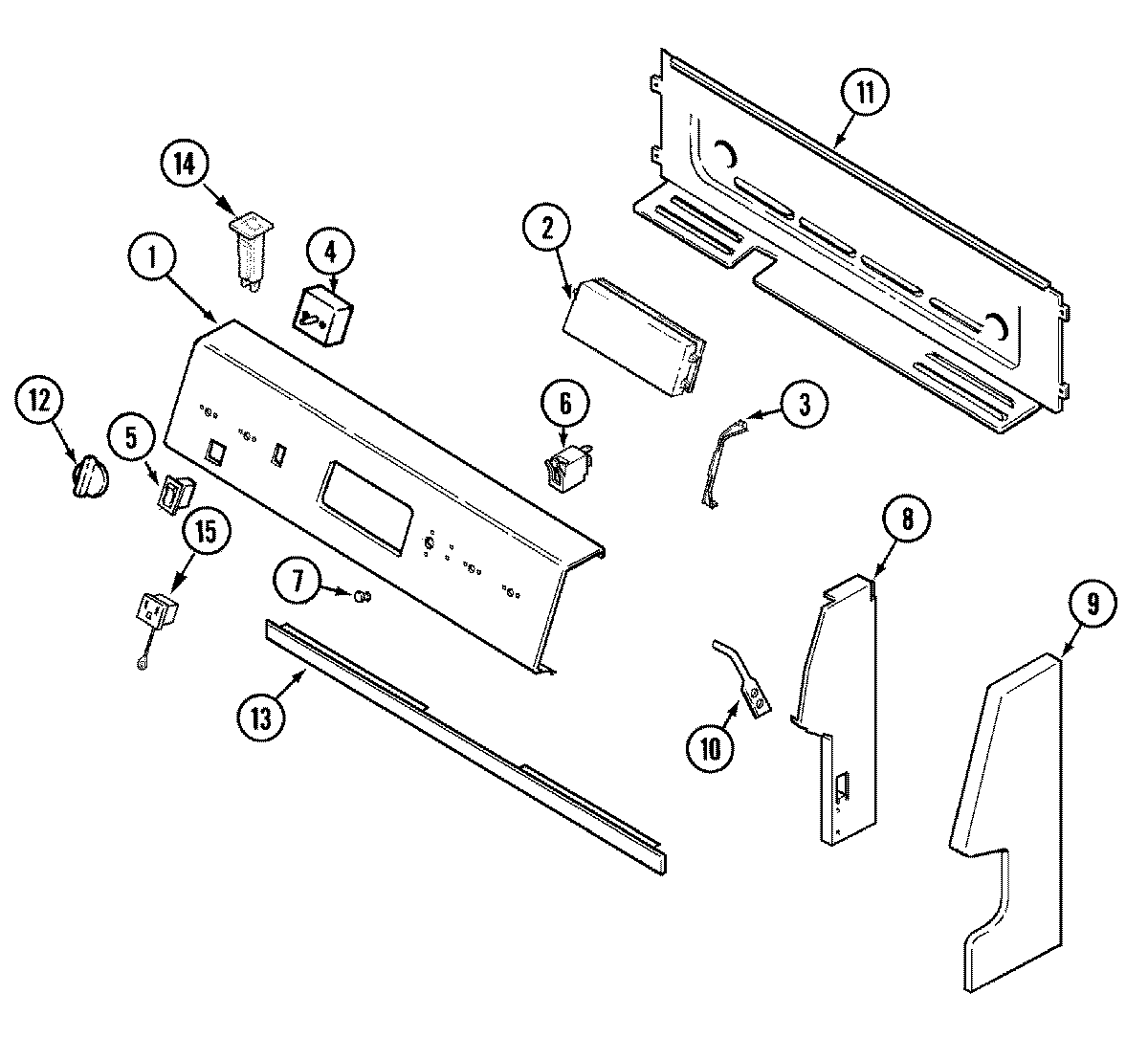

PER4310BCW 02 – CONTROL PANEL

PER4310BCW 02 – CONTROL PANEL

Written by

in

PER4310BCW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006366
2MAY 74005509
2WP59002061 Whirlpool Microwave Screw
3MAY 7101P348-60
3MAY 74005294
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
574008717 Whirlpool White Rocker Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74003366
8MAY 74003365
9MAY 74002451
9WP74003369 Whirlpool Endcap
9WP98008544 Whirlpool Screw Assembly
9MAY 74003370
1074003975 Whirlpool Screw P1 (8ABX3/8-BLK)
10MAY 74003371
11MAY 74004550
12WP74003373 Whirlpool Knob Switch
13MAY 74003374
13SCREW (8BX3/8-NI)
14MAY 71003070
15MAY 71003069
16MAY 12001323
17MAY 74005284
17MAY 74005475
18MAY 16010161
