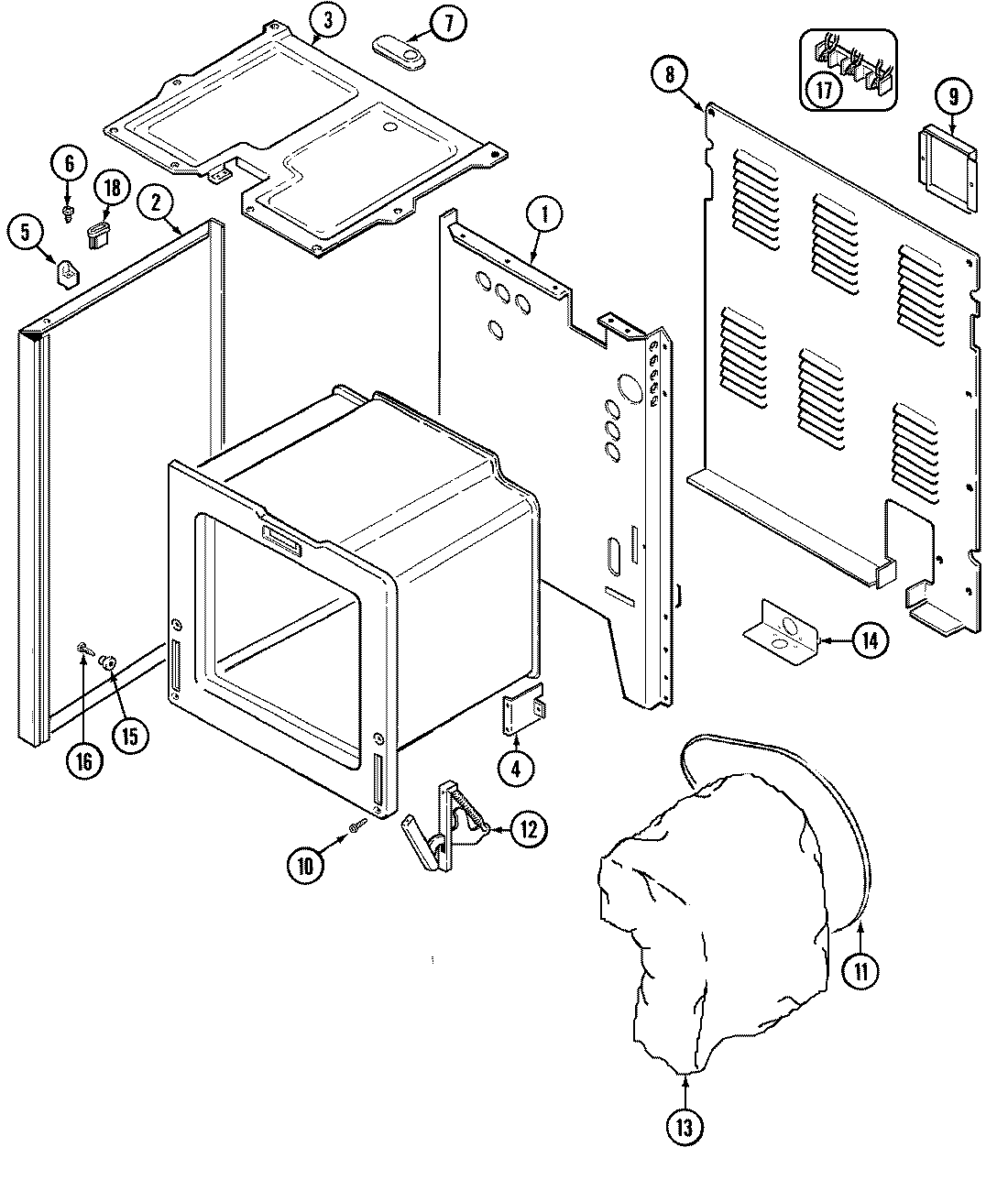

PER4510AAQ 01 – BODY

Products

PositionProduct
1MAY 74001772
1MAY 74002334
2MAY 74004965
3MAY 4011F239-19
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7COVER, VENT
8MAY 74003241
9SCREW
9MAY 4005F427-51
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 74003112
13MAY 4804F039-60
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
17WP7103P027-60 Whirlpool Nut
17SCREW (10ABX1.0-ZN)
17WPW10245259 Whirlpool Terminal Block
18MAY 74001256
