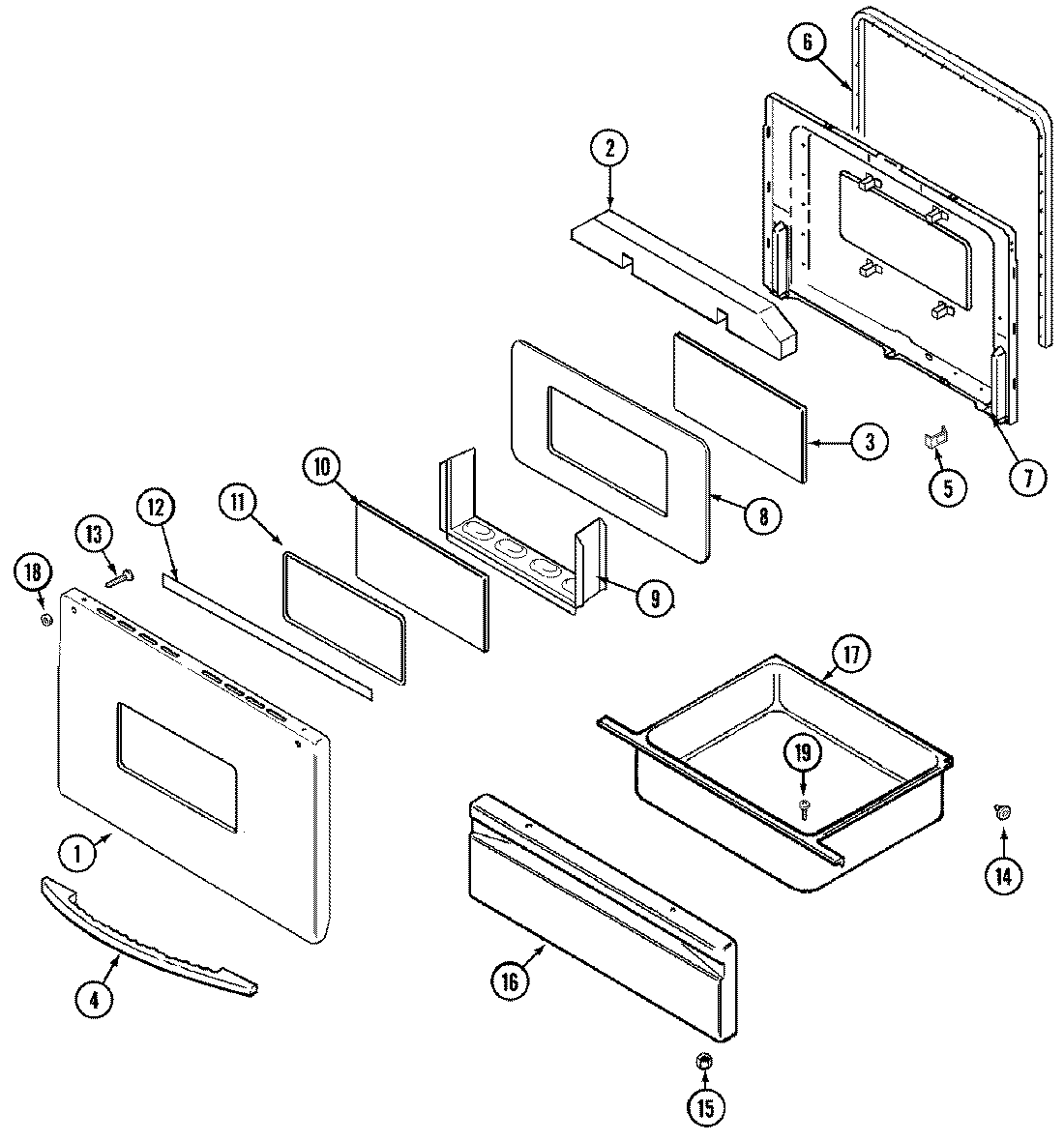

PER4510AAW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 2401F121-71
1SCREW
2MAY 74002458
3MAY 74002459
4WP2411F013-71 Whirlpool Door Handle
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74005097
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002464
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13WP3387230 Whirlpool Screw
14WP74004078 Whirlpool Door Roller
14WP488130 Whirlpool Air Conditioner Nut
14MAY 74004079
15WPW10131078 Whirlpool Nut Assembly
16MAY 74003399
17MAY 74003618
18WP74005058 Whirlpool Spacer Assembly
