PER4510ACW 01 – BODY

PER4510ACW 01 – BODY

Written by

in

PER4510ACW 01 – BODY

Products

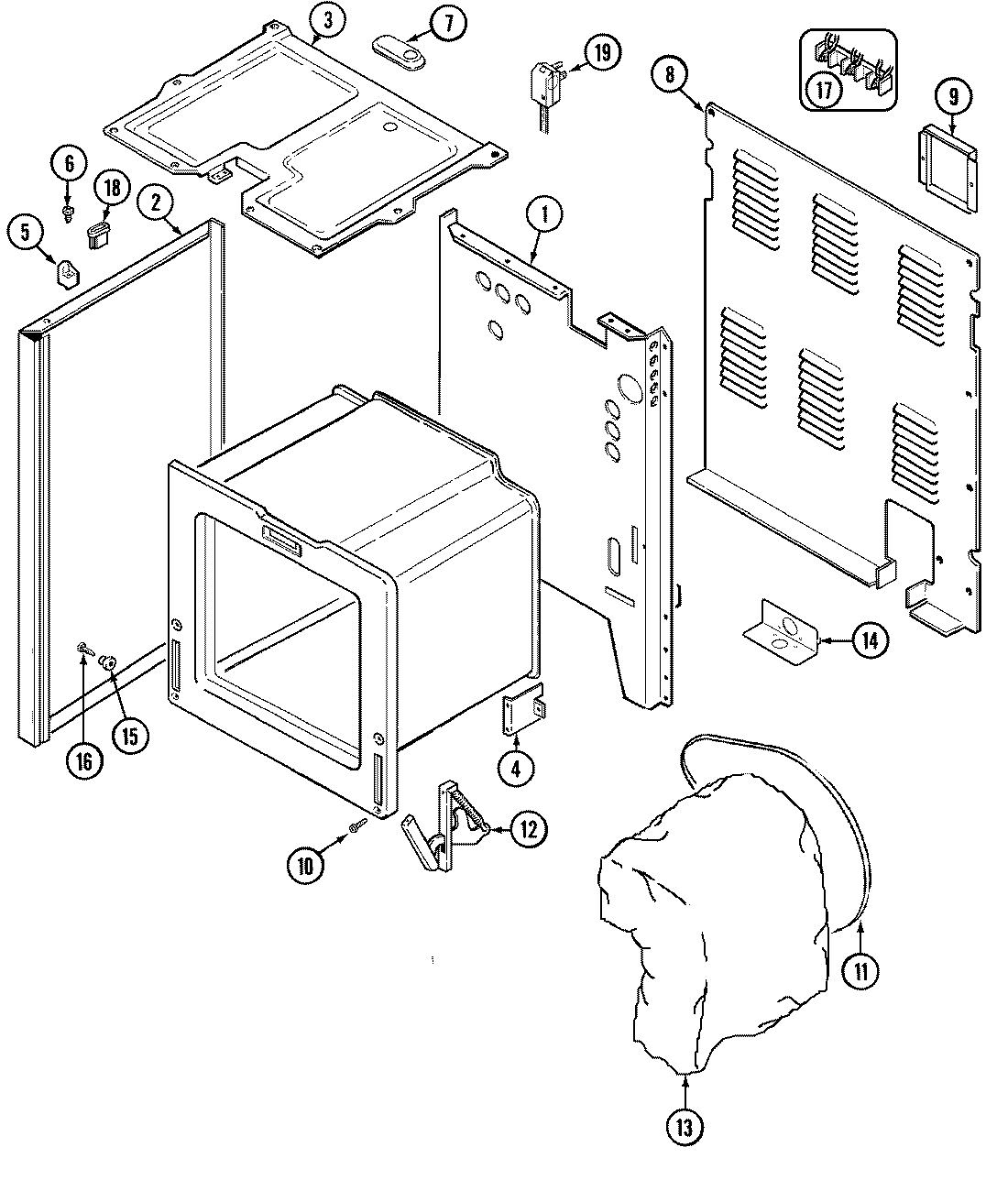

PositionProduct
1MAY 74001772
1MAY 74002334
2MAY 74003236
3MAY 4011F239-19
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
9SCREW
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17MAY 7401P038-60
18MAY 74001256
19MAY 7402P050-60
