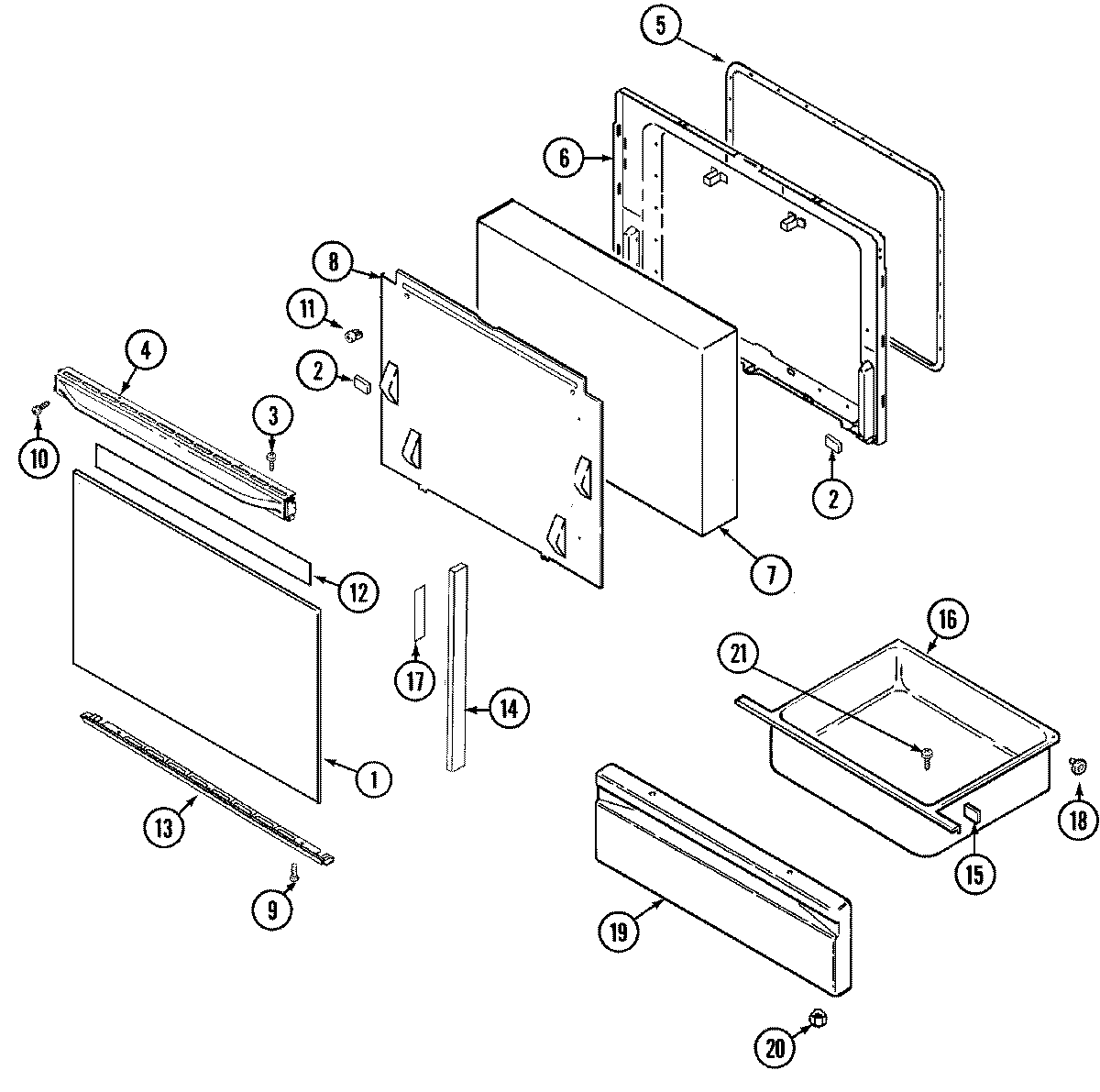

PER5502BAT 03 – DOOR/DRAWER

PER5502BAT 03 – DOOR/DRAWER

Written by

in

PER5502BAT 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P325-60
2WP74005546 Whirlpool RU Spacer
3WP98008545 Whirlpool Screw
4MAY 74003429
5GASKT-DOOR OVEN
6MAY 74003245
7MAY 74001842
8MAY 3601F218-51
11MAY 7103P045-60
11WP3387230 Whirlpool Screw
12TAPE, FOIL (3“ WIDE)
13MAY 74003432
14MAY 74003430
15MAY 8010P085-60
16MAY 71003042
16SCREW
17MAY 74004075
18WP74004078 Whirlpool Door Roller
18SHAFT, STORAGE DRAWER ROLLER
18WP488130 Whirlpool Air Conditioner Nut
19MAY 74005055
20WPW10131078 Whirlpool Nut Assembly
21WP7101P072-60 Whirlpool Screw
