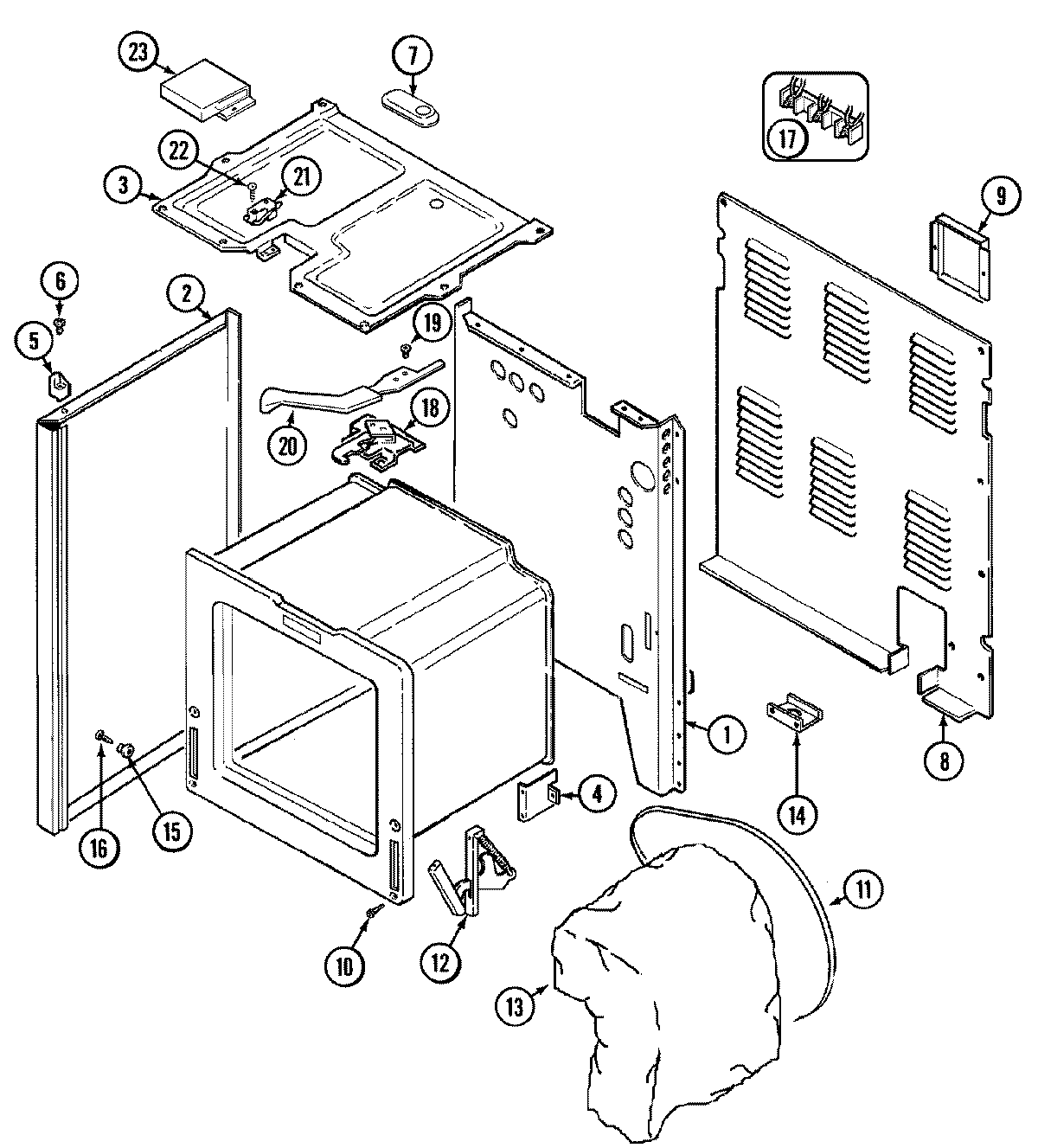

PER5508BAQ 01 – BODY

Products

Position	Product
1	MAY 74006322
1	MAY 74002334
2	MAY 74004965
2	TAPE, FOIL (3“ WIDE)
3	MAY 74006384
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	SCREW (10-24X5/16-NI)
11	MAY 74003385
12	WP74011140 Whirlpool Oven Hinge
13	MAY 74005771
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	SCREW (10ABX1.0-ZN)
17	WP7103P027-60 Whirlpool Nut
17	WPW10245259 Whirlpool Terminal Block
18	MAY 74003380
18	MAY 74003139
18	MAY 74001084
19	SCREW, LEVER
20	MAY 74003006
21	MAY 74003383
21	MAY 74003630
22	MAY 7101P330-60
23	MAY 74003479
