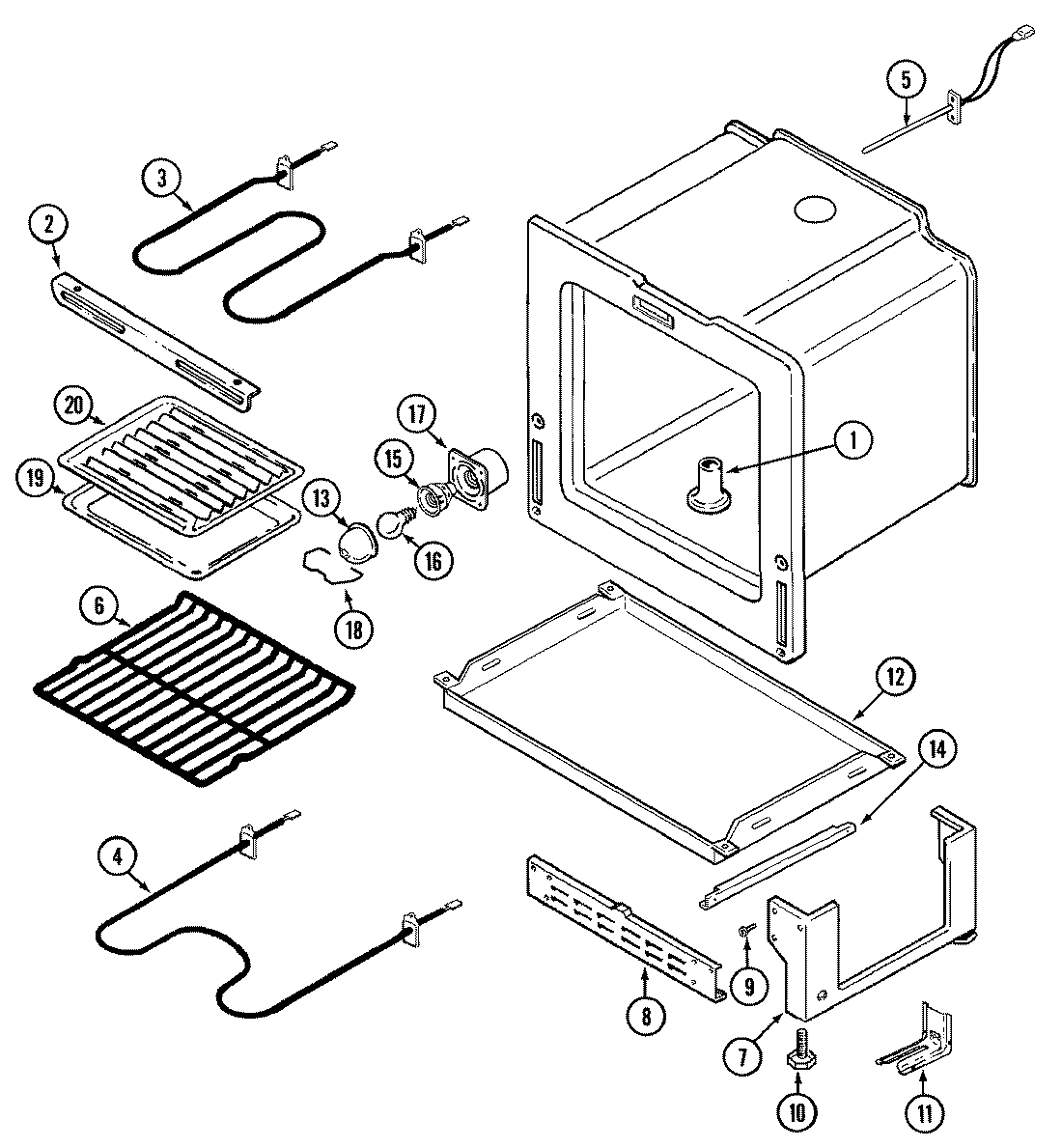

PER5509AAW 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003469
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003393
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	MAY 74002311
12	MAY 74005250
13	MAY 74003389
14	RUNNER, DRAWER
15	SCREW
15	MAY 74003387
16	RANGE ONLY 40W 120V APPL BULB
17	MAY 74003388
18	MAY 74003391
19	MAY Y3401F02019
20	MAY Y3413F01619
