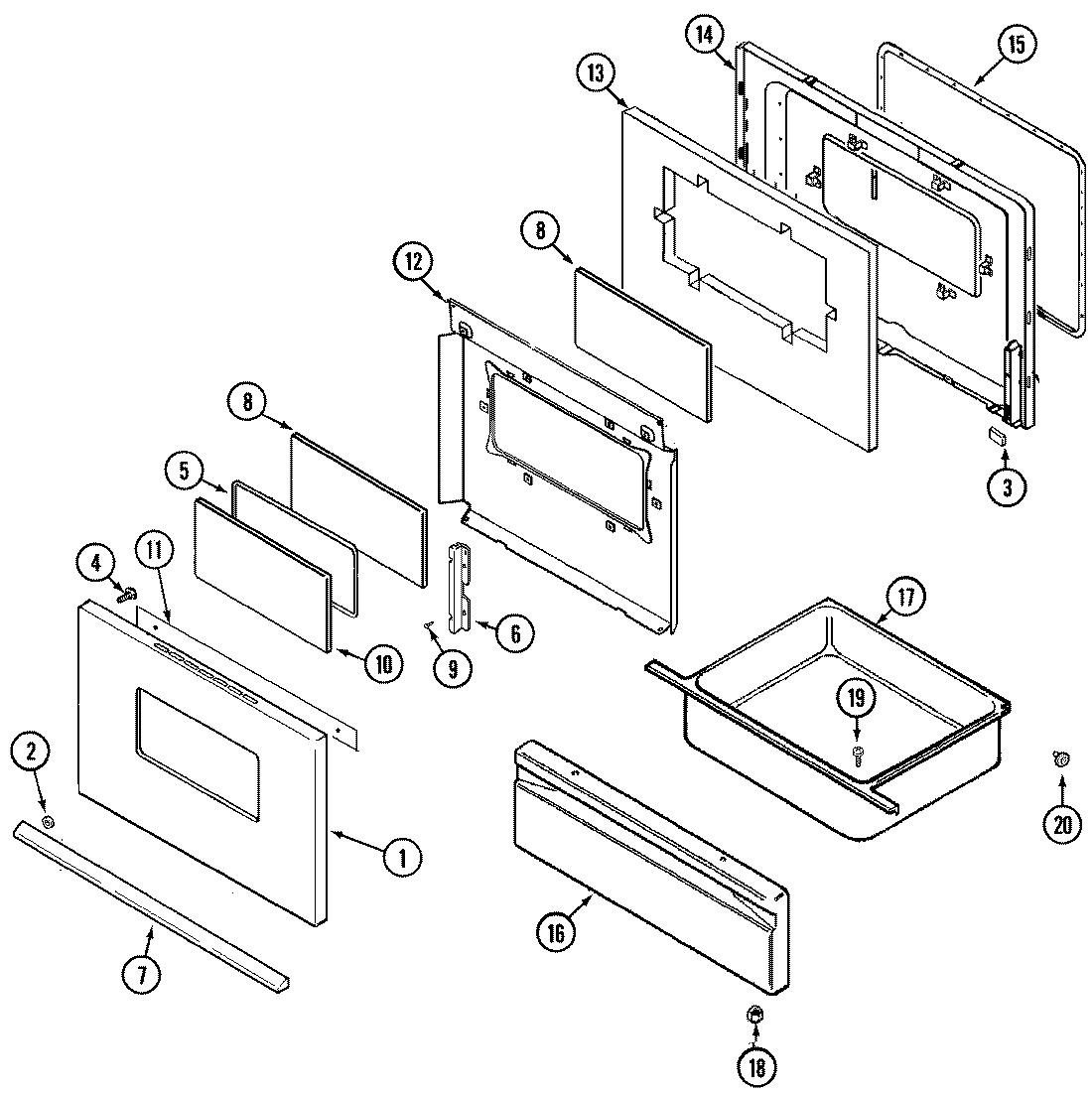

PER5510AAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74005378
1	WP74009541 Whirlpool Screw Assembly
2	WP74005058 Whirlpool Spacer Assembly
3	MAY 8010P085-60
4	WP3387230 Whirlpool Screw
5	GASKET, WINDOW
6	MAY 74003048
7	MAY 74005054
8	GLASS, INNER
9	SCREW
10	MAY 74005377
11	MAY 74003146
12	MAY 74001843
13	MAY 74001842
14	LINING, OVEN DOOR
15	GASKT-DOOR OVEN
16	MAY 74005055
17	MAY 74003618
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74004079
20	WP488130 Whirlpool Air Conditioner Nut
20	WP74004078 Whirlpool Door Roller
