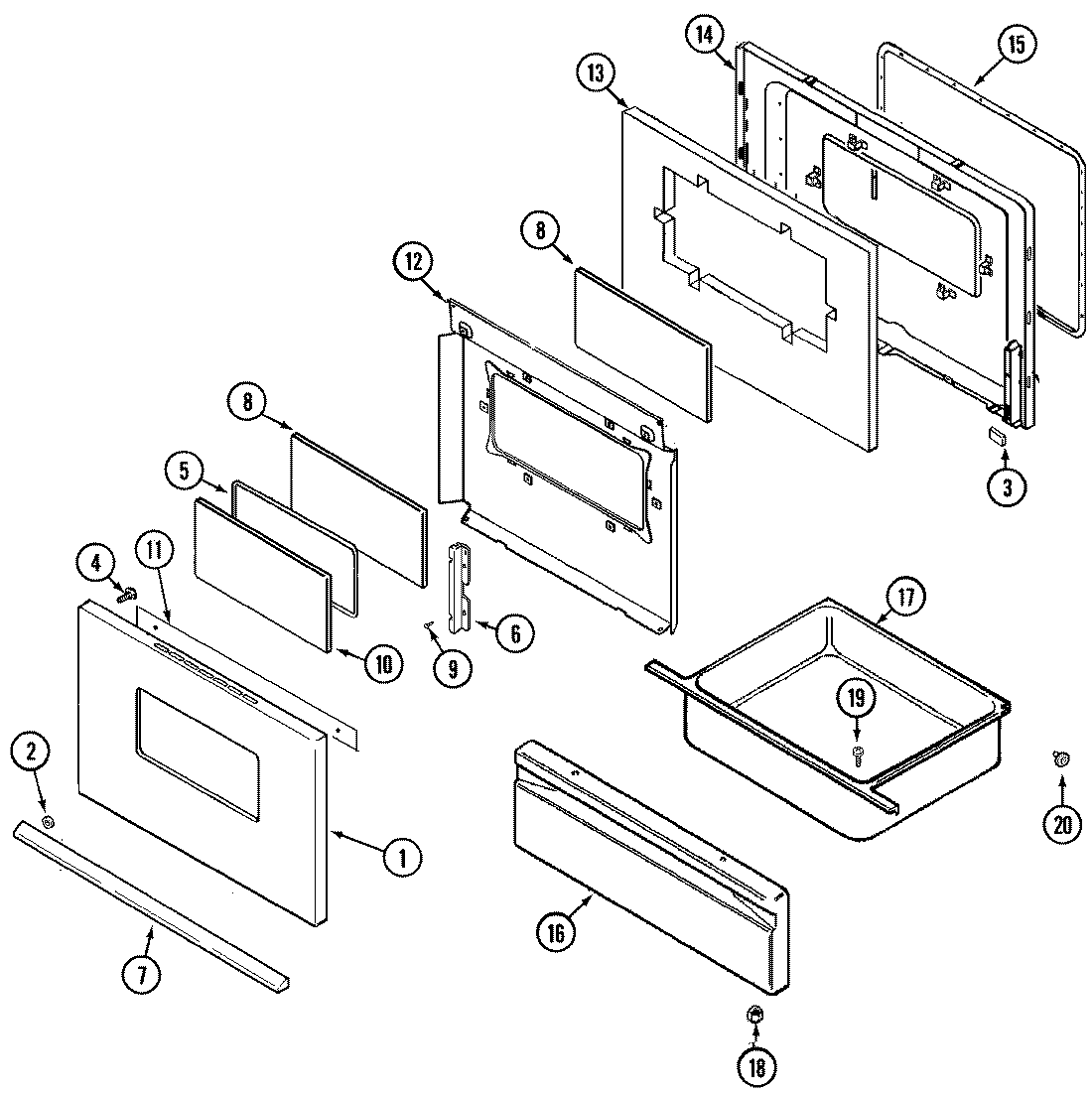

PER5510AAW 03 – DOOR/DRAWER

PER5510AAW 03 – DOOR/DRAWER

Written by

in

PER5510AAW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74005267
1WP98008544 Whirlpool Screw Assembly
2WP74005058 Whirlpool Spacer Assembly
3MAY 8010P085-60
4WP3387230 Whirlpool Screw
5GASKET, WINDOW
6MAY 74003048
7WP2411F013-71 Whirlpool Door Handle
8GLASS, INNER
9SCREW
10MAY 74003049
11MAY 74003146
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16MAY 74003399
17MAY 74003618
18WPW10131078 Whirlpool Nut Assembly
20MAY 74004079
20WP488130 Whirlpool Air Conditioner Nut
20WP74004078 Whirlpool Door Roller
