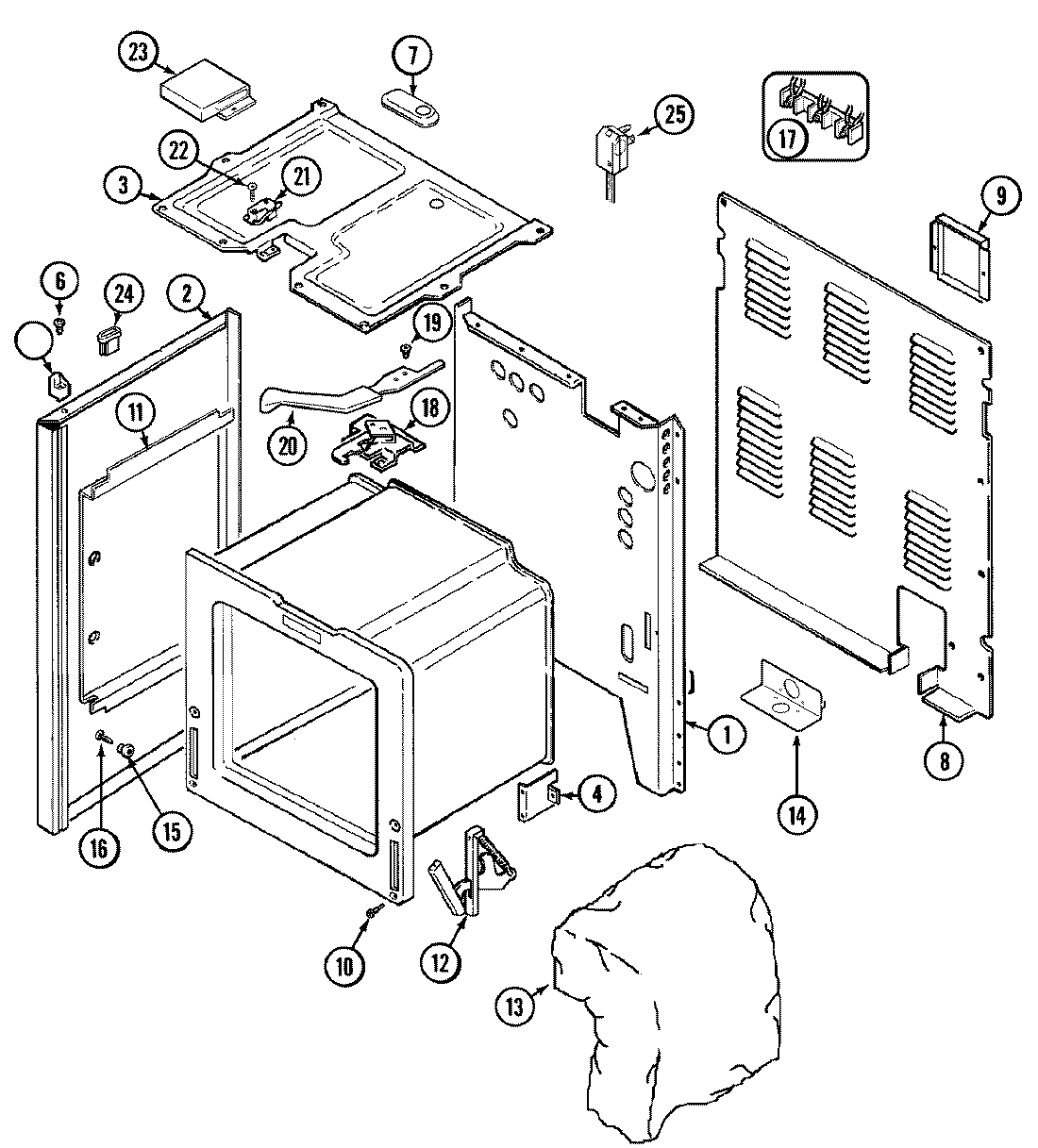

PER5510ACW 01 – BODY

PER5510ACW 01 – BODY

Written by

in

PER5510ACW 01 – BODY

Products

PositionProduct
1MAY 74001772
1MAY 74002334
2TAPE, FOIL (3“ WIDE)
2MAY 74003236
3MAY 74003403
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
10SCREW (10-24X5/16-NI)
11MAY 74003422
12WP74011140 Whirlpool Oven Hinge
13MAY 74003381
13WP74010942 Whirlpool Insulation
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17MAY 7401P038-60
18MAY 74003139
18MAY 74001084
18MAY 74003380
19SCREW, LEVER
20MAY 74002973
21MAY 74003383
21MAY 74003630
22MAY 7101P330-60
23SCREW
23MAY 74003479
24MAY 74001256
25MAY 7402P050-60
