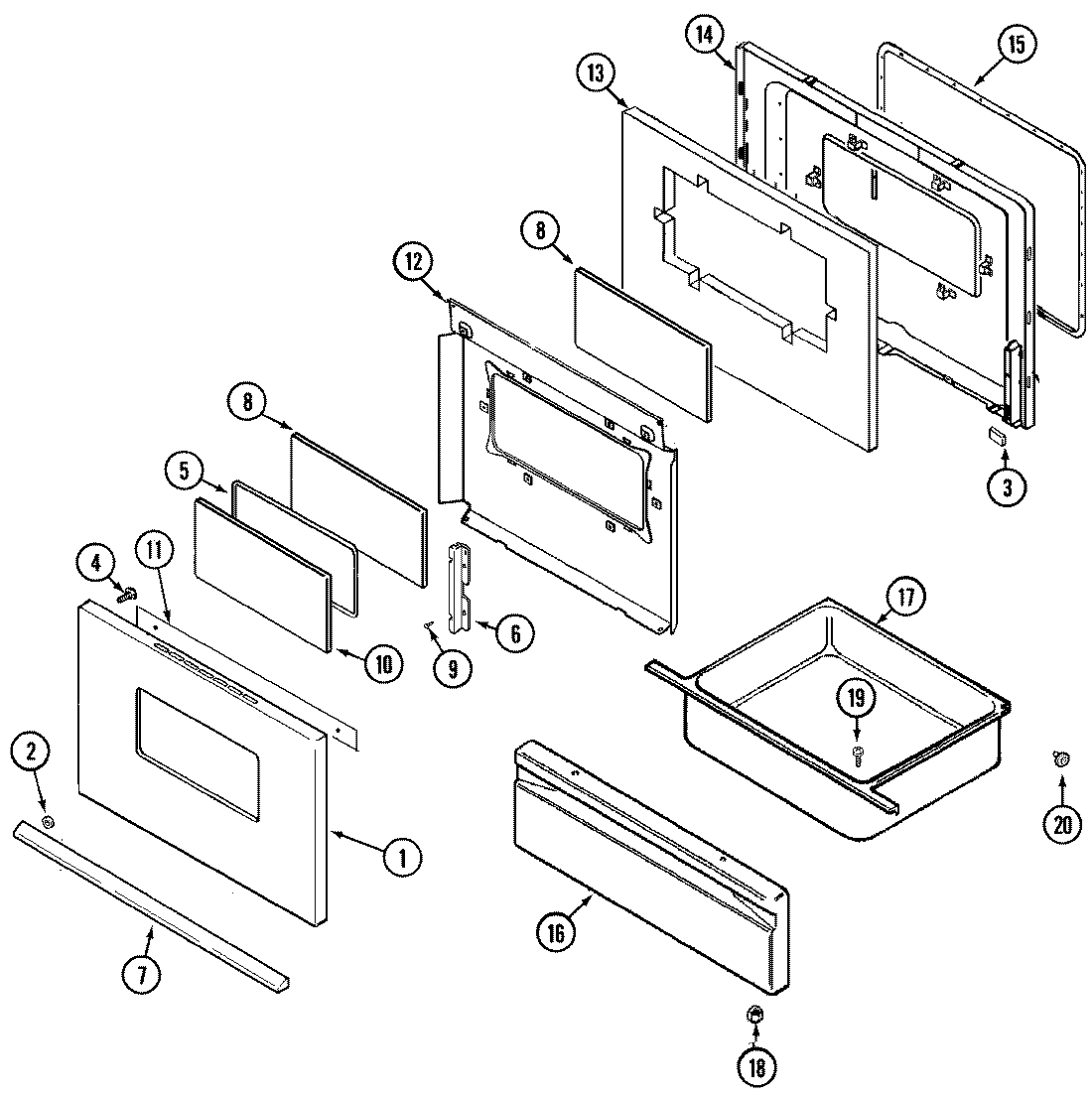

PER5510ACW 03 – DOOR/DRAWER

PER5510ACW 03 – DOOR/DRAWER

Written by

in

PER5510ACW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74005267
1WP98008544 Whirlpool Screw Assembly
2WP74005058 Whirlpool Spacer Assembly
3MAY 8010P085-60
4WP3387230 Whirlpool Screw
5GASKET, WINDOW
6MAY 74003048
7WP2411F013-71 Whirlpool Door Handle
8GLASS, INNER
9SCREW
10MAY 74003049
11MAY 74003146
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
16MAY 74003399
17MAY 71003042
18WPW10131078 Whirlpool Nut Assembly
20MAY 74004079
20WP74004078 Whirlpool Door Roller
20WP488130 Whirlpool Air Conditioner Nut
