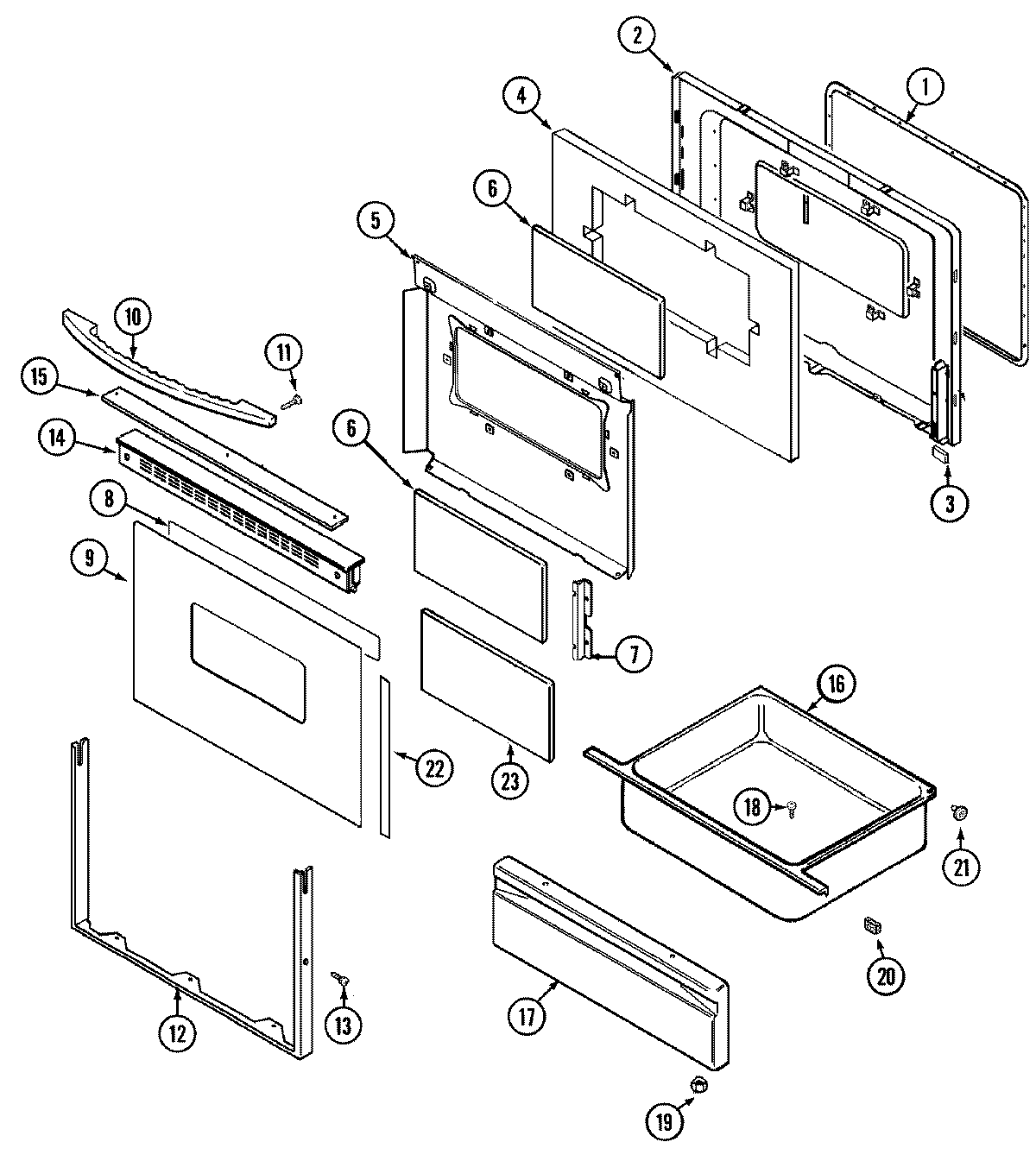

PER5515BCQ 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	NUT, SNAP (ROUND-BLK)
2	LINING, OVEN DOOR
2	NUT, SNAP (ROUND-WHT)
2	MAY 74003643
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74006396
10	MAY 74006377
11	MAY 74006394
11	MAY 74001521
12	MAY 74004975
14	MAY 74006378
14	SCREW
15	MAY 74004978
15	WP74009541 Whirlpool Screw Assembly
16	MAY 71003042
17	MAY 74005055
19	WPW10131078 Whirlpool Nut Assembly
20	WP74005546 Whirlpool RU Spacer
21	WP488130 Whirlpool Air Conditioner Nut
21	MAY 74003566
22	MAY 74003660
23	MAY 74002002
