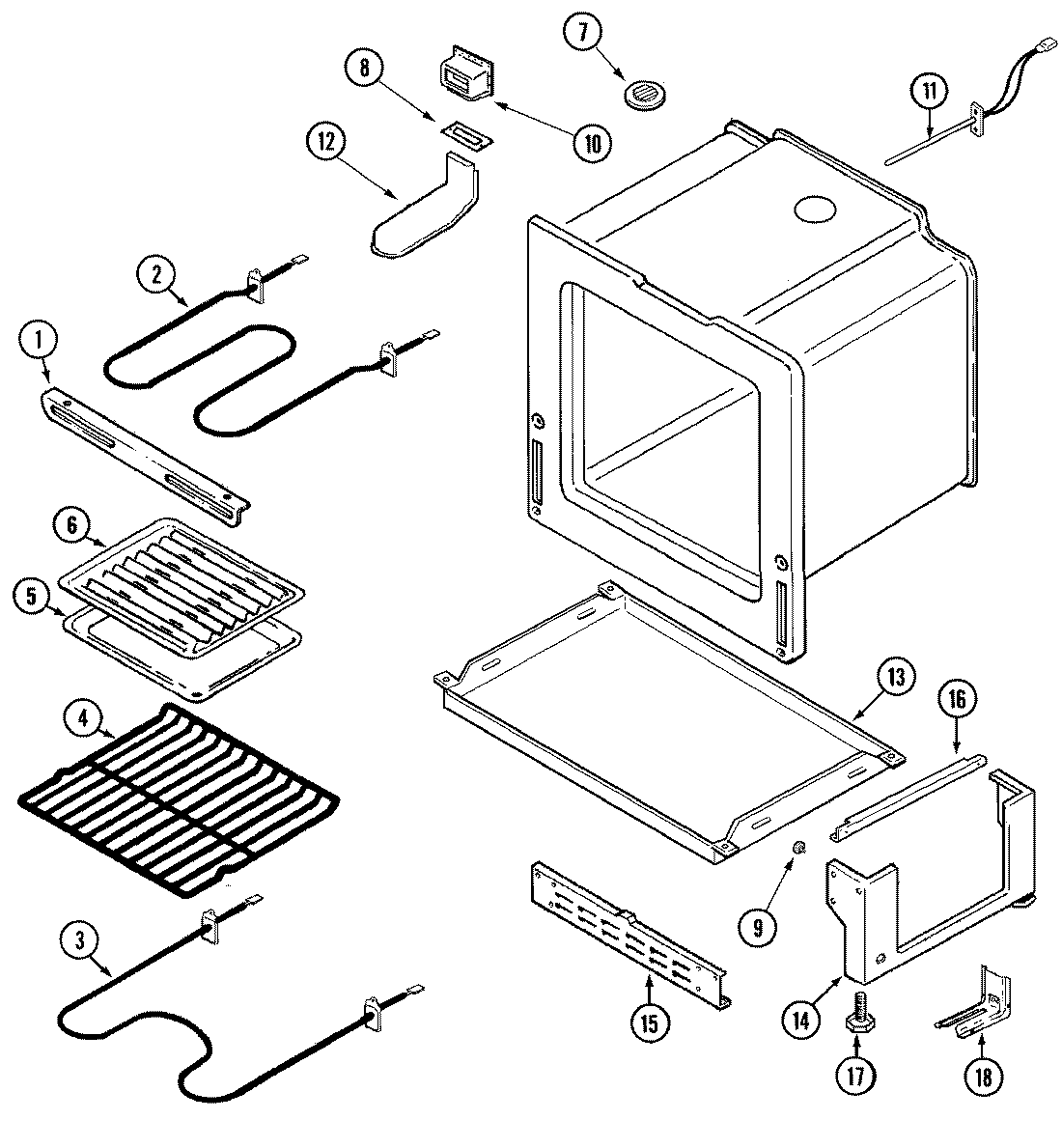

PER5702BAH 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP74010750 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003633
8	MAY 74003285
9	SHAFT, STORAGE DRAWER ROLLER
9	WP74004078 Whirlpool Door Roller
9	74005230 Whirlpool Oven Lock Nut (8-32)
10	MAY 3826W014-45
11	12001656 Whirlpool Range Oven Temperature Sensor
12	MAY 74003394
13	MAY 74005250
14	MAY 74006325
15	MAY 4020F001-80
16	RUNNER, DRAWER
16	SCREW
17	W11665456 Whirlpool Range Level Foot
18	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
18	WP7101P485-60 Whirlpool Anchor Tip
