PER5702BAT 04 – OVEN/BASE

PER5702BAT 04 – OVEN/BASE

Written by

in

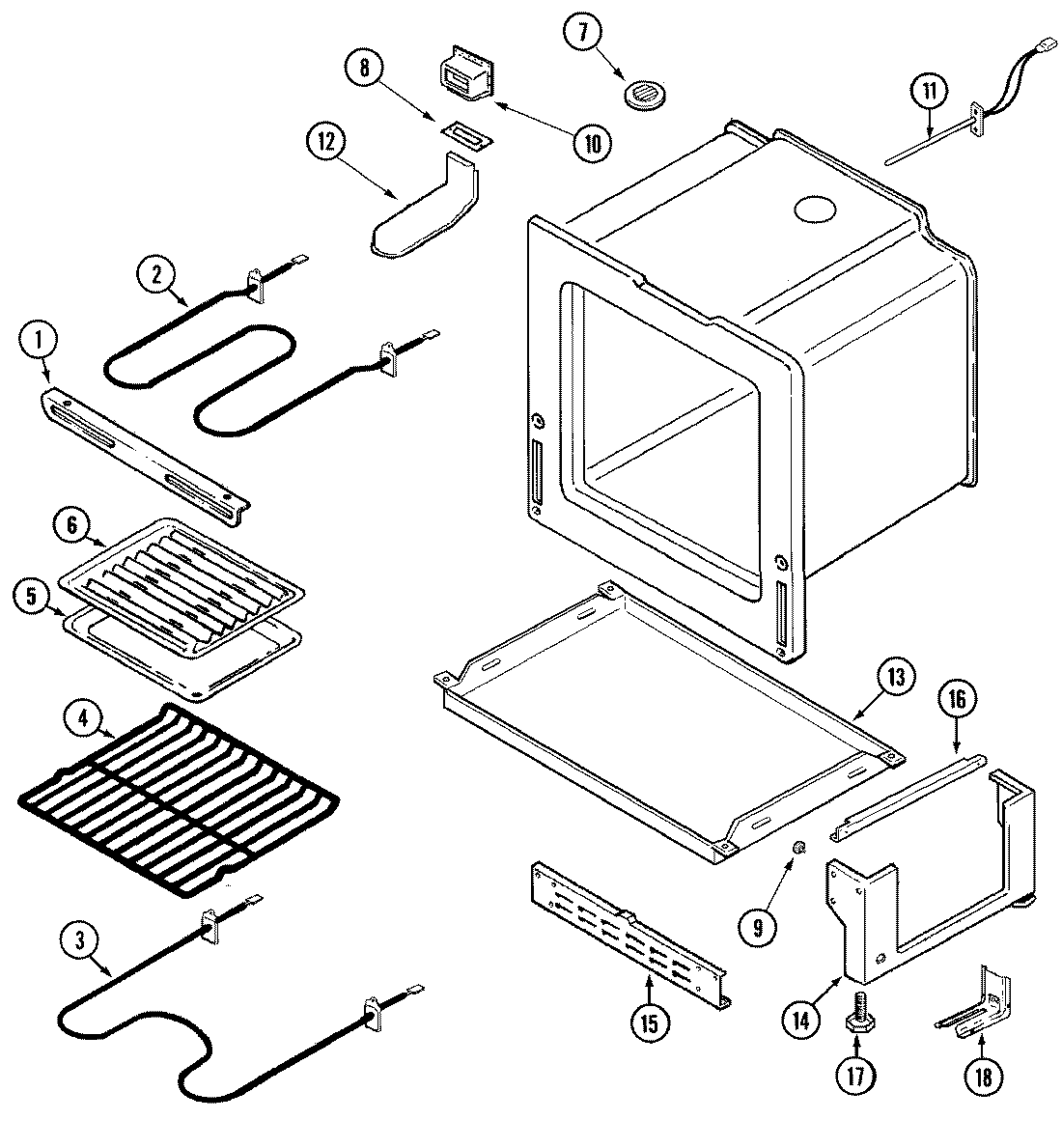

PER5702BAT 04 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
3WP74010750 Whirlpool Oven Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7MAY 74003633
8MAY 74003285
9SHAFT, STORAGE DRAWER ROLLER
9WP74004078 Whirlpool Door Roller
974005230 Whirlpool Oven Lock Nut (8-32)
10MAY 3826W014-45
1112001656 Whirlpool Range Oven Temperature Sensor
12MAY 74003394
13MAY 74005250
14MAY 74006325
15MAY 4020F001-80
16RUNNER, DRAWER
16SCREW
17W11665456 Whirlpool Range Level Foot
18WP3801F656-51 Whirlpool Range Anti-Tip Bracket
18WP7101P485-60 Whirlpool Anchor Tip
