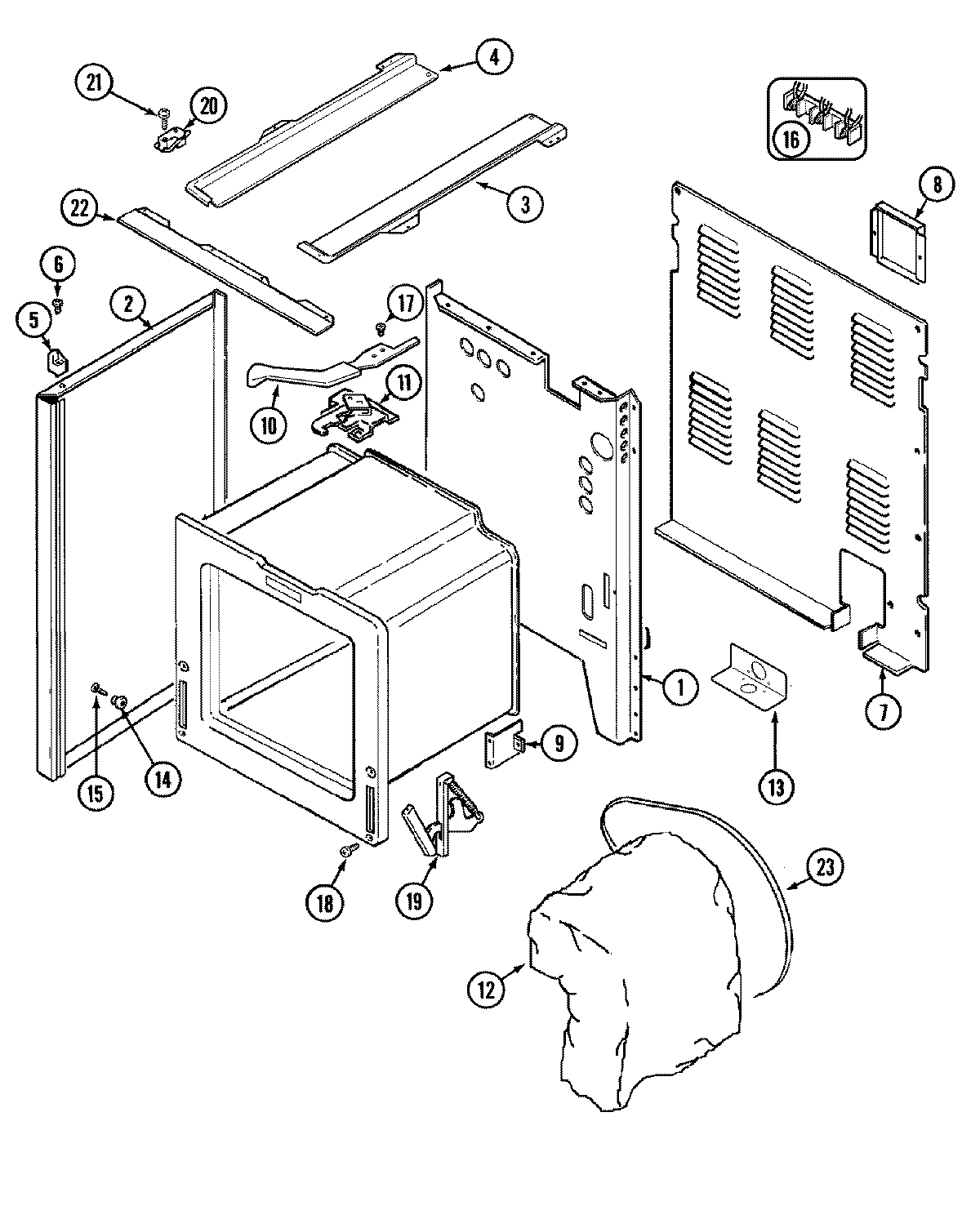

PER5705BAH 01 – BODY

Products

Position	Product
1	MAY 74006322
2	MAY 74003236
2	TAPE, FOIL (3“ WIDE)
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 74003241
8	MAY 4005F427-51
9	SUPPORT,OVEN REAR
10	MAY 74003005
11	MAY 74003380
11	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11	MAY 74001084
11	MAY 12001944
11	MAY 74006342
12	MAY 74005771
12	WP74010942 Whirlpool Insulation
13	W10190166 Whirlpool Service Bracket
13	SCREW
14	MAY 8004P024-60
15	W11693756 Whirlpool Screw Assembly
15	MAY 74001449
16	WP7103P027-60 Whirlpool Nut
16	WPW10245259 Whirlpool Terminal Block
16	SCREW (10ABX1.0-ZN)
17	SCREW, LEVER
18	SCREW (10-24X5/16-NI)
19	WP74011140 Whirlpool Oven Hinge
20	MAY 74004031
20	MAY 74003383
21	MAY 7101P330-60
22	MAY 74003384
23	MAY 74003385
