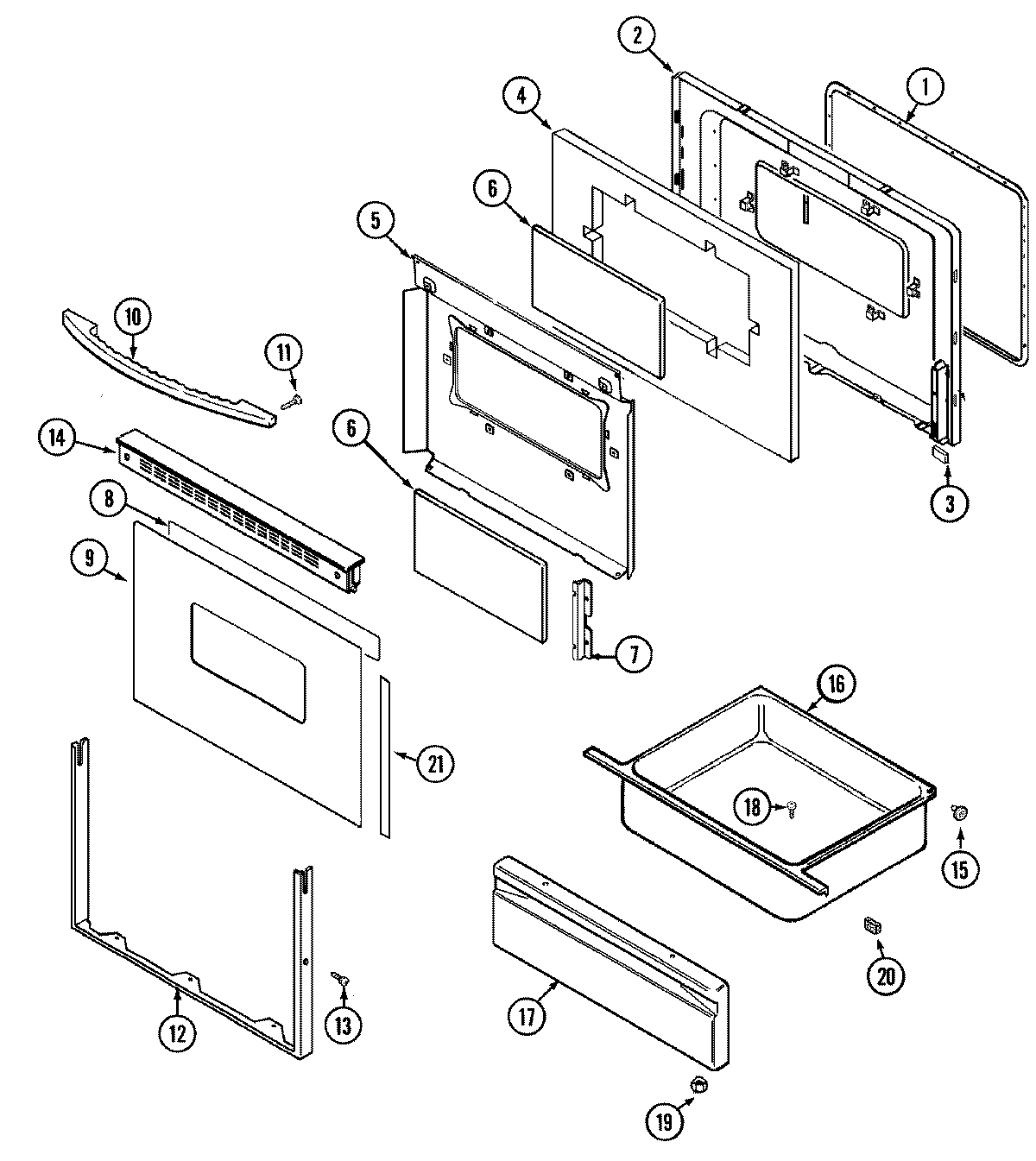

PER5705BAT 03 – DOOR/DRAWER

PER5705BAT 03 – DOOR/DRAWER

Written by

in

PER5705BAT 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-WHT)
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006287
10MAY 74006286
11MAY 74001521
11MAY 74006394
12MAY 7706P309-60
13WP98008545 Whirlpool Screw
14MAY 74003889
14SCREW
15SHAFT, STORAGE DRAWER ROLLER
15WP74004078 Whirlpool Door Roller
15WP488130 Whirlpool Air Conditioner Nut
16MAY 71003042
17MAY 74005055
19WPW10131078 Whirlpool Nut Assembly
20WP74005546 Whirlpool RU Spacer
21MAY 74003660
