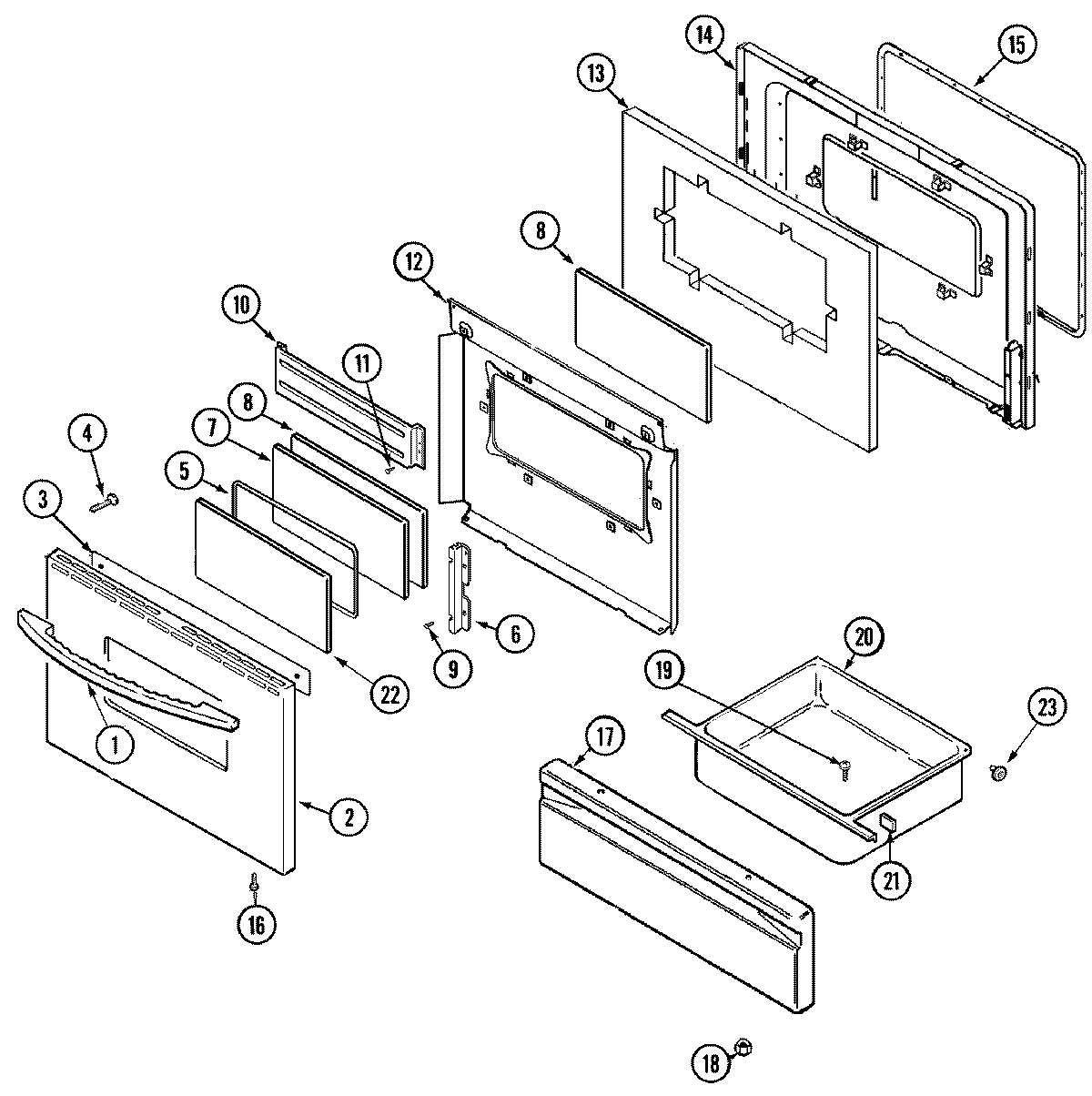

PER5708BAW 03 – DOOR/DRAWER

PER5708BAW 03 – DOOR/DRAWER

Written by

in

PER5708BAW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74006291
2MAY 74006471
3MAY 74003146
4MAY 74001521
4MAY 74006295
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
9SCREW
10MAY 74005458
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16WP98008544 Whirlpool Screw Assembly
17MAY 74003399
18WPW10131078 Whirlpool Nut Assembly
20MAY 71003042
21WP74005546 Whirlpool RU Spacer
22MAY 74003049
23WP74004078 Whirlpool Door Roller
23WP488130 Whirlpool Air Conditioner Nut
23SHAFT, STORAGE DRAWER ROLLER
