PER5710BAC 04 – DOOR/DRAWER (BAC) – Aparts

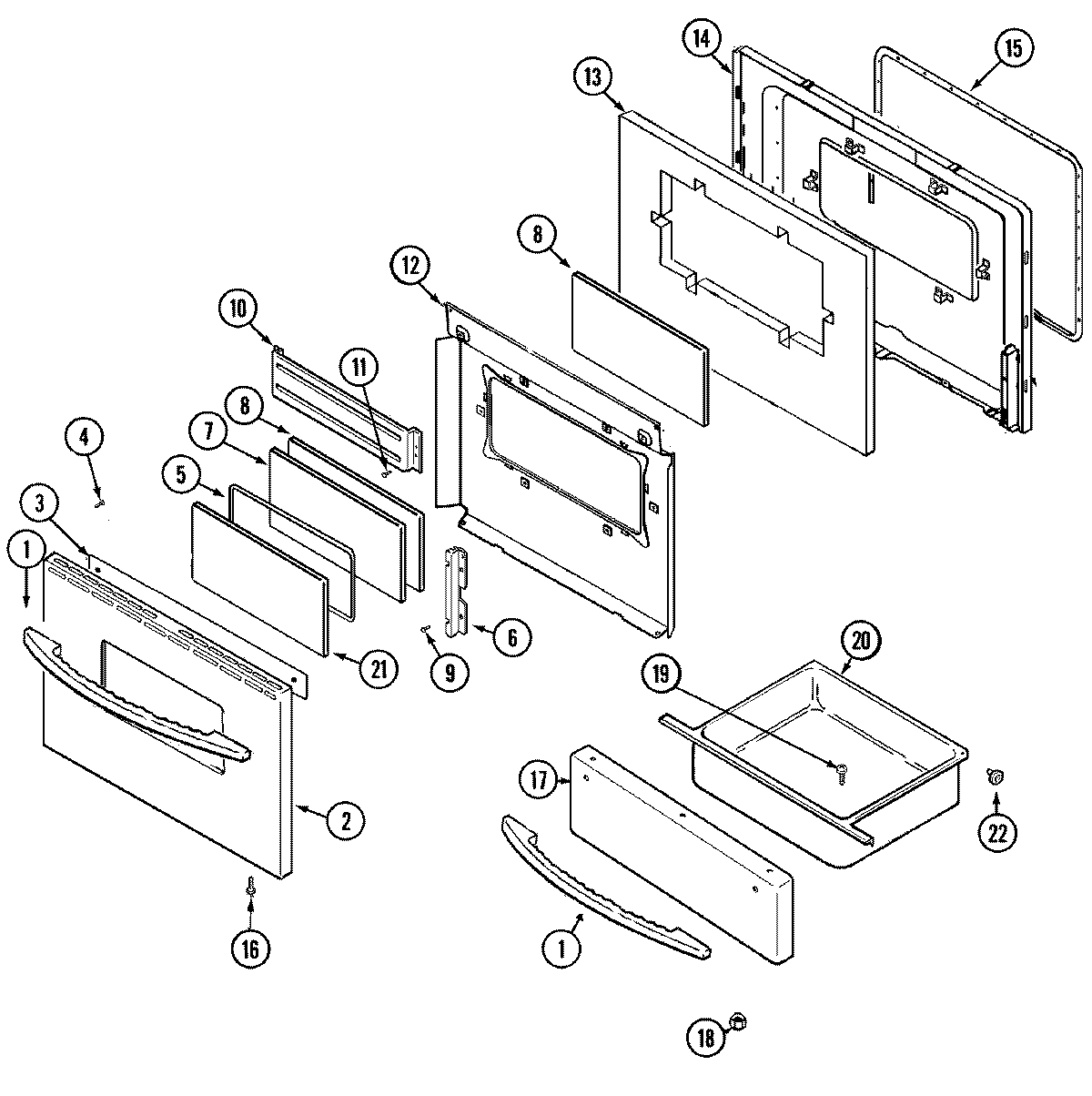

PER5710BAC 04 – DOOR/DRAWER (BAC)

Products

Position	Product
1	MAY 74006294
2	MAY 74006664
2	MAY 74003643
3	MAY 74003146
4	MAY 74001521
5	MAY 7201P017-60
6	MAY 74003048
7	MAY 74002002
8	MAY 74001841
10	MAY 74005458
11	MAY 7101P356-60
12	MAY 74001843
13	MAY 74001842
14	LINING, OVEN DOOR
15	GASKT-DOOR OVEN
16	SCREW
17	MAY 74006295
17	MAY 74006665
18	WPW10131078 Whirlpool Nut Assembly
19	WP7101P072-60 Whirlpool Screw
20	MAY 71003042
21	MAY 74001072
22	SHAFT, STORAGE DRAWER ROLLER
22	MAY 74003566
22	74005230 Whirlpool Oven Lock Nut (8-32)
