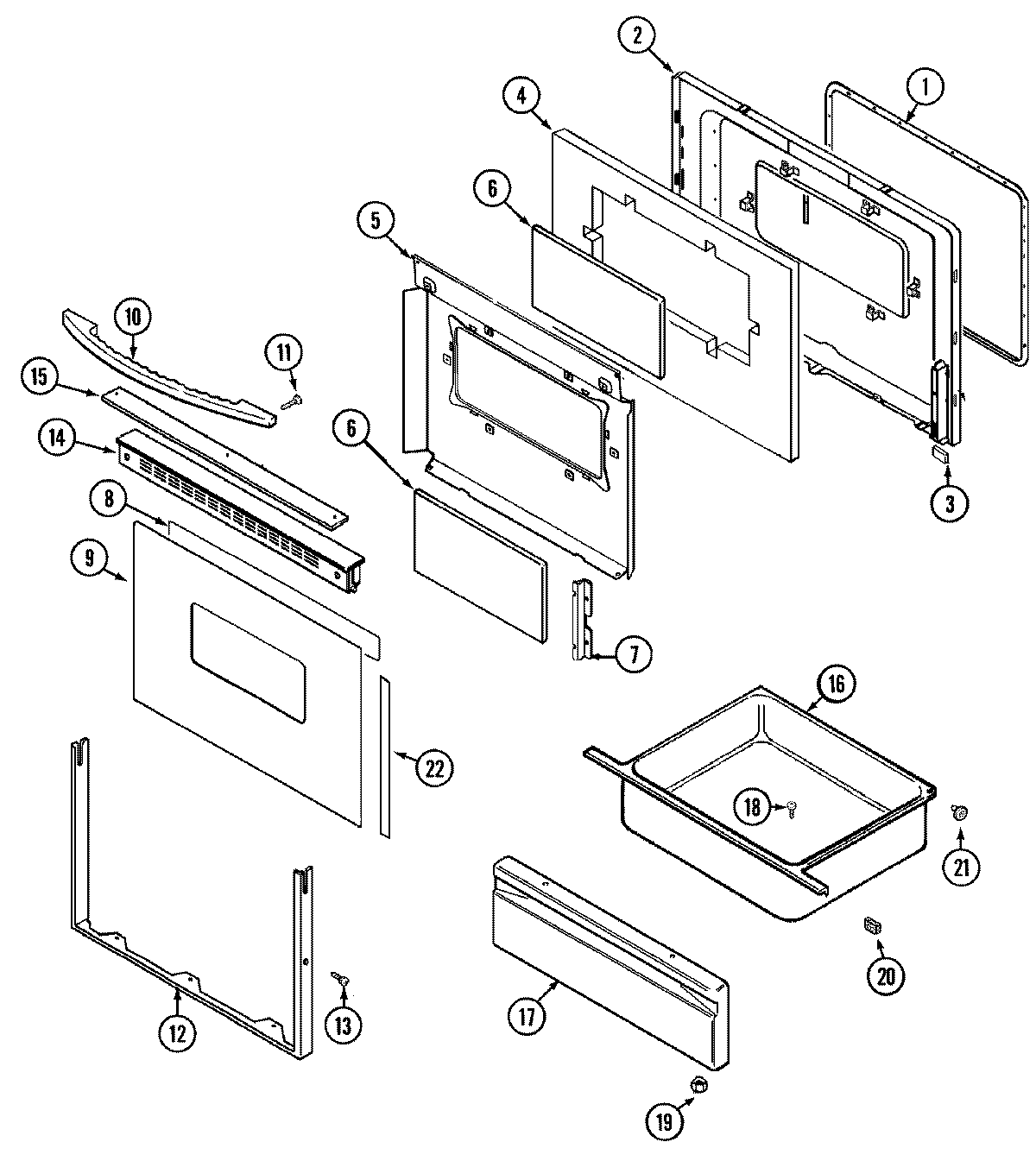

PER5715BAW 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	NUT, SNAP (ROUND-WHT)
2	MAY 74003643
2	LINING, OVEN DOOR
2	NUT, SNAP (ROUND-BLK)
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74006395
10	WP74006381 Whirlpool Door Handle
11	MAY 74006394
11	MAY 74001521
12	MAY 7706P310-60
14	SCREW
14	MAY 74003864
15	WP98008544 Whirlpool Screw Assembly
15	MAY 7728P094-60
16	MAY 71003042
17	MAY 74003399
19	74005230 Whirlpool Oven Lock Nut (8-32)
20	WP74005546 Whirlpool RU Spacer
21	WP488130 Whirlpool Air Conditioner Nut
21	SHAFT, STORAGE DRAWER ROLLER
21	WP74004078 Whirlpool Door Roller
22	MAY 74003660
