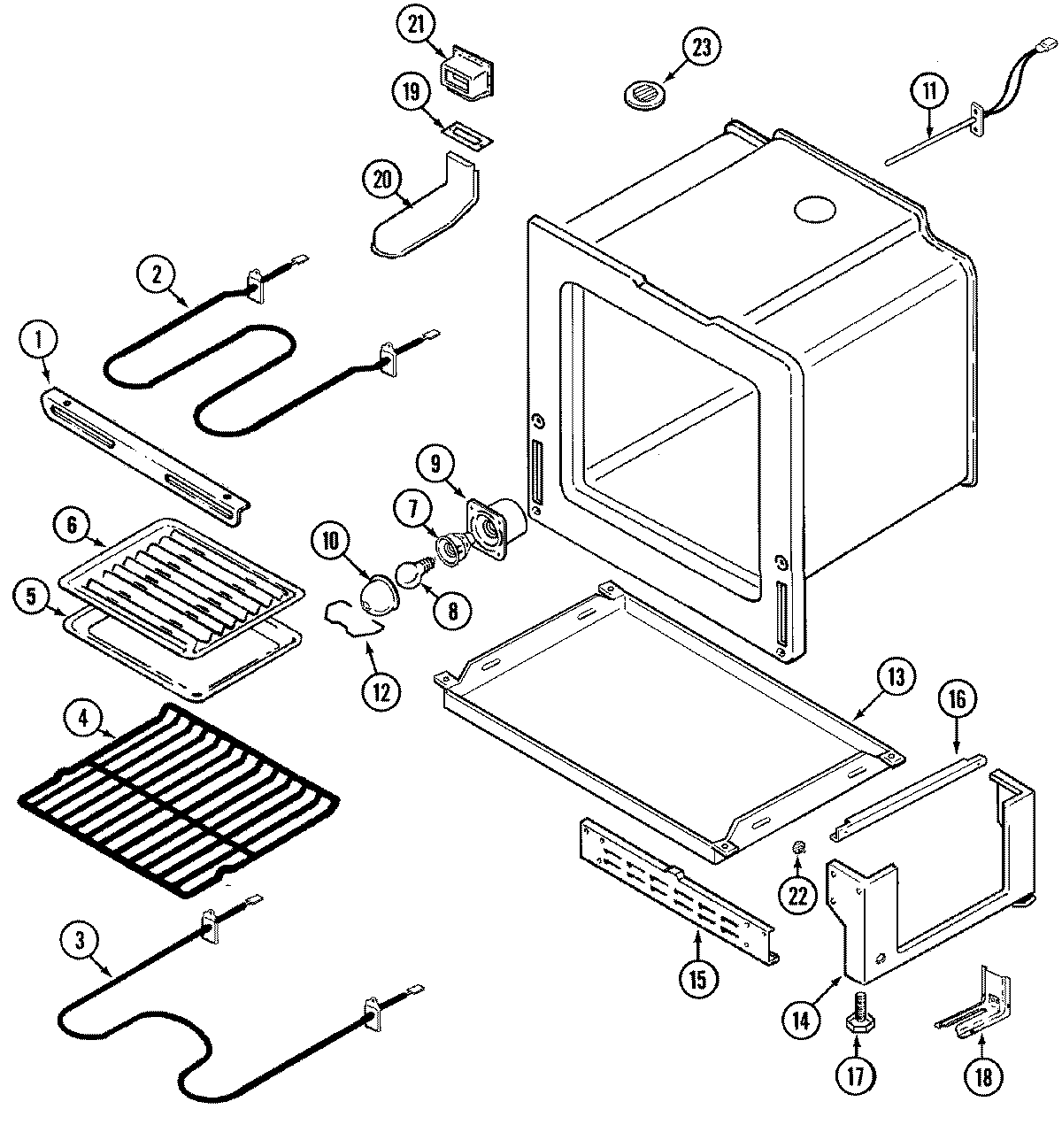

PER5715BAW 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP74010750 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003387
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 74003388
10	MAY 74003389
11	12001656 Whirlpool Range Oven Temperature Sensor
12	MAY 74003391
13	MAY 74005250
14	MAY 74006325
15	MAY 4020F001-80
16	RUNNER, DRAWER
17	W11665456 Whirlpool Range Level Foot
18	WP7101P485-60 Whirlpool Anchor Tip
18	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
19	MAY 74003285
20	MAY 74003394
21	SCREW
21	MAY 74004534
22	WP488130 Whirlpool Air Conditioner Nut
22	SHAFT, STORAGE DRAWER ROLLER
22	WP74004078 Whirlpool Door Roller
23	MAY 74003633
