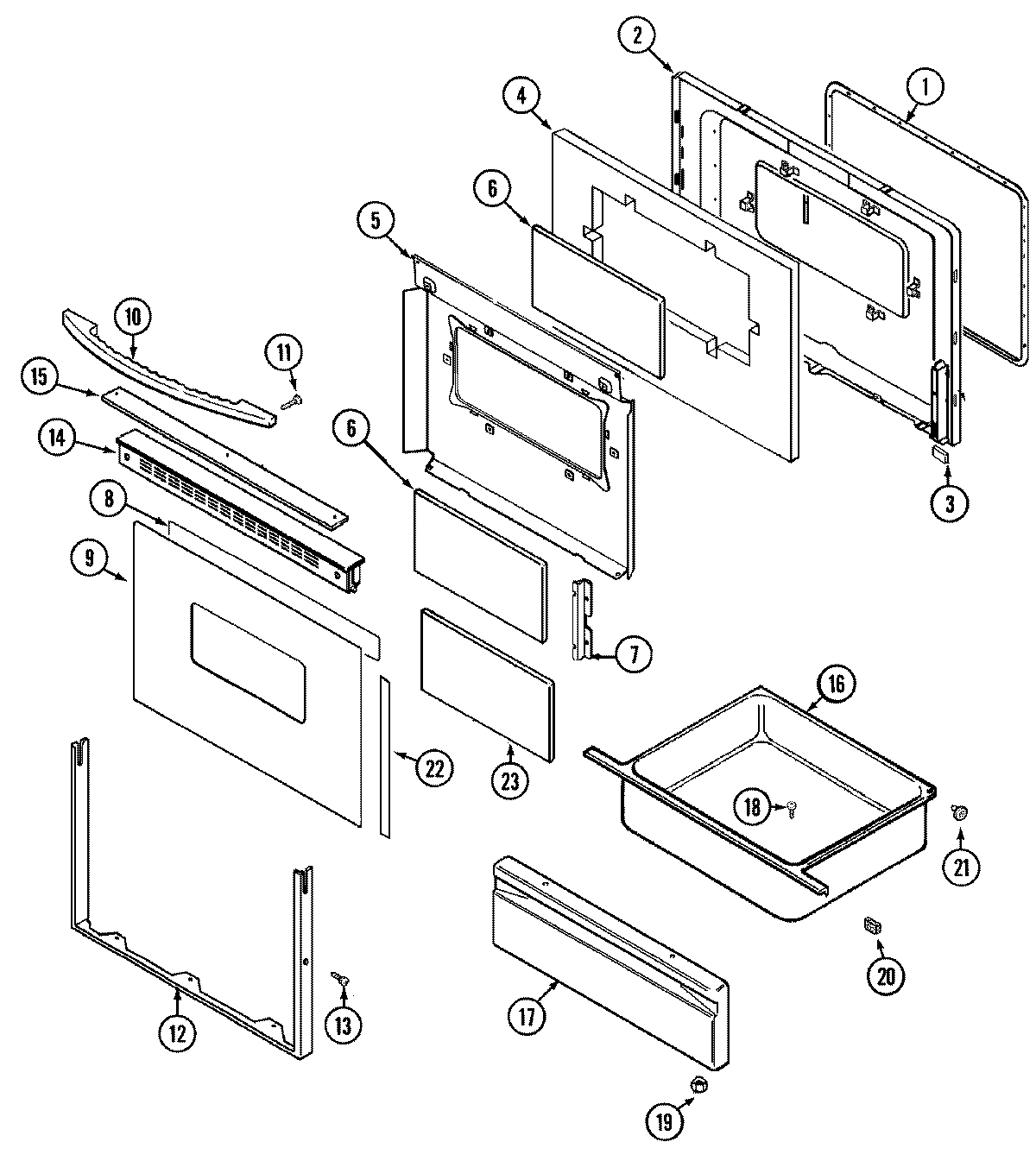

PER5715BCQ 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2NUT, SNAP (ROUND-BLK)
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-WHT)
2MAY 74003643
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006396
10MAY 74006377
11MAY 74006394
11MAY 74001521
12MAY 74004975
14MAY 74006378
14SCREW
15MAY 74004978
15WP74009541 Whirlpool Screw Assembly
16MAY 71003042
17MAY 74005055
19WPW10131078 Whirlpool Nut Assembly
20WP74005546 Whirlpool RU Spacer
21WP488130 Whirlpool Air Conditioner Nut
21MAY 74003566
22MAY 74003660
23MAY 74002002
